Paving plate for terrace pedestal - YEED (ex Rinno)

YEED (Ex Rinno)

Reference :

Available stock

The paving plate makes it possible to lay the tiles against a wall and to carry out the lateral closure of the terrace. Thus, the pedestals under the structure are hidden. Only compatible with YEED brand pedestals from 40/60 mm. The paving plate clips directly onto the head of the paving pedestal. More details

shipment in 24/48h
Your orders are shipped
Customer service
Our teams are at your disposal from Monday to Friday from 9am to 6pm
D.T.U. Standards
All our products comply with current standards
secure payment
Our site is protected by an SSL certificate
the guarantees plots-discount.com

Paving plate for tiled terrace – YEED (Ex Rinno)

Laying a paving terrace on pedestals requires a few precautions to be taken during installation. The pavings on pedestals are quick and easy to install and do not require glue or joints. Finish your paving terrace using a few essential accessories such as the paving plate for pedestals. This accessory allows the installation of the pedestals on the edge of the facade and also to carry out the lateral closing of the terrace, so as to conceal the pedestals.

Use of the paving plate for pedestals on a tiled terrace

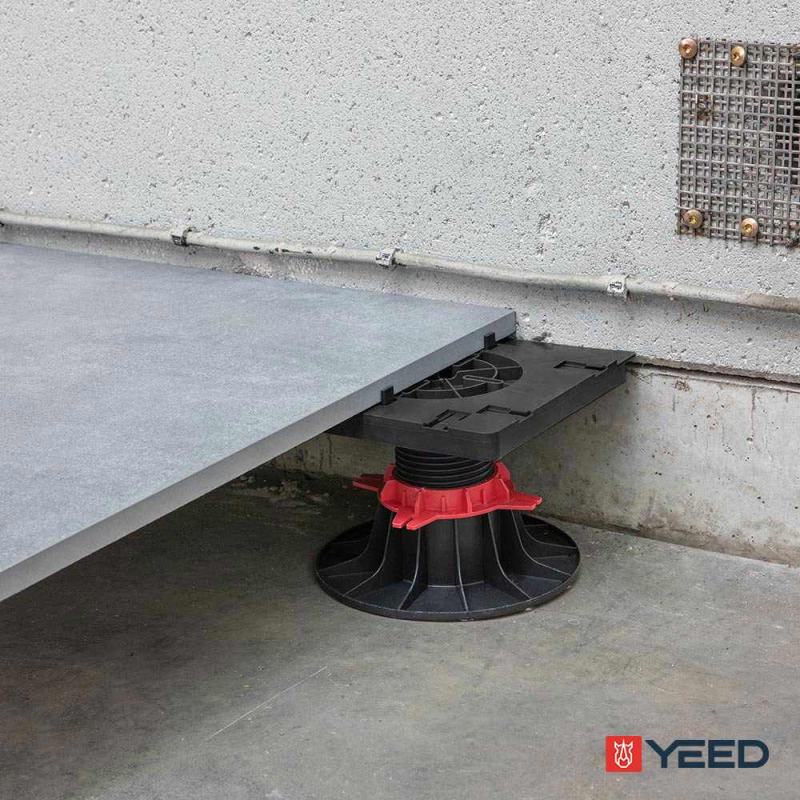

The paving plate is placed directly on the head of the pedestal and the height of the pedestal is adjusted using the adjustment ring. Laying a paving terrace requires: 4 pedestals per paving and a paving plate for each tile located around the periphery of the terrace or against a wall. The installation is done in a few steps:

  1. Arrange the pedestals on the ground at a distance equal to the dimension of the tile paving
  2. Add the pavingplates for pedestals at the edge of the terrace and on the pedestals located against a wall and adjust the height of the pedestals
  3. Lay the tiling on pedestals, 4 lugs hold it in place
  4. Check that the surface is level using a spirit level
  5. Then finish the paving terrace: border, riser, edge and counter facade


The finishes of the tiled terrace on pedestal are achieved using two essential accessories:

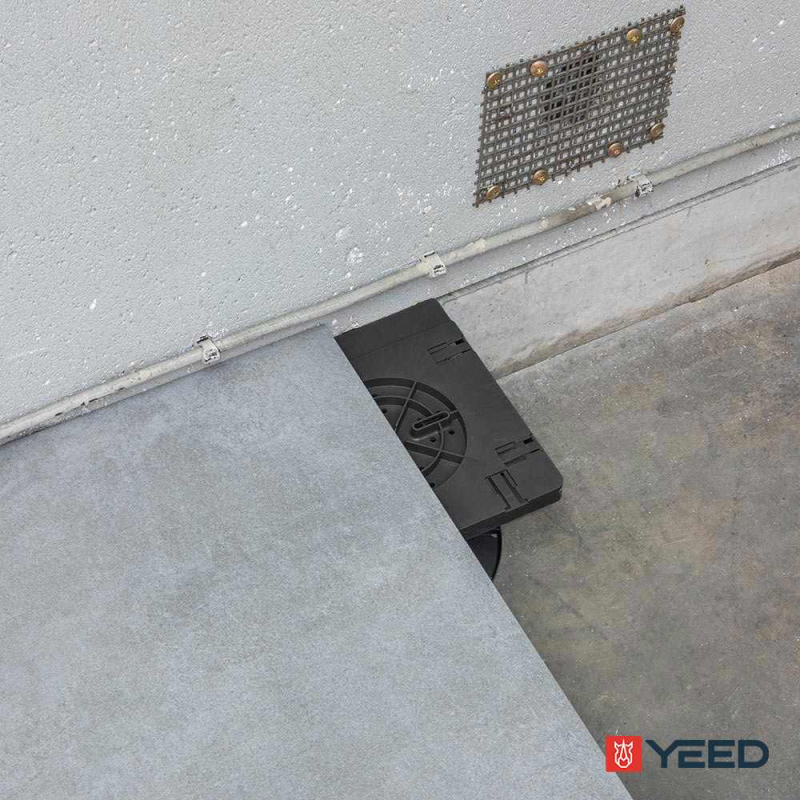

  • The paving plate for pedestal allows the laying of tiles on the "against facade" and also for the edges of the terrace. Thus, thanks to this accessory for paving pedestal, you can easily lay your tiles on pedestal against a wall and also close the periphery of the terrace.
  • The cladding support allows it to create the riser of the tiled terrace and thus hide the installation of the pedestals.

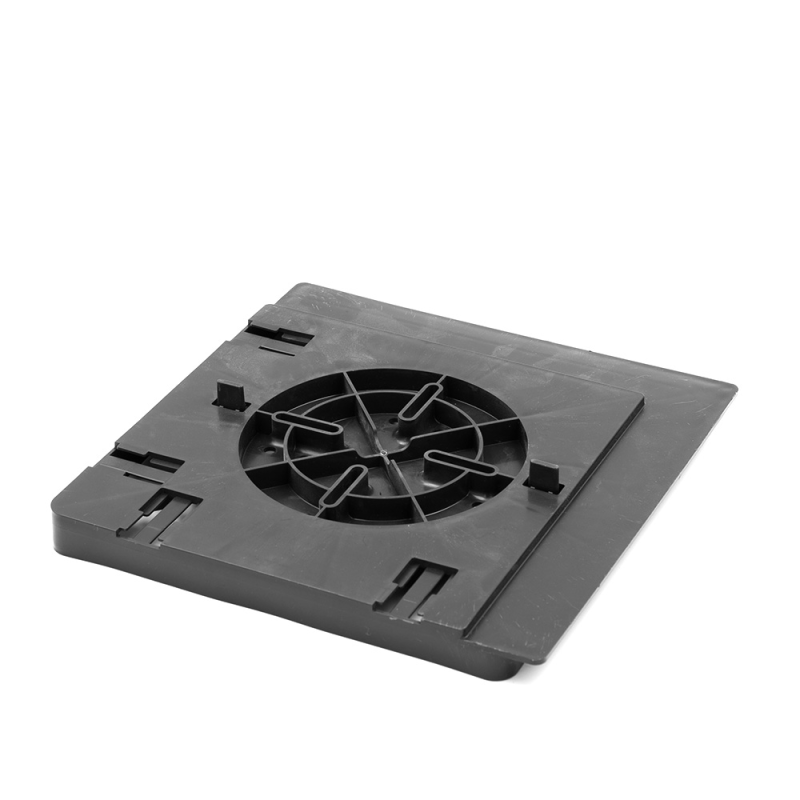

Characteristics of the paving plate for paving terrace on pedestal

  • Made in France
  • Supports up to 1 ton of load
  • Resists temperature variations (-40° to +60°)
  • Does not deteriorate on contact with acids and chemicals
  • Withstands frost and UV
  • Only compatible with YEED terrace pedestals (Ex Rinno)
Data sheet

Model :


Paving plate for terrace pedestal - YEED (ex Rinno)


YEED (Ex Rinno)
ColorBlack
MaterialPolypropylene
Warranty2 years warranty
OriginManufactured in France
ConformityCompliance with the DTU 43.1 and 51.4
ResistanceResistant to acid and basic solutions, atmospheric agents, temperatures between -40°C and 60°C
LoadResists the test of crushing with a load superior in 1 ton
BrandYEED (Ex Rinno)
UseConcrete slab, Porcelain stoneware tiles, Gratings
Accessories forPavement borders
CompatibilityLateral riser support, YEED Adjustable Pedestal 40/60 mm, Ajustable pedestal 60/90 mm YEED, Adjustable pedestal 90/150 YEED, YEED Adjustable Pedestal 150/260 mm
SH Code39259010
Country of OriginUE
