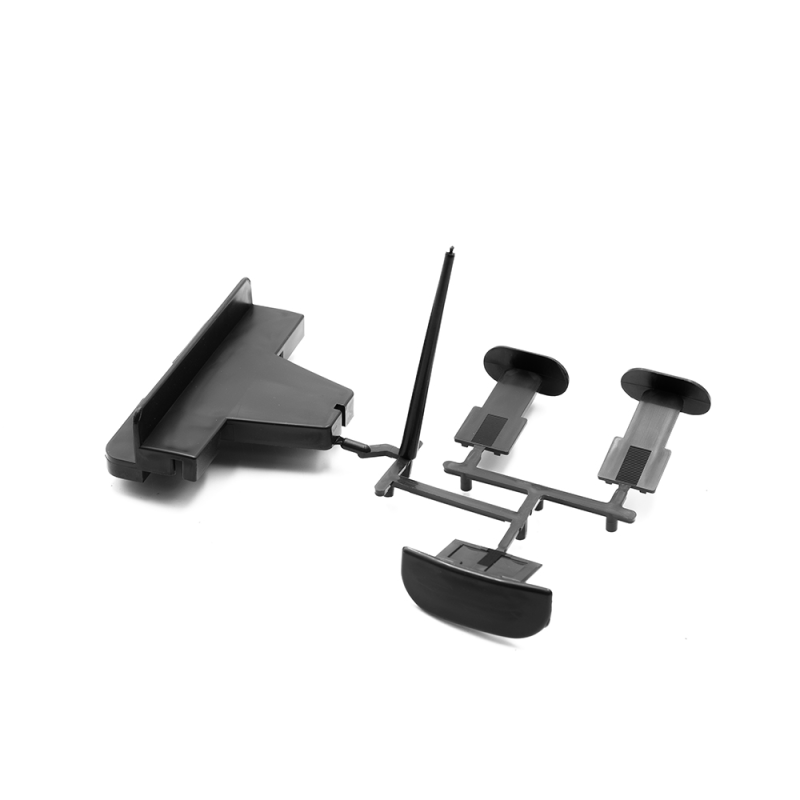

Cladding support for terrace pavnig on pedestal YEED (Ex Rinno)

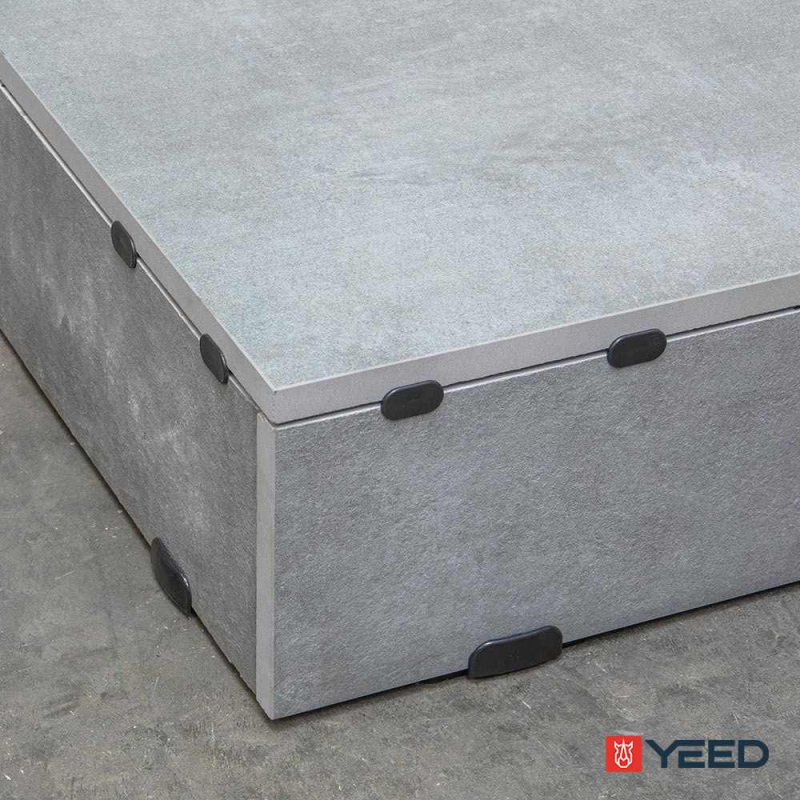

An essential accessory for finishing the tiled terrace on a pedestal, the cladding support makes it possible to hide the installation of the pedestals under the terrace by creating support for the riser.
Use of the cladding support for paving terrace finish on pedestals
- The cladding support is only used on the pedestals at the edge of the terrace and allows the side closure of the latter.
- Its installation is simple and can be done in seconds. Once the pedestals are positioned on the ground, place the paving plate on the head of the pedestal and clip the trim support to the base of the paving terrace pedestal.
- This accessory for paving pedestal offers the possibility of concealing the structure of the terrace on pedestals and of being able to hide unsightly cables or pipes there.
Once the cladding support and the paving plate have been installed, you will need to make the cutouts necessary to close the terrace and make the riser. We recommend applying glue to the upper part of the cutout in contact with the underside of the slab slab in order to guarantee impeccable maintenance over time. Thus, the cladding support as well as the paving plate offer an optimal aesthetic result for the finishes of the terrace on paving pedestals.
Characteristics of the cladding support for paving on terrace pedestal
- Made in France from polypropylene, a resistant and durable material.
- It has been designed to resist flawlessly to climatic elements such as frost and UV, whether it is scorching or the temperatures are negative.
- The cladding support does not deteriorate on contact with products used in swimming pools and basins.
Please note that it is only compatible with YEED (Ex Rinno) brand products: paving terrace pedestals and pedestal accessories.
Cladding support for terrace pedestal - YEED (ex Rinno)
|Warranty||2 years warranty|
|Origin||Manufactured in France|
|Conformity||Compliance with the DTU 43.1 and 51.4|
|Resistance||Resistant to acid and basic solutions, atmospheric agents, temperatures between -40°C and 60°C|
|Brand||YEED (Ex Rinno)|
|Accessories for||Edge construction|
|Compatibility||Paving plate for pedestal, Ajustable pedestal 60/90 mm YEED, Adjustable pedestal 90/150 YEED, YEED Adjustable Pedestal 150/260 mm|
|Country of Origin||UE|
