Reduced price! Jouplast vibration buffer for pedestal - Lot of 100 units

Vibration buffer for slab terrace pedestal - YEED (ex Rinno)

Reference :

Available stock

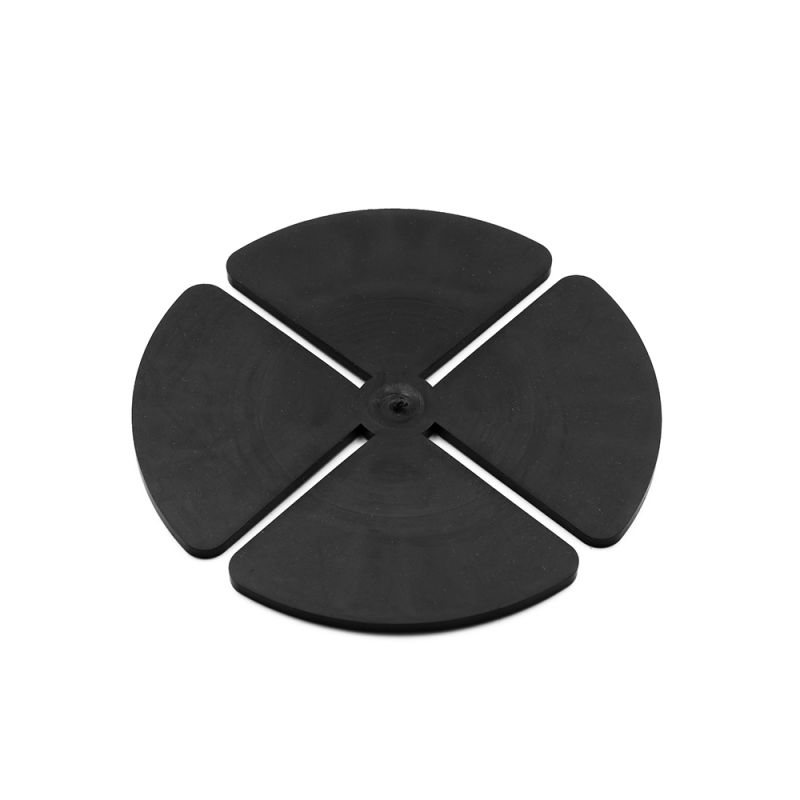

Rubber insert: reduces noise and vibration when moving on paving terraces. Thus, benefit from optimal sound insulation with ease. To be placed directly on the head of the paving pedestal: the slots are designed to allow the lugs to protrude. Compatible with all pedestal models for paving terraces. It can also be used to compensate for differences in height between the pedestals. More details

Packaging :

Quantity:

- +

shipment in 24/48h

Your orders are shipped

Customer service

Our teams are at your disposal from Monday to Friday from 9am to 6pm

D.T.U. Standards

All our products comply with current standards

secure payment

Our site is protected by an SSL certificate

the guarantees plots-discount.com

Anti-noise damper wedge for terrace pedestal – YEED (Ex Rinno)

The shock absorber wedge is an accessory used when laying a tiled slab terrace on pedestals. Its primary function is to attenuate the vibrations triggered by movements on the surface of the terrace as well as to reduce possible resonance. Nothing is more unpleasant than hearing an echo or feeling a vibration with each step on the tiled terrace. The sound absorber wedge allows you to obtain a sound insulation of the terrace with ease.

Use of the sound-absorbing wedge for paving terrace on pedestal

In order to guarantee optimal comfort on your slab terrace, the application of anti-noise wedges on the paving pedestals is the solution. This allows the absorption of vibrations related to movements on the surface of the terrace and also to prevent resonance so as to offer optimal acoustic comfort.

The shape of the shock absorber wedge has been studied in such a way as to leave room for the 4 lugs located on the head of the pedestal, so as to perfectly fit the support. This accessory can be used on all paving terrace pedestals, whether fixed or adjustable.

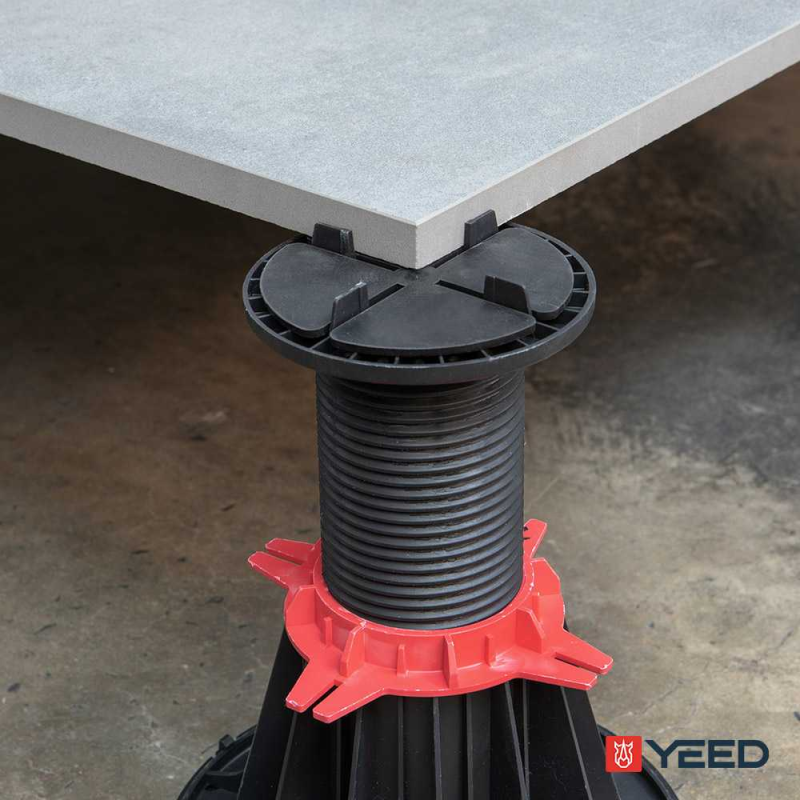

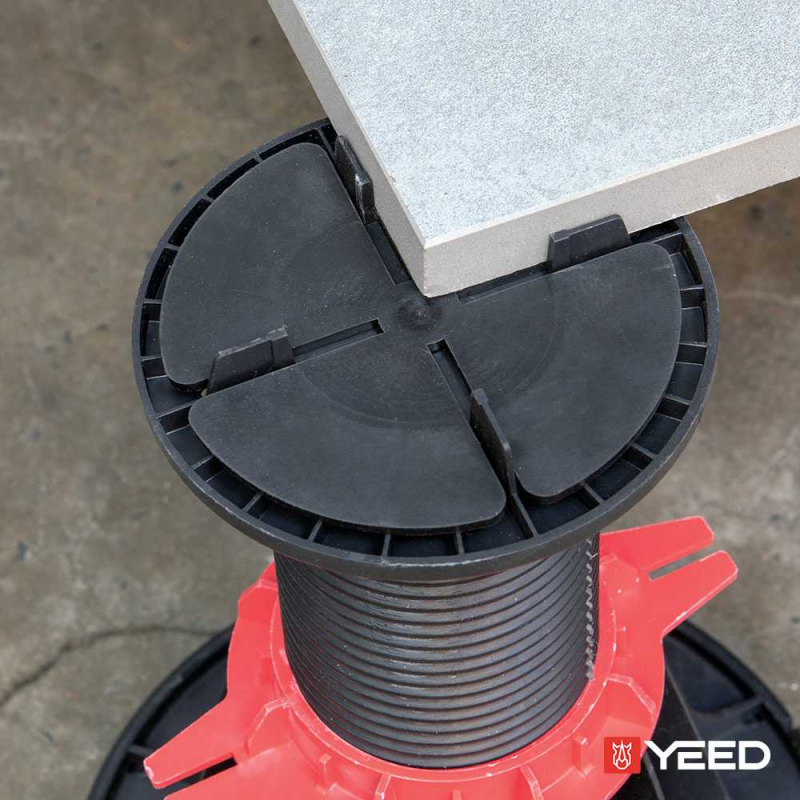

The installation is very simple: the shock absorber wedge is placed on the head of the pedestal, leaving the lugs present in this place protruding from the cutouts. Then lay down your tiling pavings and you're done, no need for any fixings!

Characteristics of the noise dampening wedge for terrace pedestal

Made in France from rubber.
The shock absorber wedge for pedestal is 3 mm thick and allows the sound insulation of terraces made of gratings, tiles, concrete paving on pedestals.
It also complies with the standards in force called DTU 43.1 and 51.4.
The warranty for this product is 1 year.

Data sheet

Model :

Vibration buffer for slab terrace pedestal - YEED (ex Rinno)

Color	Black
Material	Rubber
Warranty	1 year warranty
Origin	Manufactured in France
Conformity	Compliance with the DTU 43.1 and 51.4
Resistance	Resistant to acid and basic solutions, atmospheric agents, temperatures between -40°C and 60°C
Brand	YEED (Ex Rinno)
Type	Self-levelling, Fixed, Adjustable, Adjustable from the top, For EPDM
Use	Gratings, Porcelain stoneware tiles, Concrete slab
Accessories for	Noise buffer
Thickness	3 mm
SH Code	39259010
Country of Origin	UE
