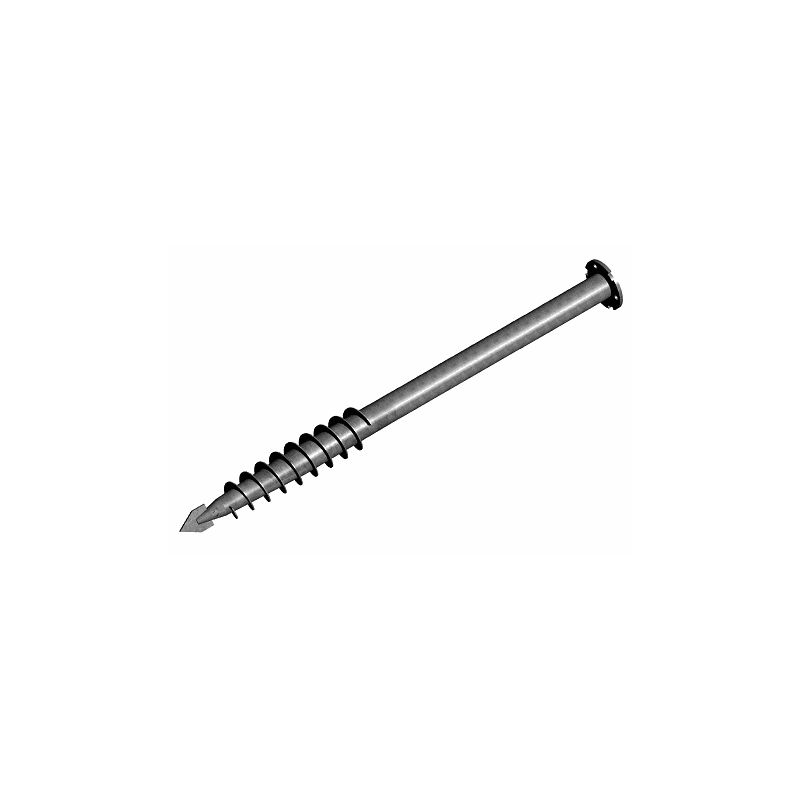

Galvanized steel, 1000 mm foundation screws for terrace - Weasyfix


Reference : FS1000-F

Foundation screws for wooden terrace and for other small constructions. Compensates for different height levels or uneven ground. Quick and easy installation: no need for concrete, no need to dig, and allows you to start installing the rest of your terrace immediately. 1000 mm long.More details

shipment in 24/48h
Your orders are shipped
Customer service
Our teams are at your disposal from Monday to Friday from 9am to 6pm
D.T.U. Standards
All our products comply with current standards
secure payment
Our site is protected by an SSL certificate
the guarantees

Weasyfix’s 1000 mm foundation screws for wooden structures.

The ground is not straight? Fortunately, Weasyfix’s 1000 mm foundation screws are used to compensate for level differences. Designed for small outdoor constructions, the screws support a load of 1000 kg in standard soil. It guarantees a stable, secure construction. It has revolutionized the installation of wooden terraces thanks to its installation accessible to all. These terrace foundation screws are very easy to use and is a solution that has many advantages.

Advantages of Weasyfix’s 1000 mm foundation screws

  • The installation of the terrace foundation screws does not require the use of concrete. Installing it will help you save time and keep it clean since the garden remains intact, even after the installation.
  • You do not need to dig a hole to install them: you only have to drive the foundation screw directly into the ground with the Weasylectric tool.
  • You can work without having to stop: once the foundation screws are installed on the ground, you can immediately start installing the rest of the structure.
  • The wooden terrace foundation screws are durable, eco friendly and neutral for the soil and they comply with the DIN EN 18300 standard

Steps to install Weasyfix’s terrace foundation screws

Foundation screws can be installed in three quick steps. These crews can be installed  by one person without any difficulty by following the following steps;

  1. Make a pilot hole of 50 and 70  mm of diameter to ensure the proper placement of the foundation screws. Make sure the depth of the pilot hole is slightly less than the intended depth of the screw;
  2. Next, introduce the screw with your hands, then put the screwdriver’s head on the screw using the holder, provided for this purpose. This holder must be tightened against the compression washer.
  3. In order to have a stable and straight terrace foundation, place the Weasylectric on the screwdriver head. Use the bubble level on the device to keep an eye on the screw placement. Once the desired depth is reached, put the machine away and unscrew the screwdriver's head. The terrace foundation is now in place!

                Technical characteristics of Weasyfix foundation screws

                • Material: 3mm hot-dip galvanized steel (DIN EN ISO 1461 standard)
                • Appearance: 3 holes and a M16 thread in the center
                • Number of spirals: 9 wide spirals for better anchoring to the ground
                • Shape of the tip: pointed for easy and precise installation
                • Load: 1000 mm long,  it can support a load of up to 1000 kg
                • Weight: 5,43 kg
                Data sheet

                Model : FS1000-F

                Galvanized steel, 1000 mm foundation screws for terrace - Weasyfix

                UseFoundations and structures for terraces
                Content1000 mm galvanized steel foundation screw with central M16 for screwing connectors
                Diameter Thickness120
                Lenght in mm1000
                SH Code73181210
                Type of soilEarthy
