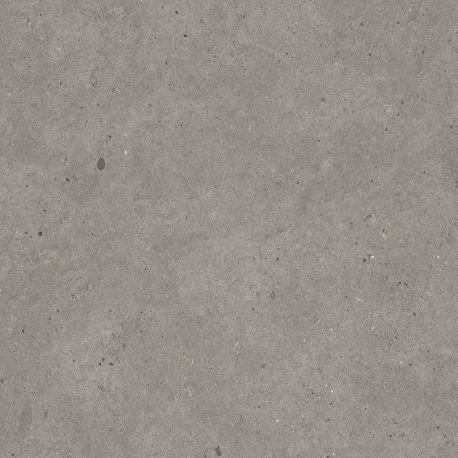

Porcelain tile – ELYSIAN GRIS CATALAN EY04 – Mirage

Terrace porcelain tile – Gris Catalan Elysian by Mirage

Bring a touch of elegance and modernity to your terrace with the Gris Catalan porcelain tile, from the Elysian range by Mirage. Designed for pedestal installation, this exterior covering combines minimalist design with sophisticated details. Its delicate nuances and mineral effects create a refined graphic harmony, perfect for enhancing terraces and outdoor spaces.

Thanks to its robustness and weather resistance, this tile guarantees durability and safety throughout the year. Its 20 mm thickness provides excellent stability, while its slip-resistant properties (R9, R10 A+B, R11) ensure optimal grip even in wet conditions.

Available in several formats to suit all your desires, this tile is offered in 60x60 cm (sold in packs of 2), 60x120 cm, and 80x80 cm.

Technical specifications

• Thickness: 20 mm

• Water absorption: ≤0.5 %

• Bending resistance: S≥700 N (<7.5 mm) / S≥1300 N (>7.5 mm)

• Thermal shock resistance: ISO 10545-1

• Frost resistance: ISO 10545-1

• Slip resistance: R9, R10 A+B, R11

Complete your installation For a perfect and lasting installation, discover our selection of terrace accessories: adjustable pedestals, polymer joints, and finishing profiles. Ensure an aesthetic and resistant installation suitable for all outdoor environments.

Additional technical specifications: Our tile has a thickness of 20 mm. Its weight varies depending on its dimensions and is approximately:

• 60x60 cm = 15.57 kg

• 30x120 cm = 16 kg

• 45x90 cm = 17.8 kg

• 60x90 cm = 23.5 kg

• 80x80 cm = 28.5 kg

• 90x90 cm = 37.6 kg

• 120x120 cm = 63.25 kg

Installation tips: It is recommended to use 1 pedestal every 60 cm. For example, for the following tiles:

• 60x60 cm = 4 pedestals (one for each corner of the tile)

• 60x120 cm = 6 pedestals (one for each corner + one in the middle of the long edges)

• 120x120 cm = 9 pedestals (one for each corner + one in the middle of each edge + one in the center of the tile for solid support)
