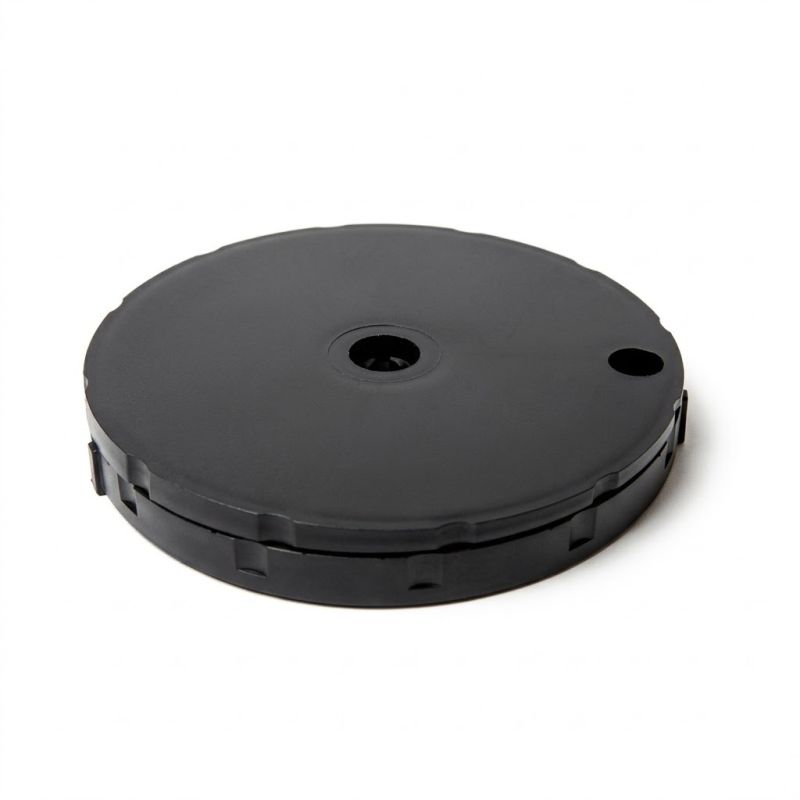

Slope regulator for terrace pedestal - Vérindal
The Vérindal+ slope regulator sits under the base of a wooden deck or slab terrace pedestal to level it on a sloped surface. Turn the upper part to correct a slope from 0 to 10%, using graduations in % and degrees. Ø202 x 22 mm at 0°, it supports 1 tonne, weighs 260 g and is made in France.
Orders shipped within 24/48 hours
Best prices
Pay in 3 or 4 installments with Oney
Description
Slope regulator for terrace pedestal, Vérindal+
Corrects a slope of up to 10%
The Vérindal+ slope regulator sits under the base of a wooden deck or slab terrace pedestal to level the ground simply. It is the practical solution for laying pedestals on a linear slope.
Simply turn its upper part to adjust the correction, thanks to graduations in % and degrees. Made in France.
|
0 to 10%
Slope correction adjustable by turning the upper part
|
% et °
Graduations in both units to make adjustment easy
|
Ø202 mm
Regulator diameter, for a wide base under the pedestal
|
|
1 tonne
Load resistance
|
260 g
Regulator weight, in polypropylene
|
-20°C / +80°C
Frost and UV resistance
|
Lay your pedestals on a slope
When the base of your terrace is not horizontal, the Vérindal slope regulator makes up the difference without altering the ground. It sits under the base of the pedestal, which stays level.
Adjustment is simple: by turning the upper part, you set the slope correction up to 10%. The graduations, shown in percent and degrees, let you set the value you want without any calculation.
It is used with Vérindal+ pedestals for wooden decks as well as with Vérindal+ pedestals for slab terraces.
Consider the total height
The regulator is 22 mm thick at 0°. Include it in the height calculation of your terrace.
Technical specifications
| Dimensions (at 0°) | Ø202 x 22 mm |
| Slope correction | 0 to 10% (graduations in % and °) |
| Weight | 260 g |
| Material | Polypropylene filled with 20% talc |
| Resistance | Supports 1 tonne; frost down to -20°C, UV up to +80°C |
Which terraces is it for?
|
Wooden deck
Compatible with Vérindal+ pedestals for wooden decks, for a well-levelled joist structure even on a sloping base.
|
Slab terrace
Compatible with Vérindal+ pedestals for slab terraces, for an even surface on a linear slope.
|
Compatible pedestals
The slope regulator sits under Vérindal+ pedestals, for wooden decks and slab terraces alike.
|
Wooden deck pedestals (B range)
 from 20 to 230 mm
|
Slab terrace pedestals (H range)
 from 20 to 260 mm
|
Installation in 3 steps
|
1. Place the regulator
Lay it on the ground, under the base of the terrace pedestal.
|
2. Set the slope
Turn the upper part to the value you want, using the graduations in % or degrees.
|
3. Fit the pedestal
Install the pedestal on top, adjust its height as usual, then carry on laying your terrace.
|
Frequently asked questions
Up to what slope can the regulator correct?
The Vérindal+ slope regulator adjusts the correction from 0 to 10%.
How is the slope set?
By turning the upper part of the regulator. The graduations are shown in percent and degrees, to set the value you want easily.
Which pedestals can it be used with?
It is compatible with Vérindal+ pedestals for wooden decks and with Vérindal+ pedestals for slab terraces.
What load and conditions does it withstand?
It supports a load of up to 1 tonne and withstands frost down to -20°C and UV up to +80°C. It is made in France, in polypropylene.
Product Details
VER-PENTE
339 Items
Data sheet
- Brand
- Vérindal
- Type of accessory
- Installation accessory
Specific References
- EAN13
- 9506978889278
