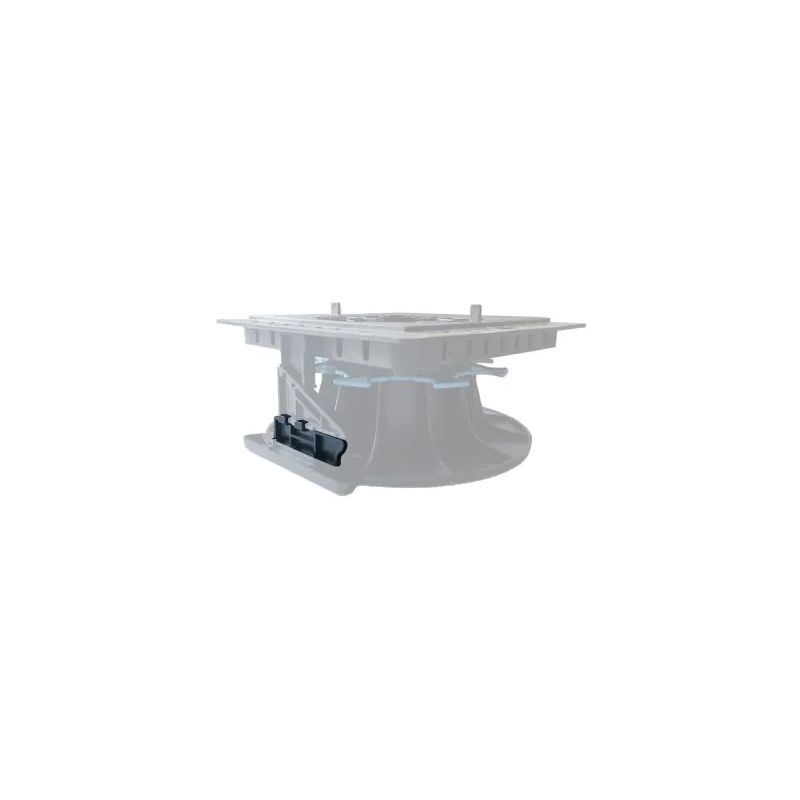

This riser is designed to increase the height of your paving slab support kit by 20 mm. Made from 100% recycled polypropylene, it allows for a total clearance height under the slab between 65 mm and 105 mm. For projects requiring even more elevation, these risers are stackable to provide up to 40 mm of additional height.
Best prices
Pay in 3 or 4 installments with Oney
Customer service from Monday to Friday
Adjustment riser for paving support – Jouplast
The Jouplast riser is a practical and ecological solution for adjusting the height of your paving slab installations. Specifically engineered to integrate with the slab support kit, each unit adds 20 mm of elevation. This flexibility is ideal for overcoming site irregularities or achieving specific clearance requirements.
Crafted from 100% recycled materials, this accessory is built to endure harsh outdoor environments. It maintains its structural integrity across a wide temperature range and is fully resistant to frost and UV exposure. The lightweight yet robust design ensures a stable foundation for your terrace while supporting sustainable building practices.
Key Advantages:
Height Extension: Adds exactly 20 mm to the existing support kit.
Stackable: Up to two risers can be combined to reach a total of 40 mm extra height.
Extended Range: Enables total heights under the slab ranging from 65 mm to 105 mm.
Environmental Responsibility: Manufactured from 100% recycled polypropylene.
Extreme Durability: Weather-resistant from -30°C to +60°C and UV stabilized.
Technical Characteristics
Quantity: 8 risers per bag
Height: 20 mm
Dimensions: 20 x 71 mm
Weight: 8 g per unit
Material: 100% recycled polypropylene
Color: Black
Operating Temperatures: -30°C to +60°C
Brand: Jouplast
Installation Recommendation
For a secure and stable installation, the riser must be positioned between the foot and the lower shim of the support kit. If using two risers to achieve a 40 mm boost, ensure they are properly stacked and aligned before placing the upper components of the kit. This product is intended to provide additional clearance for air circulation and utility passage under outdoor paving.
Specific References
Reference: JOU-IPFIN70JAS20000
