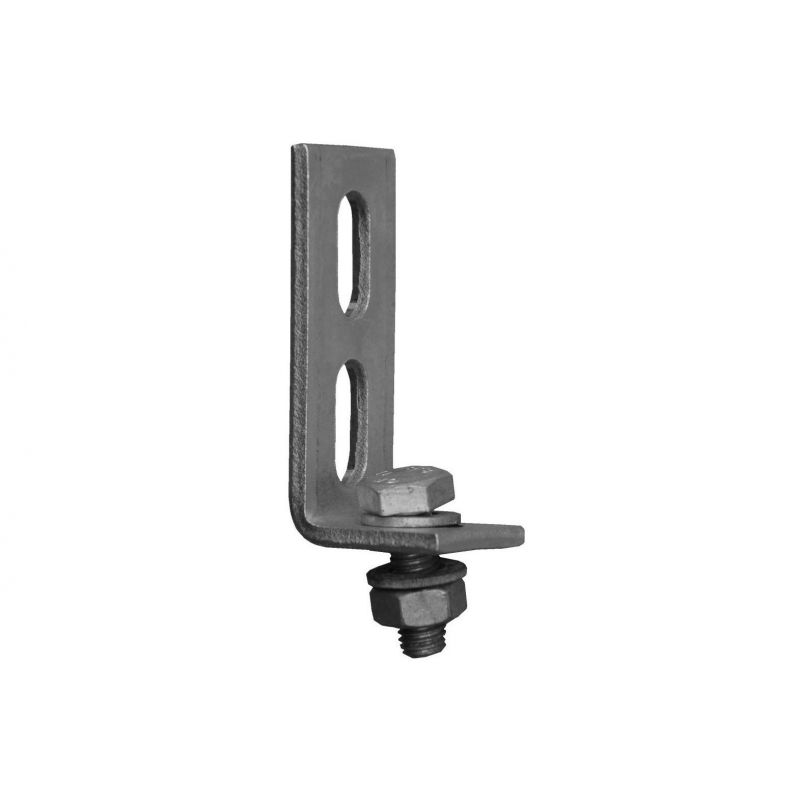

Weasyfix 58 x 150 x 5 mm bracket for foundation screws

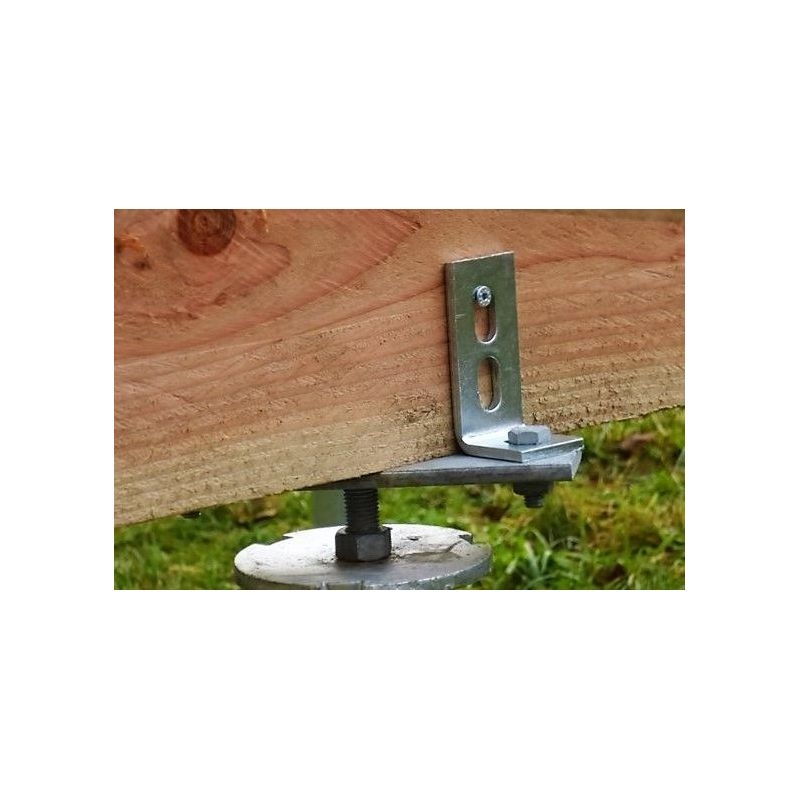

In order to securely fasten the joists on the foundation screws or directly on the Wood Basic, a bracket must be installed. Depending on your needs, this 58 mm long, 150 mm wide and 5 mm thick accessory is compatible with the FS550, FS750, FS1000, FS1250 and FS1500 wooden deck foundation screws. This registered model is also compatible with the Wood Basic, Base 2, Base 3 as well as with the base 2 or base 3 fixing kit.
It is made of hot-dip galvanized and it weighs 420 grams taking into account the accessories. Designed to be used with the Weasyfix wooden terrace foundation screws, it comes with a M10 screw, a nut and two washers. All this is to be fixed directly on one of the holes in the flange of the Weasyfix foundation screw. This bracket is very easy to use and it guarantees a durable, stable, secure, easy to set up and perfectly straight wooden structure.
With this bracket, your wooden structure is firmly supported by resistant, affordable and ecological foundations. Using this bracket will help you save time and money since it can be installed in only a few minutes, you can do it alone and is ideal for anybody who doesn’t have any prior experience.
Model : L-58/150
L.150/58 mm bracket for wood and metal structures - Weasyfix
|Use||Fondations et strucutres pour terrasses|
|Contenu||Equerre de 58 x 150 x 4 mm avec 1 vis M10, 1 écrou et 2 rondelles. A utiliser avec woodbasic ou fsxxxx-f|
Find all the documents that will be useful to you for the realization of your projects
D1_D2_D3 - EQUERRES
D1_D2_D3 - EQUERRES_enTélécharger
