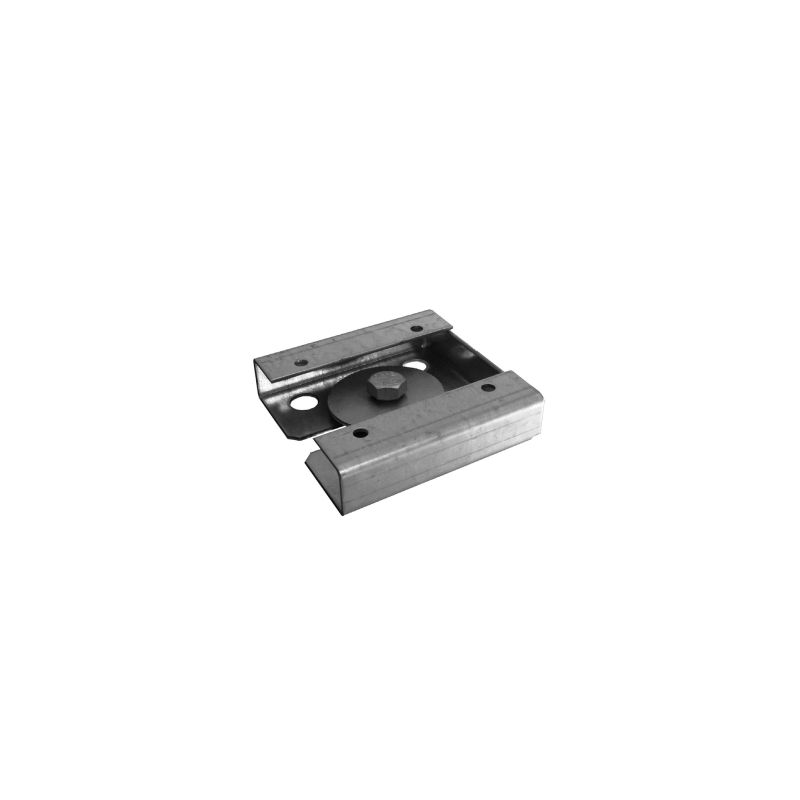

Galvanized steel wooden connector for wood post from 140 mm
The Wood 140 steel connector (patented model) has been specifically designed for small vertical wooden structures. Once the Weasyfix foundation screw is driven into the ground, the connector can be screwed onto the M16 fixation system found on the foundation screw and positioned under the wood. It is only compatible with posts ranging from 140/140 to 200/200 and can compensate for significant height differences.
This Magnelis galvanized steel connector weighs 1.05 kg, is 140mm in length and width, 35mm high and 3mm thick, and it can support up to 900kg of weight. This patented model can be adjusted horizontally in two directions or in three directions after the wood is installed. In the latter case, you need to use the vertikit (verticality connector).
Using this connector ensures the stability and verticality of the structure. It is as easy to install as a wooden terrace foundation screw it can therefore be installed by anyone without prior experience. The connector comes with the M16 fixation system and with all the accessories necessary for its installation. However, the 4 fixing screws for the post must be bought separately.
Model : WOOD140
Foundation screw connector for 140/200 mm wood post - Weasyfix
|Use||Fondations et strucutres pour terrasses|
|Contenu||Connecteur bois en acier galvanisé pour la fixation de poteaux à partir de 140 mm. Utilisés pour compenser des différences de hauteur importantes|
Find all the documents that will be useful to you for the realization of your projects
C6 - WOOD 140
C6 - WOOD 140_enTélécharger
