Galvanized steel wood connector for 90 mm and up

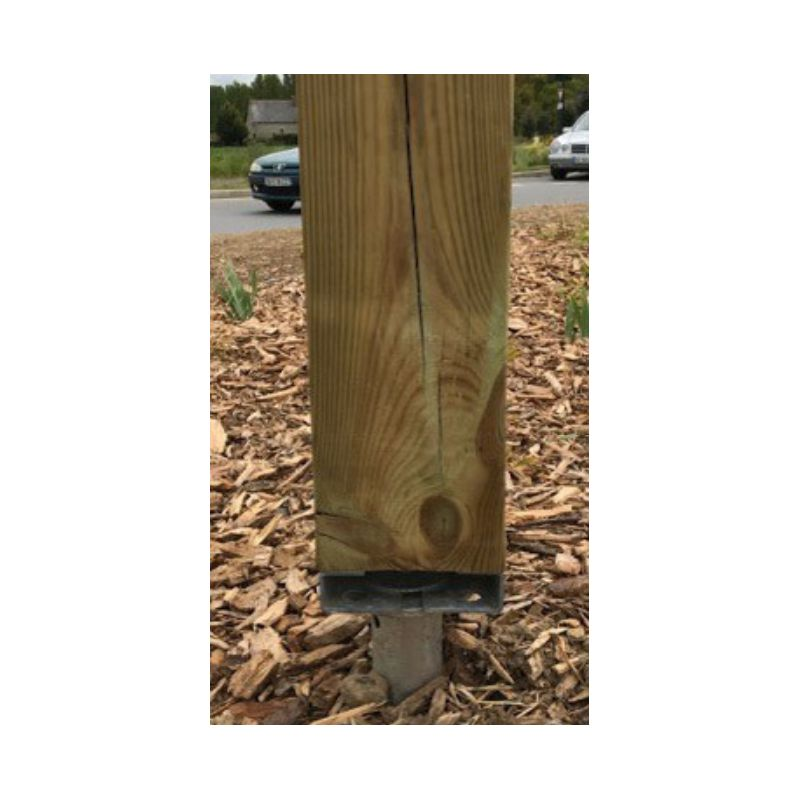

The steel connector for wood has been specifically designed for small vertical wooden structures. Once the Weasyfix foundation screw is driven into the ground, this connector can be screwed on the M16 fixation system found on the foundation screw. Once in place, the wood connector is only compatible with posts fom 90/90 to 140/140.

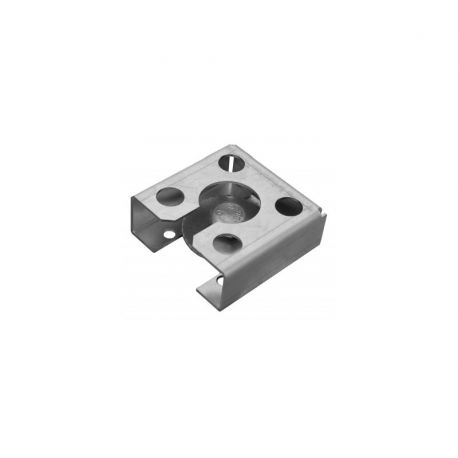

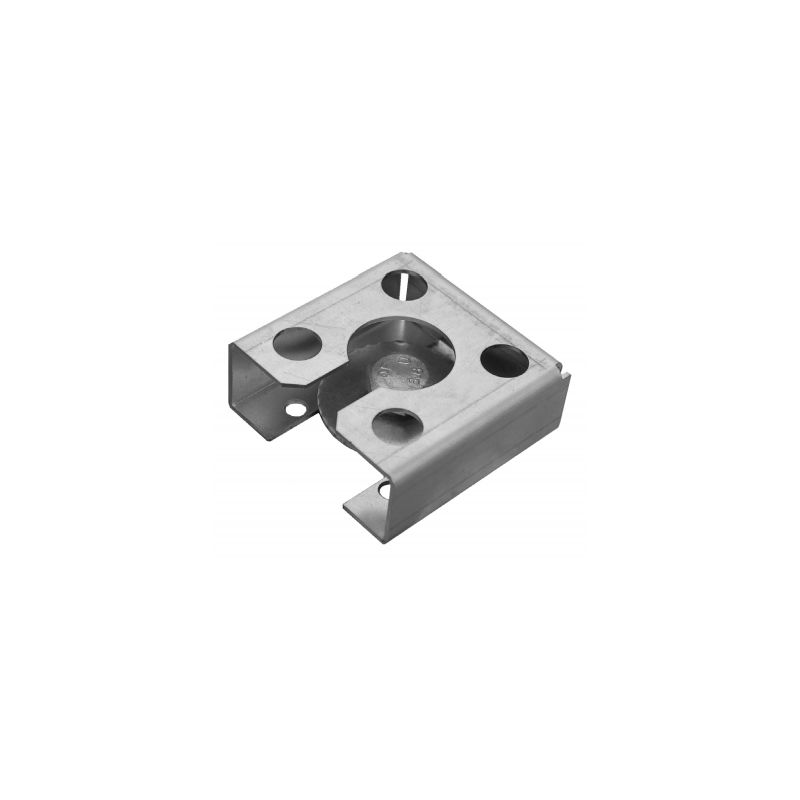

This connector is made of 2M 310 galvanized Magnelis steel, it weighs 0.41 kg, it is 90 mm long and wide, 35 mm high and 3 mm thick and it supports up to 900 kg of weight. This patented model can be adjusted in two directions or even in three if used with the Vertikit verticality connector.
This accessory ensures the stability, verticality, and durability of your wooden structure! It is as easy to install as a terrace foundation screw therefore it can be installed by someone without prior experience. The connector comes with the M16 fixation system and all the accessories needed for its installation. However, the 4 screws to mount it in the post are to be bought separately.
Model : WOOD90
90/140 mm foundation screw connector for wood post - Weasyfix
|Use||Fondations et strucutres pour terrasses|
|Contenu||Connecteur bois en acier galvanisé pour la fixation de poteaux à partir de 90 mm. Utilisés pour compenser des différences de hauteur importantes|
Find all the documents that will be useful to you for the realization of your projects
C5 - WOOD 90
C5 - WOOD 90_enTélécharger
