Overbridge 60 mm for terrace pedestal - R60 - Vérindal

Name: Overbridge 60 mm for terrace pedestal - R60 - Vérindal
Brand: Verindal
SKU: VER-R60-DECL
Price: 0.65 EUR
Availability: InStock
Rating: 4.75 (4 reviews)

Reference VER-R60

Brand Verindal

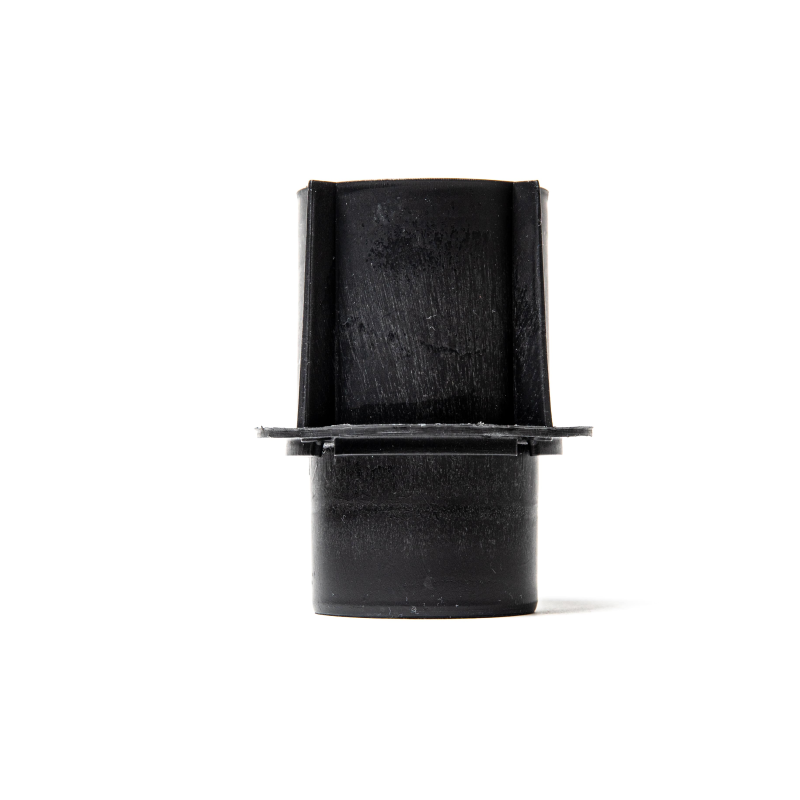

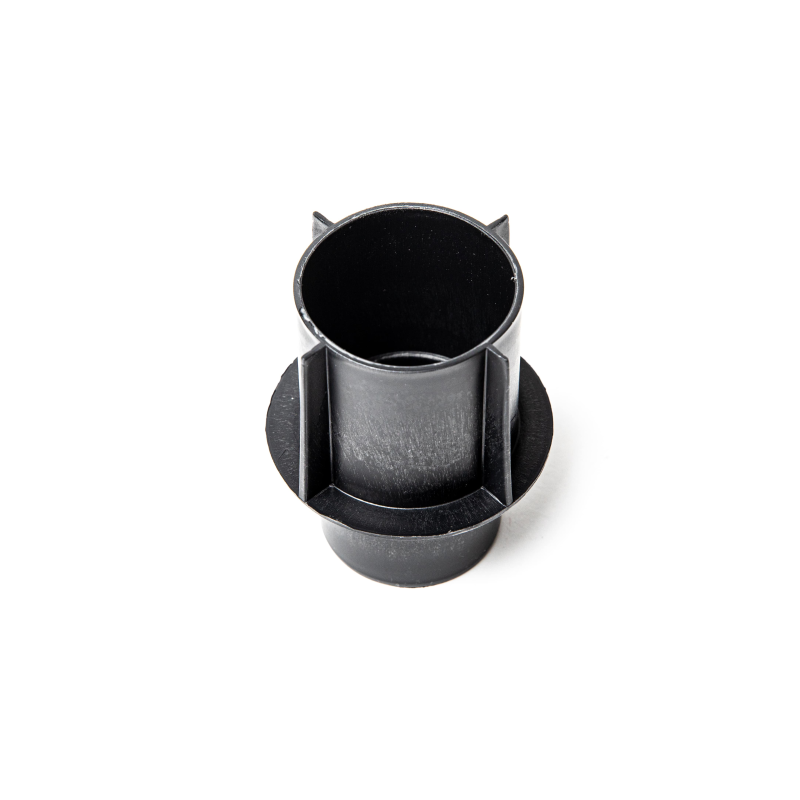

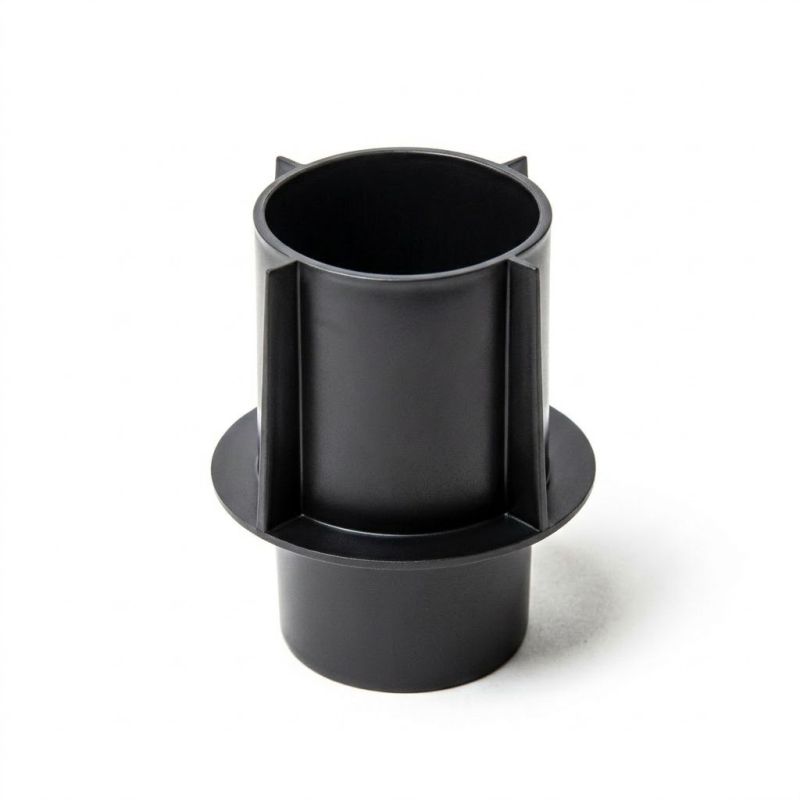

The Vérindal R60 extension adds 60 mm of height to your terrace pedestals. Made in France from polypropylene, it measures Ø 60 x 60 mm, weighs 64 g and supports up to 1 tonne. It fits between the base and the adjustment ring of the B70, B100 and B150 wooden decking pedestals and the H70, H100 and H150 slab pedestals. Up to 3 extensions per pedestal are recommended. It withstands frost down to -20°C and UV up to +80°C.

More details

Orders shipped within 24/48 hours

Best prices

Pay in 3 or 4 installments with Oney

€0.65

Tax included

In Stock

In stock: 4 Items

Packaging

Quantity

Description
Product Details

Description

60 mm extension for terrace pedestal R60, Vérindal+

Gain 60 mm of height on your decking and slab pedestals

The Vérindal+ R60 extension fits between the base and the adjustment ring of the pedestal to add 60 mm of height. It extends the adjustment range of the B70, B100 and B150 wooden decking pedestals and the H70, H100 and H150 slab pedestals.

Made of polypropylene, it supports up to 1 tonne. Made in France.

+ 60 mm Height added to the pedestal per extension	3 max Recommended number of extensions per pedestal	B70 to B150 And H70 to H150 slab pedestals
1 tonne Load capacity	64 g Weight of the extension, in polypropylene	-20°C / +80°C Resistance to frost and UV

Make up the height without changing pedestal

60 mm R60 extension for terrace pedestal Vérindal

When the adjustment range of a Vérindal pedestal is not enough, the R60 extension adds 60 mm of height. It fits between the base and the adjustment ring of the pedestal, and compensates for a low or uneven support without altering the rest of the structure.

Made of polypropylene, it supports up to 1 tonne and withstands frost as well as UV. It is recommended not to exceed 3 extensions per pedestal.

Compatible pedestals

The R60 extension fits between the base and the adjustment ring of Vérindal+ pedestals, for wooden decks and slab terraces alike. The B40, B50, H40 and H50 pedestals use the R20 extension, and the B20 pedestal the RB10 extension.

Wooden deck pedestals (B range)

from 75 to 230 mm

B70 · B100 · B150

Slab terrace pedestals (H range)

from 70 to 260 mm

H70 · H100 · H150

Technical characteristics

Dimensions	Ø 60 x 60 mm
Height added	60 mm per extension
Recommended number	3 extensions maximum per pedestal
Weight	64 g
Material	Polypropylene filled with 20% talc
Resistance	Supports 1 tonne; frost down to -20°C, UV up to +80°C
Compatibility	Vérindal+ B70, B100 and B150 wooden decking pedestals and H70, H100 and H150 slab pedestals

Which terraces is it for?

Wood and composite terraces

With the B70 to B150 pedestals, for natural wood or composite boards laid on joists.

Slab terraces

With the H70 to H150 pedestals, for ceramic, natural stone or concrete slabs laid on pedestals.

Installation in 3 steps

1. Assess the height

Measure the height to make up and work out the number of extensions needed, 3 at most per pedestal.

2. Insert the extension

Place the R60 between the base and the adjustment ring of the pedestal.

3. Adjust and lay

Set the final height with the adjustment ring, then lay your joists or slabs.

Frequently asked questions

Which pedestals is the R60 extension compatible with?

With the Vérindal+ B70, B100 and B150 wooden decking pedestals and the H70, H100 and H150 slab pedestals. Smaller pedestals use the R20 extension (B40, B50, H40, H50) or the RB10 (B20).

How much height does the R60 add?

Each R60 extension adds 60 mm of height to the pedestal. It is recommended not to exceed 3 extensions per pedestal.

Where does the extension go on the pedestal?

It fits between the base and the adjustment ring of the pedestal. The final height is then set with the ring.

What load and conditions does it withstand?

It supports a load of up to 1 tonne and withstands frost down to -20°C and UV up to +80°C. It is made in France, in polypropylene.
