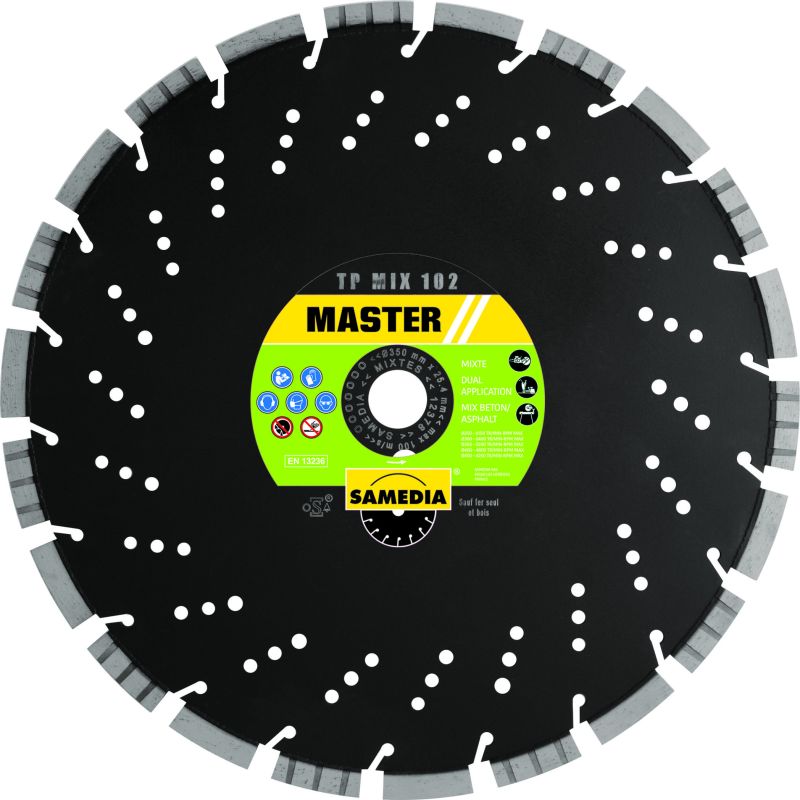

SAMEDIA Technic TP MIX 102 Diamond Blade – 350 mm

The mixed solution for multi-material job sites

The Technic TP MIX 102 350 mm is engineered to simplify the daily operations of masons, pavers, and landscapers. Its primary strength lies in its ability to handle materials with opposing properties—such as hard structural concrete and abrasive asphalt—using a single tool. This versatility makes it a strategic choice for optimizing productivity and reducing equipment downtime on site.

Technical performance and speed

This disc is built for maximum on-site efficiency:

• High cutting speed: The alternating pattern of serrated (turbo) and flat segments allows for optimal dust evacuation and significantly reduces heat buildup, resulting in a faster, cleaner cut.

• Extended longevity: With a generous 13 mm segment height, this blade offers a substantial wear reserve, ensuring a long service life and high cost-effectiveness for professional users.

• Operational versatility: Highly compatible with a vast range of construction materials, eliminating the need to carry multiple specialized discs.

• Ready to use: Specifically designed for professional power cutters and floor saws, it is delivered with the necessary rings to ensure a perfect fit for your specific machinery.

Materials and applications

• Optimal applications: Concrete, reinforced concrete, old concrete, flint concrete, and standard building materials.

• Possible applications: Asphalt, cast iron, granite, natural stone, breeze blocks, interlocking paving stones, and gravel-coated slabs.

Technical characteristics

• Diameter: 350 mm

• Bore size: Available in 20 mm or 25.4 mm (SAS)

• Segment height: 13 mm

• Segment thickness: 3.0 mm

• Number of segments: 24

• Segment type: Alternating serrated and flat

• Certification: Compliant with European standard EN 13236 and oSa certified

• Brand: Samedia (Technic range)

Professional tips

• Efficiency strategy: Use the TP MIX 102 for utility repairs or road modifications where you must cut through asphalt layers into concrete foundations; the mixed segment technology ensures consistent performance across both.

• Heat management: While designed for intensive use, periodically running the blade out of the cut will help the 13 mm segments cool, further extending the blade’s life.

• Tool compatibility: Check your machine's flange and bore size (20 mm or 25.4 mm) before mounting to ensure the blade is correctly centered and secure.

• Safety protocol: Always wear full personal protective equipment (PPE), including a dust mask, safety goggles, and hearing protection, especially during dry cutting operations.
