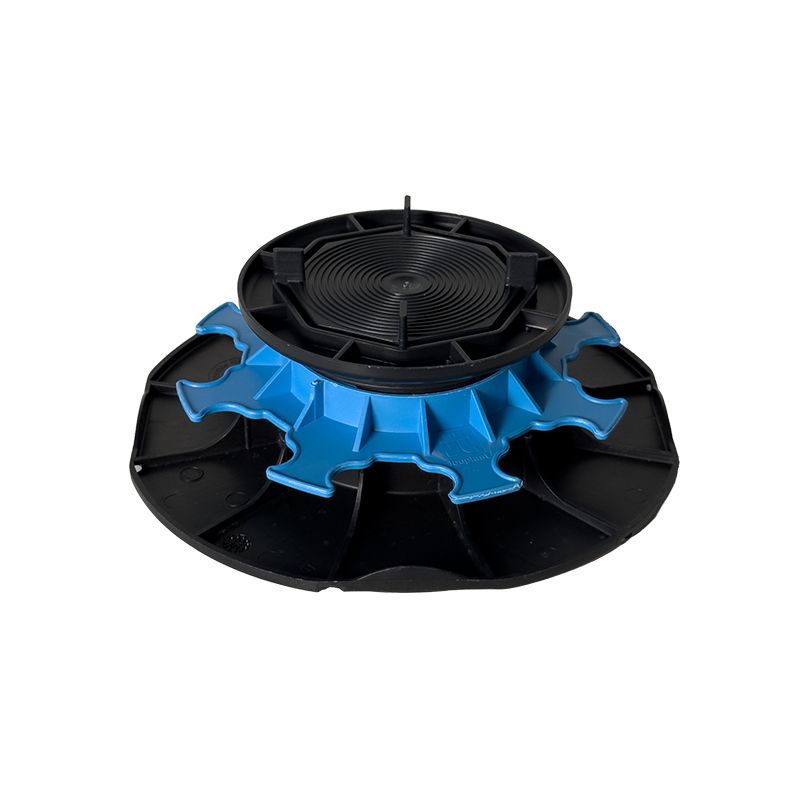

Adjustable paving terrace pedestal 50/80 mm - ESSENTIEL range - Jouplast

JOU-IH050080DF40000
Jouplast

JOUPLAST 50/80 mm paving pedestal, adjustment to the millimetre. For laying concrete pavings, tiles or gratings. Quick and easy laying method: provide 4 pedestals per paving. Use pavings at least 2 cm thick. Laying directly on the ground, is carried out without joints. Supports up to 1 ton of load, resists atmospheric agents and temperature variations (-30°/+60°). Compliant with DTU 43.1, French manufacturing. For more comfort, consider the acoustic rubber sold separately.

More details


Orders shipped within 24/48 hours



Best prices



Pay in 3 or 4 installments with Oney

€2.05
Tax included
Available equivalent
Packaging
Quantity

Calculate quantities
You might also like
Description
Dessin technique du plot terrasse dalle Essentiel 50/80 mm de Jouplast

Pedestal for tiled terrace adjustable in height from 50 to 80 mm - Jouplast

The paving pedestal for 50/80 mm is an adjustable pedestal from Jouplast. This terrace pedestal allows the installation of different coverings: concrete paving, exterior tiling and porcelain stoneware, but also gratings. Thanks to this paving terrace pedestal, installation is simple and easy, without seals. Consider acoustic rubbers for even more comfort.

The advantages of the Jouplast 50/80 mm paving terrace pedestal

  • Speed and ease of installation
  • Installation without fixing or seals
  • Manual and precise height adjustment thanks to the blue nut
  • Frost and UV resistant
  • Allows air to circulate under the structure
  • Allows the passage of cables and pipes
  • Withstands more than a ton of load
  • Complies with DTU 43.1

Tips for laying a tiled terrace on pedestals

  • The installation is carried out on a level and stable ground
  • Provide an inclination of 1 cm per linear meter to avoid any stagnation of rainwater;
  • Use self-supporting pavings of class T7 or T11 according to standard NF EN 1339 or F+;
  • The paving pedestal is intended for the creation of tiled, paving or grating terraces
  • The pedestal for tiling is designed for pedestrian use
  • Count 1 pedestal per corner, i.e. 4 pedestals for 1 slab of tiling
  • For large formats add 1 or 2 studs in the center to reinforce the installation
  • Bring a paving slab to make it easier to move and lay the outdoor tiling pavings on the terrace.

1/ Prepare the ground

The preparation of the ground depends on the surface on which you will lay your tiled terrace on pedestals:

  • If you are laying on an old terrace or a concrete paving, all you have to do is clean the surface and check its flatness;
  • On the other hand, if your future tiled terrace takes place on grass, earth or gravel, you will need to prepare the ground beforehand.


This ground preparation will guarantee the durability of your tiled terrace on pedestals over time. Yes, unprepared ground can evolve and move depending on weight and weather conditions.


Here is what you need for this preparation:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Gravel


Without structural work or additional tools required, 4 steps are enough to prepare your land to accommodate a paving terrace on pedestal:

  1. Dig the ground for 15 cm;
  2. Place a geotextile felt there to eradicate the growth of weeds and save you additional maintenance;
  3. Fill the hole with a 15 cm layer of gravel;
  4. Compact and make sure everything is level.

Depending on the nature of the ground, a draining foundation can be made upstream by depositing a layer of 30/60 or 40/80 type crushed gravel.

If the surface obtained still has some defects, it is recommended to make a laying bed with quarry sand or crushed sand type 0/4. This will facilitate the installation of low height pedestals.

2/ Lay the pedestals and paving tiles

It takes 1 pedestal per corner, i.e. 4 pedestals for a paving tile. For large format slabs, it is recommended to reinforce the installation by adding 1 or 2 additional studs in the center of the paving by breaking the spacers. For the installation of pedestals and tiles, follow these few steps:

  • Position the pedestals directly on the ground, respecting the layout plan;
  • Add an acoustic rubber on the head of the studs;
  • Lay the tiled pavings against the spacers;
  • Turn the nut to adjust the height of the pedestal to the desired level

Accessories for laying a tiled terrace on a Jouplast pedestal

Technical characteristics

  • Load resistance greater than 1 ton
  • Frost and UV resistant
  • Flange diameter: 208 mm
  • Head diameter: 120 mm
  • Adjustable height: 50 to 80 mm

Product Details
JOU-IH050080DF40000

Data sheet

Adjustable height
50 to 80 mm
Color
Black
Material
Polypropylene
Guarantee
2 years warranty
Origin
Manufactured in France
Conformity
Compliance with the DTU 43.1
Resistance
Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
Load
Resists the test of crushing with a load superior in 1 ton
Brand
Jouplast
Type
Adjustable
Qté lot
60
trad_lot
A batch of
SH Code
39259010
Country of Origin
UE
Spacer thickness
3 mm
Installation surface
Loose soil
Type of setting
Manual
Decking pedestal
Tile
Height
From 4 to 8 cm

Specific References

EAN13
7061288611343
Attachments
Download
FT_PLOT HD_FR_2112

FT_PLOT HD_FR_2112_en

Download (722.97KB)
