  • Lateral cladding support for pedestals | ESSENTIEL | Jouplast

Support for side paneling for ESSENTIEL pedestal - Jouplast

JOU-IHSUPHABIC10000
Jouplast

Accessory that attaches to the flange of the pedestal allowing the vertical laying of a paving or a joist to cover the riser of your terrace. Interlocking assembly. Riser thickness adjustment from 14 to 25 mm. To be used from a pedestal of 40 mm minimum height. Used with the paving plate for a paving or tile terrace, finish your terrace with a riser for a perfect finish. Compatible with Jouplast pedestals

More details


Best prices



Pay in 3 or 4 installments with Oney



Customer service from Monday to Friday

Meilleur prix garanti
€2.05
Tax included
Available stock
10088 Items
Probably Shipping Date: 03/24/2026
Quantity

You might also like
Description

Lateral trim support for paving and joist pedestal – Jouplast

The cladding support is an accessory often used in combination with the paving plate and allows the completion of a terrace on pedestals. Compatible with the installation of tiled and wooden board terraces, it allows you to create the side finishes of the terrace by creating a riser.

Use of the cladding support for terrace pedestal

Used alone, the cladding support allows you to achieve the abutting finishes of your terrace on pedestal, whether it is in tiled pavings or wooden boards. Combined with the paving plate, you can use it in 3 different ways: as a finish with a skirting board, as an invisible finish or even when creating stair steps.

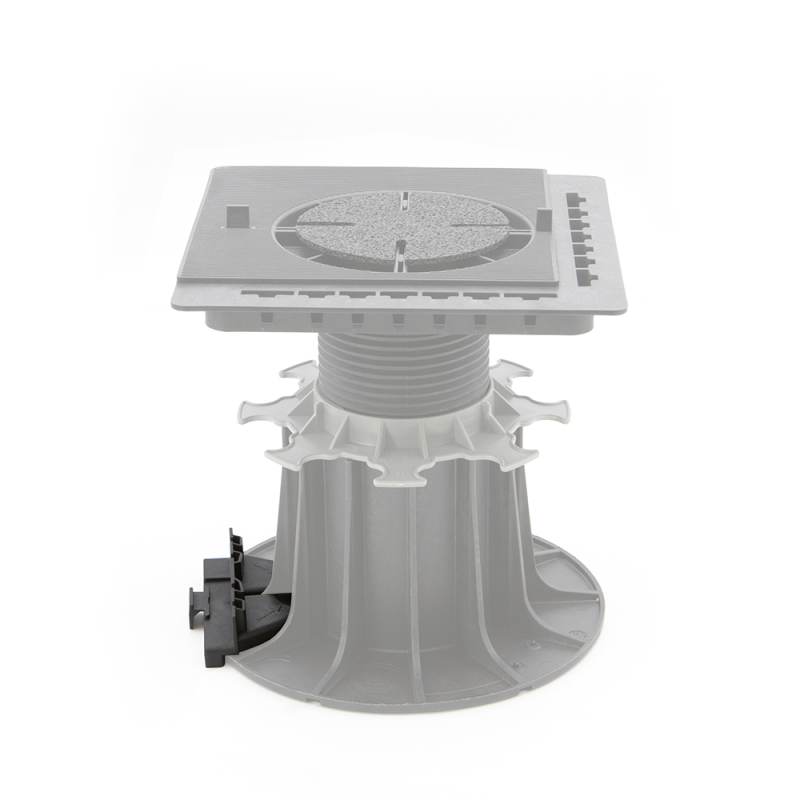

Simple to use, the cover support for terrace pedestal is fixed on the base of the flange. This one can be screwed but it is not an obligation. In the case of cladding a terrace corner on a paving pedestal, provide 2 cladding supports to close it.

Thus, the covering support allows the vertical laying of a paving or a wooden strip to cover the riser of your terrace on pedestals. It creates a support for the plinth and allows its alignment with the head of the pedestal. Provide 1 paved cladding support per peripheral pedestal as well as 2 cladding supports for the pedestals located in the corners.

Characteristics of the cladding support for terrace pedestal

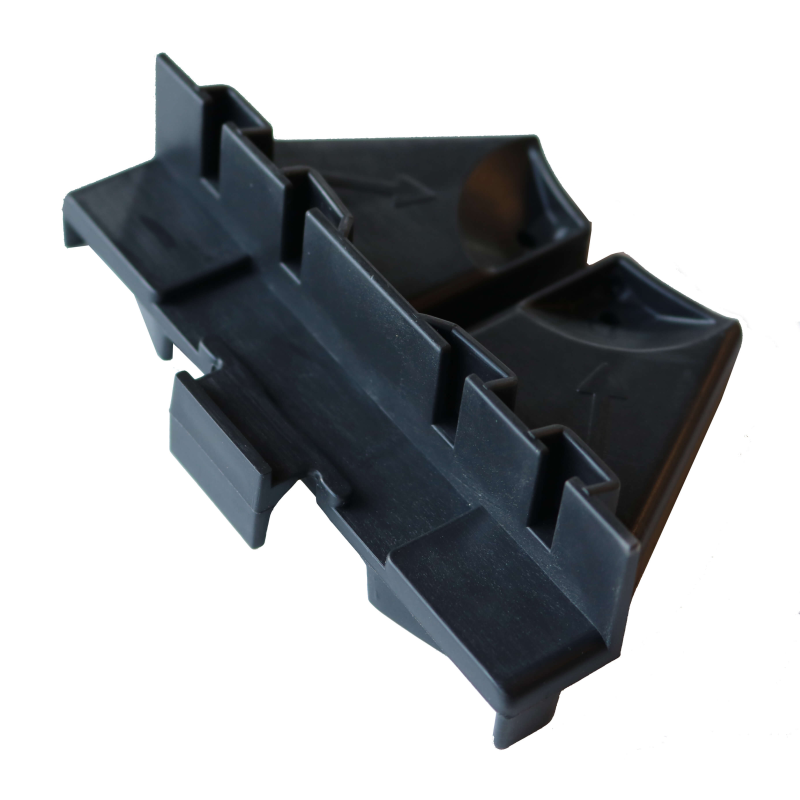

  • The pedestal trim support measures 100mm x 67mm x 28mm and is made of polypropylene.
  • It is installed without additional tools and the breakable tongue allows the laying of pavings of any thickness.
  • This accessory is compatible with all the pedestals of the Jouplast brand and allows the invisible fixing of the plinth of the terrace for optimal finishes.
  • 100% recyclable, the covering support is resistant to extreme temperatures, whether positive or negative from -30° to +60°. This accessory can be screwed to the flange of the pedestal.
Product Details
JOU-IHSUPHABIC10000
10088 Items

Data sheet

Color
Black
Material
Polypropylene
Guarantee
2 years warranty
Origin
Manufactured in France
Conformity
Compliance with the DTU 43.1 and 51.4
Resistance
Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
Brand
Jouplast
Type
Adjustable
Self-levelling
Use
Composite slabs
Concrete slab
Gratings
Porcelain stoneware tiles
Wooden slab
Accessories for
Edge construction
Qté lot
10
trad_lot
A batch of
SH Code
39259010
Country of Origin
UE
Best-price
Yes
Type of accessory
Installation accessory

Specific References

EAN13
9501814153773
Attachments
Download
FT_SUPPORT HABILLAGE LATERAL

FT_SUPPORT HABILLAGE LATERAL_en

Download (503.5KB)
