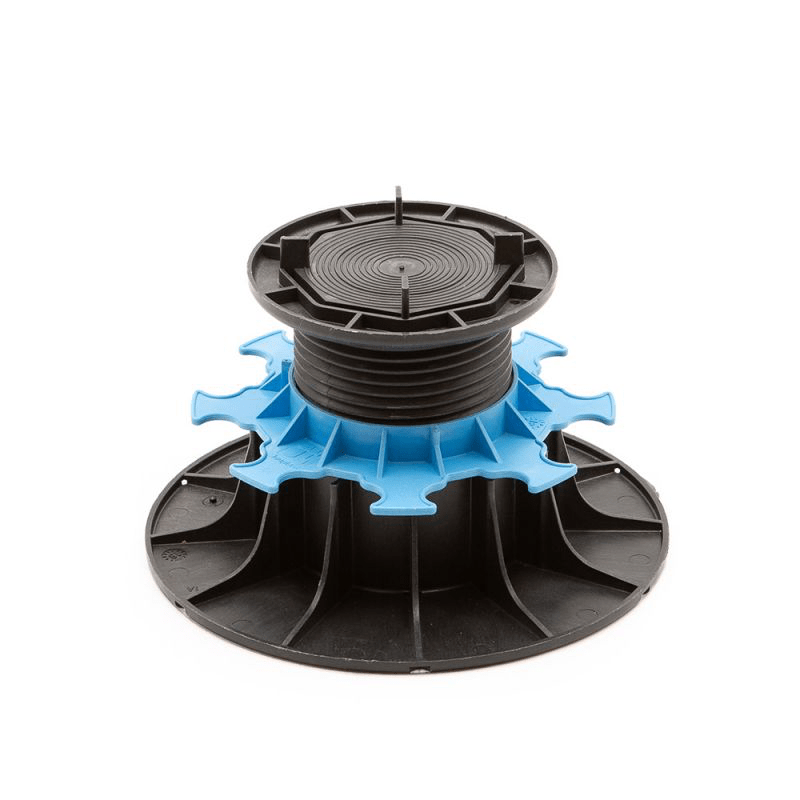

Adjustable paving terrace pedestal 80/140 mm - ESSENTIEL range - Jouplast

JOUPLAST

Reference :

Available stock

Adjustable pedestal for pavings from 80 to 140 mm. Adjustment to the millimeter thanks to the ring located under the head of the pedestal. Designed terraces with concrete pavings , outdoor tiles or duckboards. Place 1 pedestal at each corner of the paving. Supports up to 1 ton of load. Resistant to frost, UV, extreme temperatures as well as acid and basic products. Complies with current DTU 43.1 standards. French made. For more comfort, and to avoid vibrations, consider acoustic rubbers. More details

shipment in 24/48h
Your orders are shipped
Customer service
Our teams are at your disposal from Monday to Friday from 9am to 6pm
D.T.U. Standards
All our products comply with current standards
secure payment
Our site is protected by an SSL certificate
the guarantees plots-discount.com

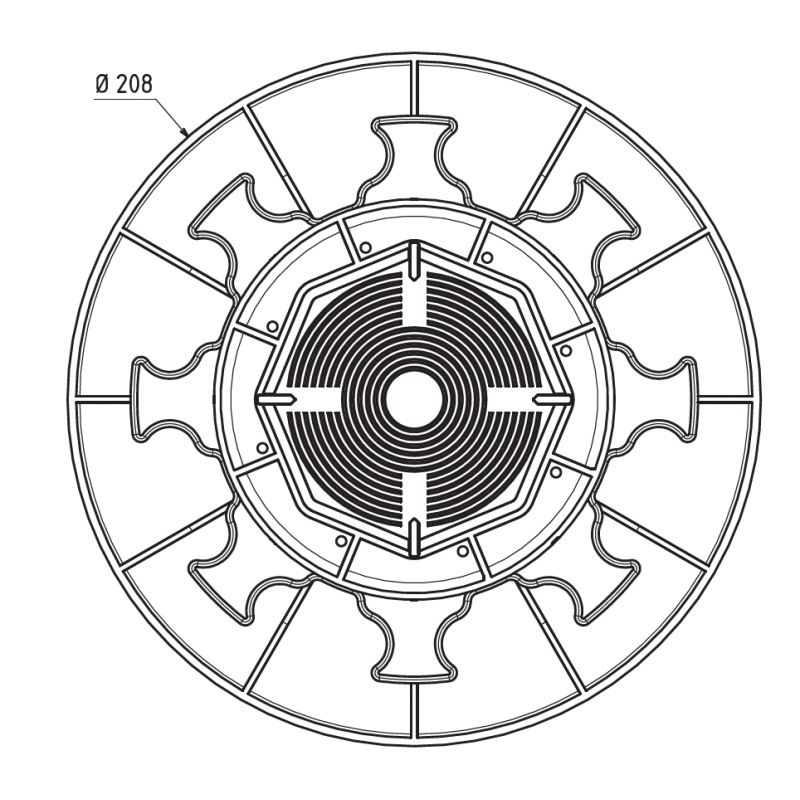

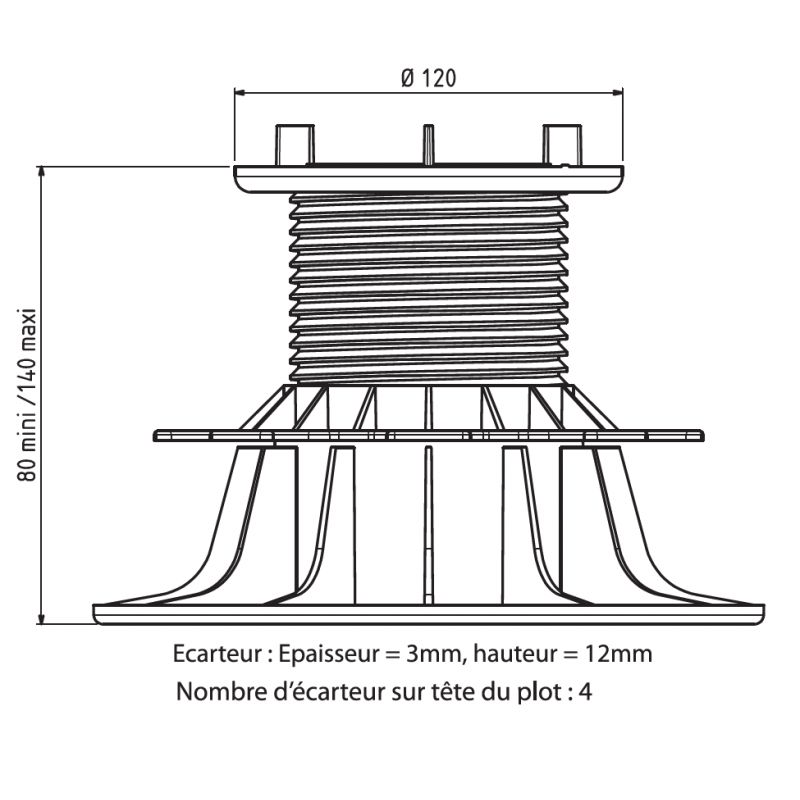

Dessin technique du plot terrasse dalle Essentiel 80/140 mm de Jouplast

Pedestal for tiled terrace adjustable from 80 to 140 mm - Jouplast

The Jouplast Essential paving terrace pedestal is an adjustable pedestal from 80 to 140 mm which perfectly adapts to the desired height. This paving pedestal is designed to accommodate a terrace made of concrete paving, outdoor tiles, porcelain stoneware and gratings. To meet the requirements of both individuals and professionals, Jouplast has designed a paving pedestal that is easy to handle and simple to install!

The advantages of the Jouplast 80/140 mm paving terrace pedestal

  • Speed and ease of installation
  • Installation without fixing or joint
  • Manual and precise height adjustment thanks to the blue nut
  • Frost and UV resistant
  • Allows air to circulate under the structure
  • Allows the passage of cables and pipes
  • Withstands more than a ton of load
  • Complies with DTU 43.1

Tips for laying a tiled terrace on pedestals

  • The paving terrace pedestal is intended for outdoor and pedestrian use
  • Provide an inclination of 1 cm per linear meter to promote the evacuation of rainwater, regardless of the support;
  • It is mandatory to use self-supporting pavings, of class T7 or T11 according to standard NF EN 1339 or F+;
  • Whether the ground is composed of grass, earth, gravel or concrete, the adjustable terrace pedestal can be installed without difficulty provided that the ground is stable and flat.

Steps for laying a terrace on a tiled pedestal

1/ Ground preparation

The implementation is simple and fast. Indeed, before laying the first pedestal for tiling on the ground, it is mandatory to prepare the ground that will accommodate your future terrace. This step guarantees the durability over time of your slab terrace on pedestals. Indeed, on unprepared ground, your terrace on pedestals can move depending on the weight and weather conditions. In order to avoid this, carry out a compliant, fast and economical site preparation!


Here is the necessary for this preparation:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Gravel


To do this, just follow these instructions to the letter if your terrace is going to come to life on a grass pitch:

  1. Dig the ground for 15 cm;
  2. Place a geotextile felt there to eradicate the growth of weeds and save you additional maintenance;
  3. Fill the hole with a 15 cm layer of gravel;
  4. Compact and make sure everything is level.

Depending on the nature of the ground, a draining foundation may be necessary. To do this, first lay down a layer of 30/60 or 40/80 crushed stone.

If the surface obtained still has some defects, you can make a laying bed with quarry sand or type 0/4 crushed sand.

2/ Lay the pedestals and paving tiles

Getting started with the tiled terrace pedestal is within everyone's reach! No additional tools or heavy earthworks are required. The pedestal is placed directly on the ground without any fixing after having correctly prepared the ground. Laying tiling on pedestals is accessible to all and allows quick and easy construction! Count 1 pedestal per corner, i.e. 4 pedestals for a tiled slab. For slabs from 60 x 60 cm, add one or two central studs by breaking the spacers.


For the installation of pedestals and tiling, follow these 4 steps and get a resistant terrace out of the ground:

  1. Start by positioning the pedestals on the ground following the layout plan that you have previously drawn up. Count 1 pedestal at each corner, i.e. 4 pedestals per slab for dimensions up to 60 x 60 cm. Beyond that, for large format pedestals, provide one or two central blocks, to be positioned by breaking the spacers;
  2. Adorn the head of the studs with an acoustic rubber to avoid vibrations and offer you optimal sound comfort;
  3. Lay the paving tiles against the spacers;
  4. Finally last step: turn the nut to adjust the height of the pedestal to the desired level.

Accessories for laying a tiled terrace on a Jouplast pedestal

  • Extensions for terrace pedestals of 10 mm25 mm or 60 mm to increase the final height of the pedestal without changing it
  • The pedestal plate to hold the pedestals against a wall and prevent it from tipping
  • The side cladding support to ensure the maintenance and installation of a skirting board
  • Acoustic rubber to obtain optimal acoustic comfort on the slab terrace by attenuating vibrations
  • The Jouplast slab carrier to move the pedestals without hurting your back.

Technical characteristics

  • Complies with DTU 43.1
  • Load resistance greater than 1 ton
  • Frost and UV resistant
  • Flange diameter: 208 mm
  • Head diameter: 120 mm
  • Adjustable height: 80 to 140 mm


The steps of installation a terrace on pedestals

The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!



step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.

step Once the installation is level, place the tiles on the head of the pedestals.

step 3Then adjust the height of the pedestals and check everything one last time with a spirit level.

step 4Finally, make the cuts to close the terrace laterally.


Installation of the pedestals

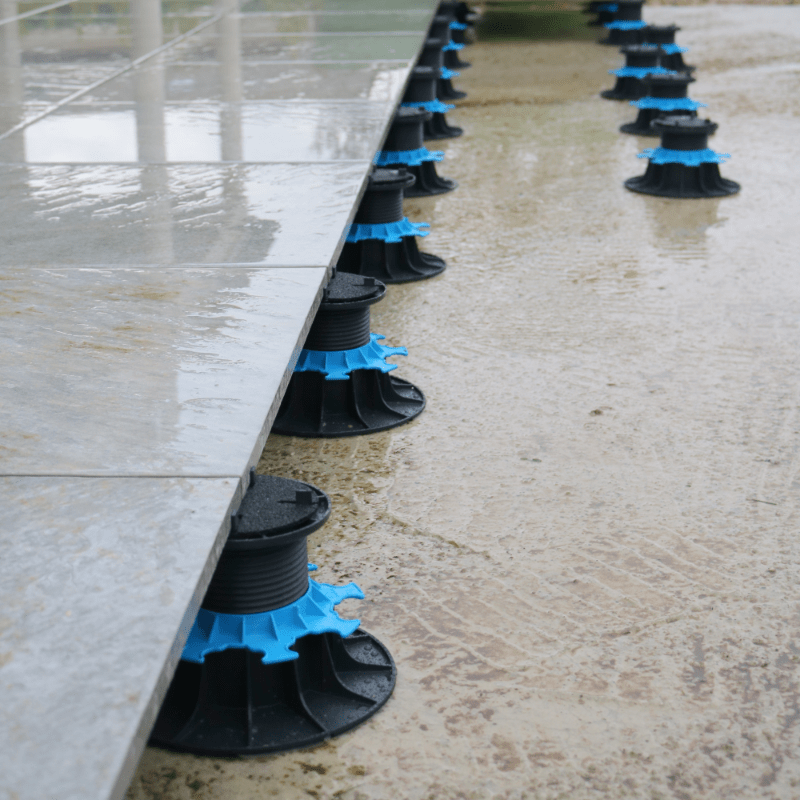

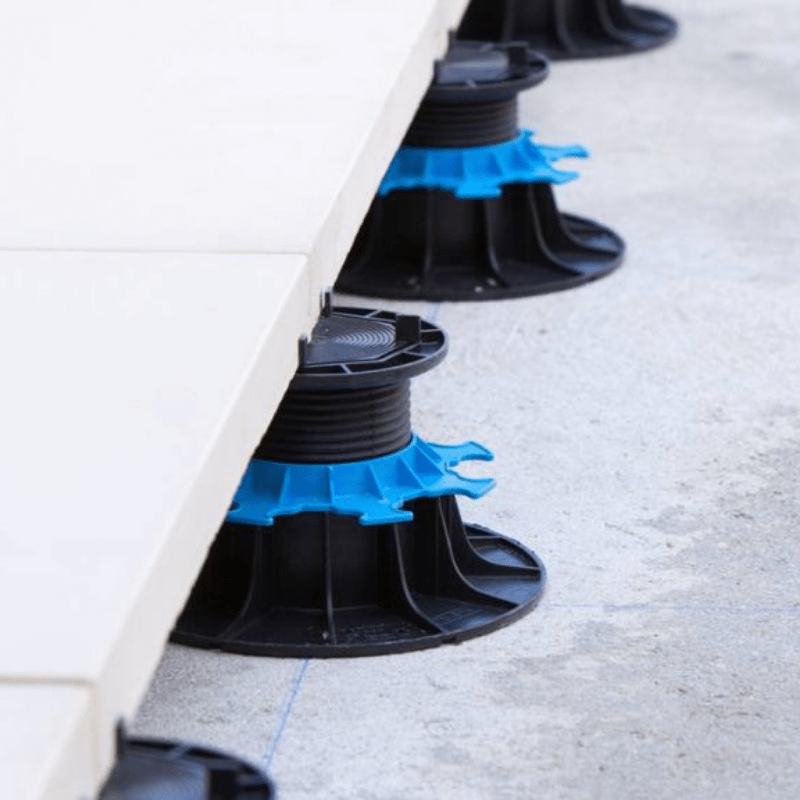

Installation of slabs on pedestals
Adjusting the pedestals
Finishing the terrace
Data sheet

Model :


Adjustable paving terrace pedestal 80/140 mm - ESSENTIEL range - Jouplast


JOUPLAST
ColorBlack
MaterialPolypropylene
Warranty2 years warranty
OriginManufactured in France
ConformityCompliance with the DTU 43.1
ResistanceResistant to acid and basic solutions, atmospheric agents, temperatures between -30°C and 60°C
LoadResists the test of crushing with a load superior in 1 ton
BrandJouplast
TypeAdjustable
Adjustable height80 to 140 mm
SH Code39259010
Country of OriginUE
Spacer thickness3 mm
Installation surfaceLoose soil
Type of settingManual
Download
Find all the documents that will be useful to you for the realization of your projects
Videos & tutorials
How do I use the terrace pedestals? What is the difference between a wood pedestal and a slab pedestal? How do you adjust your pedestals to the right height?

Find the answers to your questions on video with tips and tricks from our experts.
How to install your terrace on pedestals?

Ceramic Terrace on pedestals
