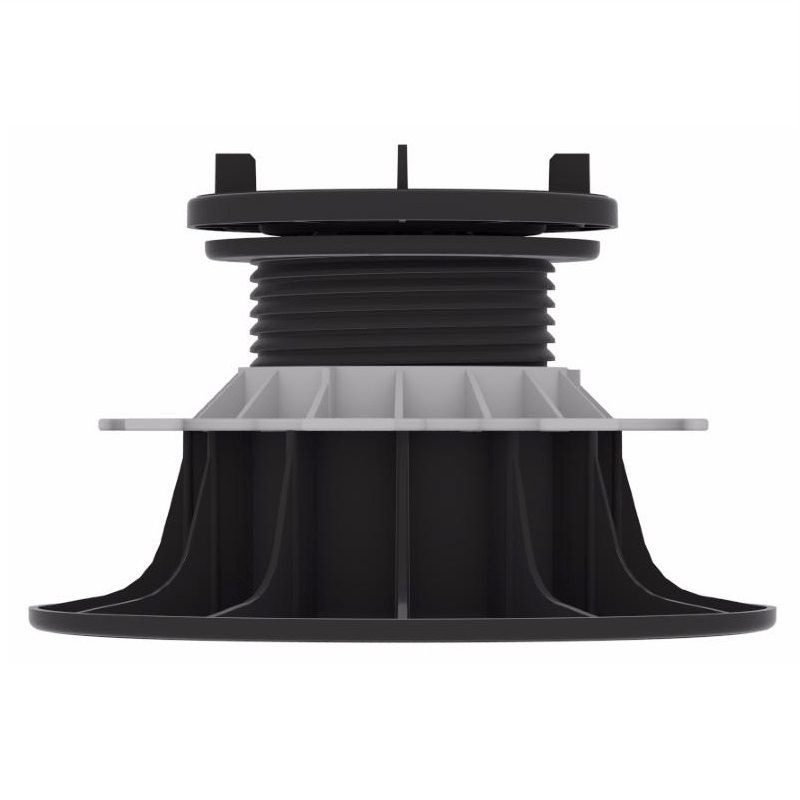

Self-leveling paving terrace pedestal 95/155 mm - ESSENTIEL range - Jouplast

Reference :

Self-leveling pedestal for paving terrace: tiled, concrete or duckboard. Function: catches up to 5% slope over 1 meter. Designed for laying on uneven or sloping ground. Height adjustable from 95 to 155 mm with the ring located under the head of the pedestal. The leveling is done automatically via the head of the self-leveling pedestal. Intended for pedestrian use only. Made in France, compliant with DTU 43.1 and 51.4. Max load: 1 ton. For more comfort, consider the acoustic rubber sold separately. More details

4,20€

Mise en expédition 24/48 heures

Ces produits pourraient aussi vous intéresser :

Meilleure vente
Available stock

Meilleure vente
Available stock

Available stock






Dessin technique du plot dalle autonivelant Jouplast Essentiel 95/155 mm

Self-leveling pedestal 95 155 mm for pavings, tiles or ceramics - Jouplast

Jouplast ESSENTIEL self-leveling pedestal from 95 to 155 mm for tiled terrace.

The Jouplast self-leveling pedestal has been specially designed to adapt to ground with a slope of up to 5% or poorly leveled ground. The head mounted on a pivot makes it possible to automatically balance the differences in the level of the environment without adding additional equipment. Your paving terrace is thus perfectly flat. Adjustable, Jouplast's self-leveling pedestal adjusts to the nearest millimeter from 95 to 155 mm. This paving terrace pedestal accommodates outdoor tiles, porcelain stoneware, concrete pavings and wooden gratings.

The advantages of Jouplast's 95/155 mm self-leveling paving terrace pedestal

  • Speed and ease of installation
  • Laying on uneven or uneven ground
  • Allows you to compensate or create a slope of up to 5% thanks to its head mounted on a pivot
  • Installation without fixing or seal
  • Has 4 breakable 3 mm thick spacers to facilitate installation
  • Manual and precise height adjustment thanks to the gray nut

Tips for laying a tiled terrace on pedestals

  • Tips for laying a tiled terrace on pedestals
  • The self-leveling paving terrace pedestal is intended for outdoor and pedestrian use
  • This self-leveling pedestal can only be used on uneven, uneven ground such as crushed gravel.
  • However, be sure to prepare the ground because unprepared ground can change over time and your terrace can move depending on the weight and weather conditions. For a terrace that lasts over time, prepare your ground.
  • Remember that regardless of the support, there must be an inclination of 1 cm per linear meter in order to avoid the stagnation of rainwater;
  • Be sure to lay self-supporting pavings, class T7 or T11 according to standard NF EN 1339 or F+;
  • Get a paving carrier to make it easier to move and lay the outdoor paving tiles on the terrace.

Steps for laying a paving terrace on a self-leveling pedestal

1/ Preparing the ground

Unlike other laying methods that require time and a substantial budget, the self-leveling pedestal method requires little ground preparation. Backfill with crushed gravel of the 30/60 or 40/80 type being ideal for laying a paving terrace on self-leveling pads, here is the necessary equipment:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Crushed gravel

The preparation of the ground is carried out through only 4 steps:

    1. Dig the ground for 15 cm;
    2. Place a geotextile felt there to eradicate the growth of weeds and save you additional maintenance;
    3. Fill the hole with a 15 cm layer of draining gravel of the 30/60 or 40/80 type;
    4. Compact everything.

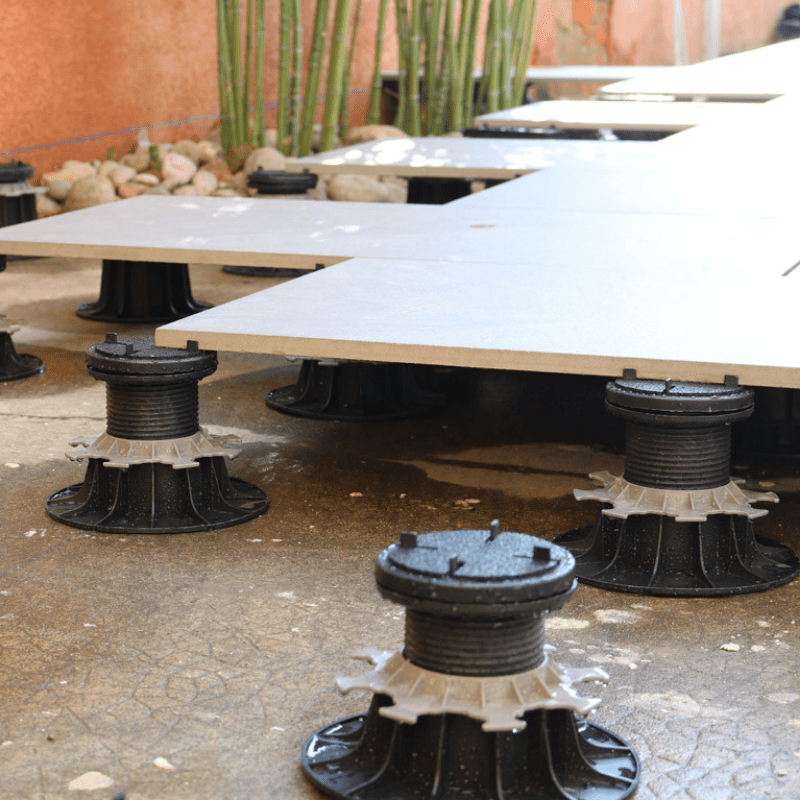

          2/ Lay the pedestals and the paving tiles

          Laying the decking is just as easy and only requires 4 steps.

          For your layout plan, remember that it takes 1 pedestal per corner, i.e. 4 pedestals for a tiled paving. For large format pavings from 60 x 60 cm, it is recommended to reinforce the installation by adding 1 or 2 additional pedestals in the center of the paving. To do this, break the spacers.

          In one to two days maximum, your outdoor tiled terrace on pedestals is laid. Yes, laying a paving terrace on self-leveling pedestals is quick and easy:

          1. Lay the self-leveling pedestals directly on the ground, respecting the layout plan;
          2. Add an acoustic rubber on the head of each of the pedestals;
          3. Lay the tile pavings against the spacers;
          4. Turn the gray nut to adjust the height of the pedestal to the desired level.

          Accessories for laying a tiled terrace on a Jouplast pedestal

          Technical characteristics

          • Complies with DTU 43.1
          • Load resistance greater than 1 ton
          • Frost and UV resistant
          • Flange diameter: 208 mm
          • Head diameter: 120 mm
          • Adjustable height: 95 to 155 mm

          The steps of installation a terrace on pedestals

          The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!



          step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.

          step Once the installation is level, place the tiles on the head of the pedestals.

          step 3Then adjust the height of the pedestals and check everything one last time with a spirit level.

          step 4Finally, make the cuts to close the terrace laterally.


          Installation of the pedestals
          Installation of slabs on pedestals
          Adjusting the pedestals
          Finishing the terrace
          Data sheet

          Model :


          Self-leveling paving terrace pedestal 95/155 mm - ESSENTIEL range - Jouplast


          JOUPLAST
          MaterialPolypropylene
          Warranty2 years warranty
          OriginManufactured in France
          ConformityCompliance with the DTU 43.1 and 51.4
          ResistanceResistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
          LoadResists the test of crushing with a load superior in 1 ton
          BrandJouplast
          TypeSelf-levelling
          Adjustable height95 to 155 mm
          SH Code39259010
          Country of OriginUE
          Spacer thickness3 mm
