60 mm riser compatible with joist pedestal and Jouplast paving
The extension for terrace pedestal allows the height of a joist pedestal or a paving pedestal to be increased by an additional 60 mm. This accessory is compatible with the laying of terraces on pedestals for pedestrian use, whether in tiles, wood or composite. This accessory meets the constraints of the site, whether to make adjustments or to make up for heights.
Use of the 60 mm extension for terrace on pedestal
This accessory is placed directly between the base of the pedestal and the head of the latter and is easily positioned by fitting the lugs provided for this purpose. Position the extension and then adjust the height of the pedestal using the adjustment ring located under the head of the pedestal.
You can stack up to 4 risers of 60 mm to add a maximum of 240 mm to the final height of your terrace pedestal, whether it is a paving pedestal or a joist pedestal. Please note that the 60 mm extension is only compatible with terrace pedestals greater than or equal to 50 mm in height.

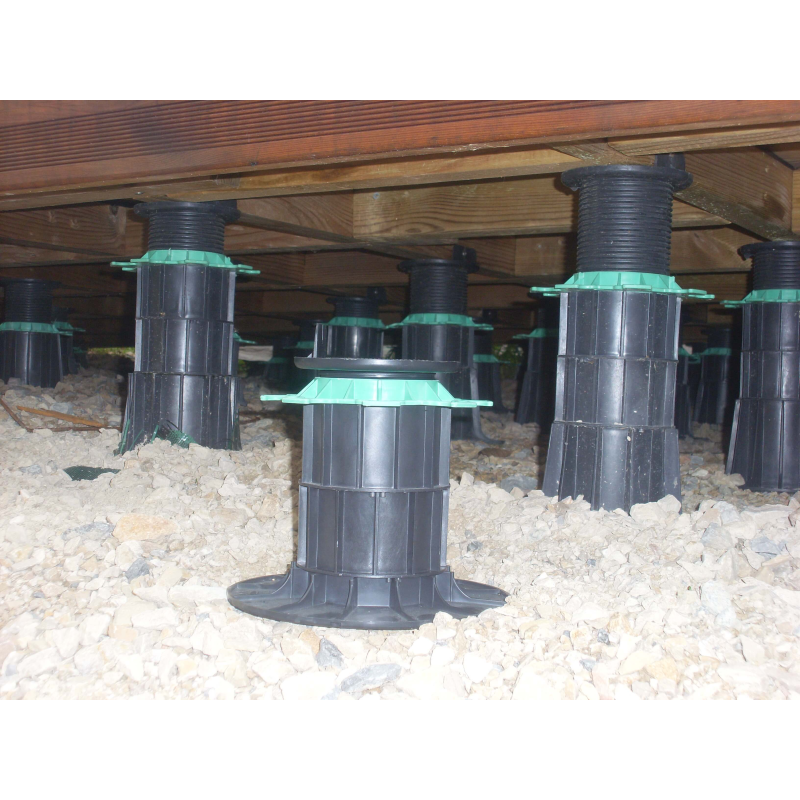

The extension for pedestal can be used both on a standard pedestal and with a self-leveling pedestal, thus allowing the realization of all your terrace projects on pedestal, whether your ground is perfectly loose or on a slope.

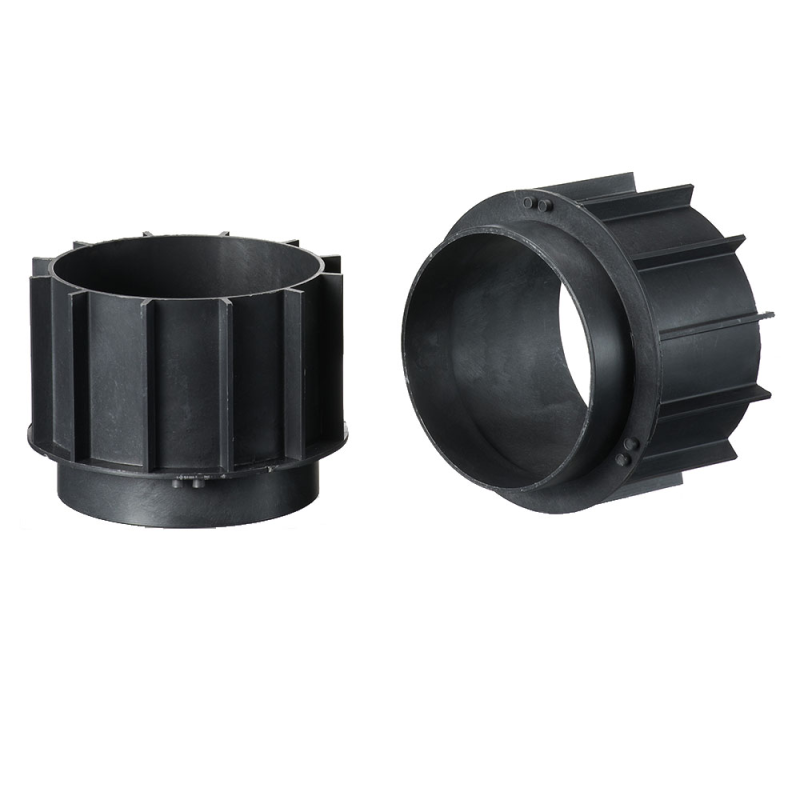

Characteristics of the 60 mm riser for terrace pedestal
- Made of filled polypropylene, this accessory is robust and resistant to loads up to 1 ton. It was designed using a technique based on injection, which gives it its properties.
- Resistant, the pedestal extension withstands temperature variations from -30° to +60° without deterioration.
- Its diameter is 120 mm and measures 60 mm in height.
- Compatible only with Jouplast brand terrace pedestals.
60 mm extension for ESSENTIEL terrace pedestal - Jouplast
|Warranty||2 years warranty|
|Origin||Manufactured in France|
|Conformity||Compliance with the DTU 43.1 and 51.4|
|Resistance||Resistant to acid and basic solutions, atmospheric agents, temperatures between -30°C and 60°C|
|Load||Resists the test of crushing with a load superior in 1 ton|
|Use||Gratings, Porcelain stoneware tiles, Concrete slab, Wooden slab, Composite slabs|
|Adjustable height||Fix 60 mm|
|Max number of extensions/pedestal||4 extensions|
|Country of Origin||UE|
