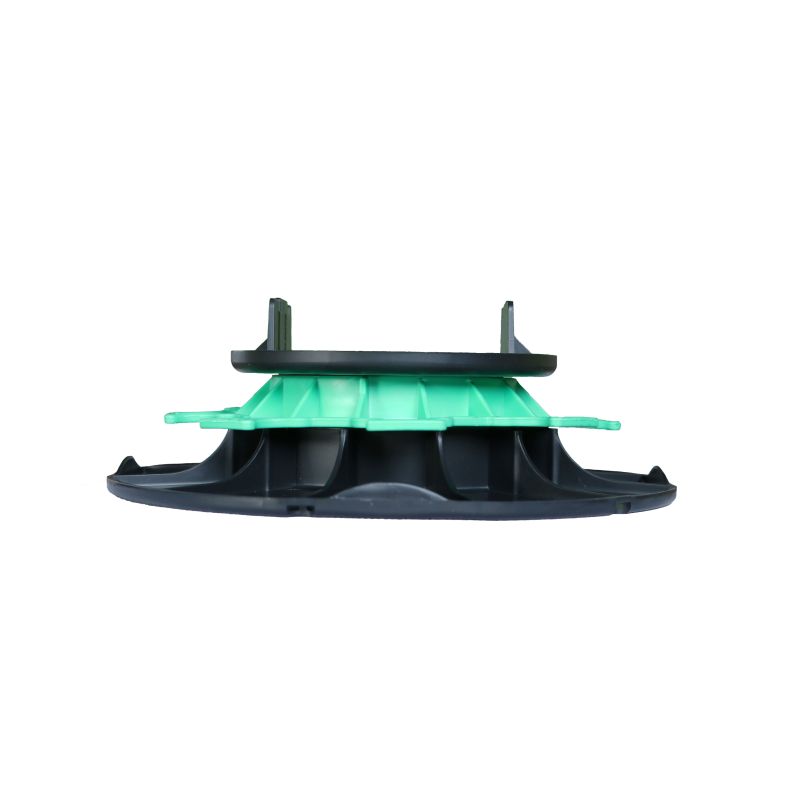

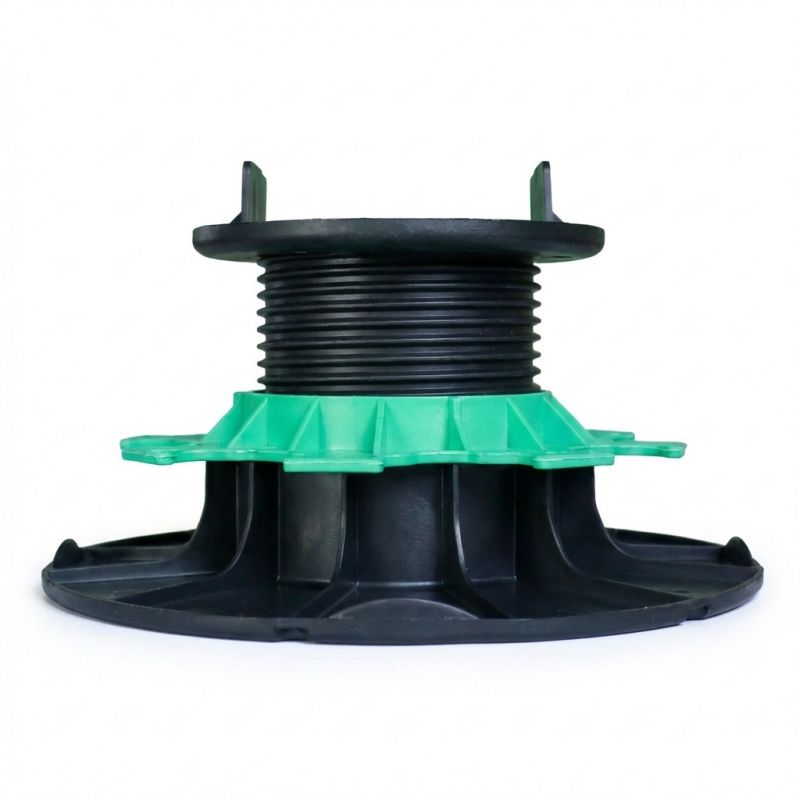

Adjustable wooden terrace pedestal 50/80 mm - ESSENTIEL range - Jouplast

JOU-IH050080LS10000
JOUPLAST

Pedestal for JOUPLAST 50/80 mm joist. Adjustment to the millimeter. Complies with DTU 43.1 and 51.4 standards. Resistant to crushing test with a load greater than 1 ton. Resistance to acid and basic solutions, resistant to atmospheric conditions such as frost and UV. Made in France.

More details


Expédition des commandes en 24/48h



Livraison offerte dès 500€



Paiement en 3 ou 4x avec Oney



Service client du lundi au vendredi

Meilleur prix garanti
€1.85
Available stock
23164 Items
Packaging
Quantity

Calculate quantities
You might also like
Description
Plot lambourde Jouplast 50/80 et ses spécificités techniques

Adjustable terrace pedestal from 50 to 80 mm for wooden terrace Jouplast

The wooden terrace pedestal is a pedestal for joists, designed to create the foundations of wooden or composite terraces. This pedestal is adjustable in height from 50 to 80 mm to adapt perfectly to your land. Installing a wooden terrace on pedestals is very easy! Jouplast's Essentiel wooden terrace pedestal can be placed on any type of solid support. Thus, install your wooden terrace on Jouplast pedestals without earthworks or structural work or even without the use of heavy equipment.

The advantages 50/80 mm wooden terrace pedestals Jouplast

  • Quick and easy to install
  • Manual and precise height adjustment thanks to the green nut
  • Frost and UV resistant
  • Allows air to circulate under the structure
  • Allows the passage of cables and pipes
  • Withstands more than a ton of load
  • Complies with DTU 51.4 and 43.1

Advice for laying a terrace on a wooden or composite pedestal

  • The laying of terrace pedestals is only done on stabilized ground or an existing concrete paving
  • Jouplast wooden terrace pedestals are designed for pedestrian use only.
  • The construction of the foundations of your terrace must imperatively be done with joists in natural wood or aluminum and not in composite.

The steps for laying a wooden terrace on pedestals

1/ Ground preparation

Laying a wooden deck on pedestals is easy! You can install your wooden or composite deck on any type of ground provided it is stabilized. The wide circular base of the Jouplast pedestal is 208 mm. It allows an optimal maintenance of the structure which is stabilized.

To guarantee the stability and resistance of your wooden deck, it is necessary to prepare the ground. No need, however, to pour a concrete slab! Yes, unlike other terrace laying methods, laying on pedestals requires basic and inexpensive ground preparation. With wooden terrace pedestals, laying your wooden or composite slat terrace is simpler and faster!

Here is what you need for this preparation:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Gravel


4 steps are enough to prepare your ground to accommodate a wooden terrace on adjustable pedestals:

  1. Dig the ground for 15 cm;
  2. Place a geotextile felt there to eradicate the growth of weeds;
  3. Fill the hole with a 15 cm layer of gravel;
  4. Compact and make sure everything is level.

2/ Lay the pedestals, joists and decking boards

Laying a wooden terrace on Jouplast pedestals is extremely easy to do since it suffices to lay them on the ground without any fixings. Only 4 construction steps are enough to enjoy a solid and durable structure:

    1. Determine the location of the studs and their spacing. Once this layout plan has been completed, position the pedestals directly on the ground and adjust them to the necessary height using the adjustment nut for an adjustment to the nearest millimetre. Don't forget to use your spirit level to check the flatness of the foundation!
    2. Place the joists on the head of the pedestals. The joists must be made of natural wood and not composite which undergoes a deformation caused by the heat jeopardizing the entire structure;
    3. Screw the joists onto the lug provided for this purpose to ensure excellent support for your wooden terrace on pedestal. Do not hesitate to recheck the flatness of your terrace foundations. It is indeed possible to increase or decrease the height of the pedestals even after fixing the joists. Do not deprive yourself of it;
    4. Secure the wooden boards to the joists using wood screws.

          Accessories for laying wooden decks on pedestals Jouplast

          Technical characteristics

          • Complies with DTU 51.4 and 43.1
          • Load resistance greater than 1 ton
          • Frost and UV resistant
          • Flange diameter: 208 mm
          • Head diameter: 120 mm
          • Adjustable height: 50 to 80 mm
          Product Details
          JOU-IH050080LS10000
          3441290000153
          23164 Items

          Data sheet

          Height
          From 4 to 8 cm
          Color
          Black
          Material
          Polypropylene
          Guarantee
          2 years warranty
          Origin
          Manufactured in France
          Conformity
          Compliance with the DTU 43.1 and 51.4
          Resistance
          Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
          Load
          Resists the test of crushing with a load superior in 1 ton
          Brand
          Jouplast
          Type
          Adjustable
          Use
          Composite slabs
          Wooden slab
          Adjustable height
          50 to 80 mm
          Qté lot
          60
          trad_lot
          A batch of
          SH Code
          39259010
          Country of Origin
          UE
          Best-price
          Yes
          Installation surface
          Loose soil
          Type of setting
          Manual
          Attachments
          Download
          FT_PLOT HL_FR_2112

          FT_PLOT HL_FR_2112_en
