Wooden terrace pedestal adjustable from 40 to 50 mm - B40 - Vérindal

Name: Wooden terrace pedestal adjustable from 40 to 50 mm - B40 - Vérindal
Brand: Verindal
SKU: VER-LAMB40-DECL
Price: 1.9 EUR
Availability: InStock
Rating: 3.67 (3 reviews)

Reference VER-LAMB40

Brand Verindal

The Vérindal+ B40 joist pedestal adjusts from 40 to 50 mm and accepts up to 3 R20 extensions, making it ideal for medium-height wooden or composite decks. Its 3-hole drilled tab lets you screw the joist directly onto it. Laid loose on the ground, it supports 1 tonne at the centre, weighs 194 g and is made in France, compliant with DTU 43.1 and 51.4.

More details

Orders shipped within 24/48 hours

Best prices

Pay in 3 or 4 installments with Oney

€1.90

Tax included

In Stock

In stock: 556 Items

Packaging

Quantity

Calculate quantities

Description

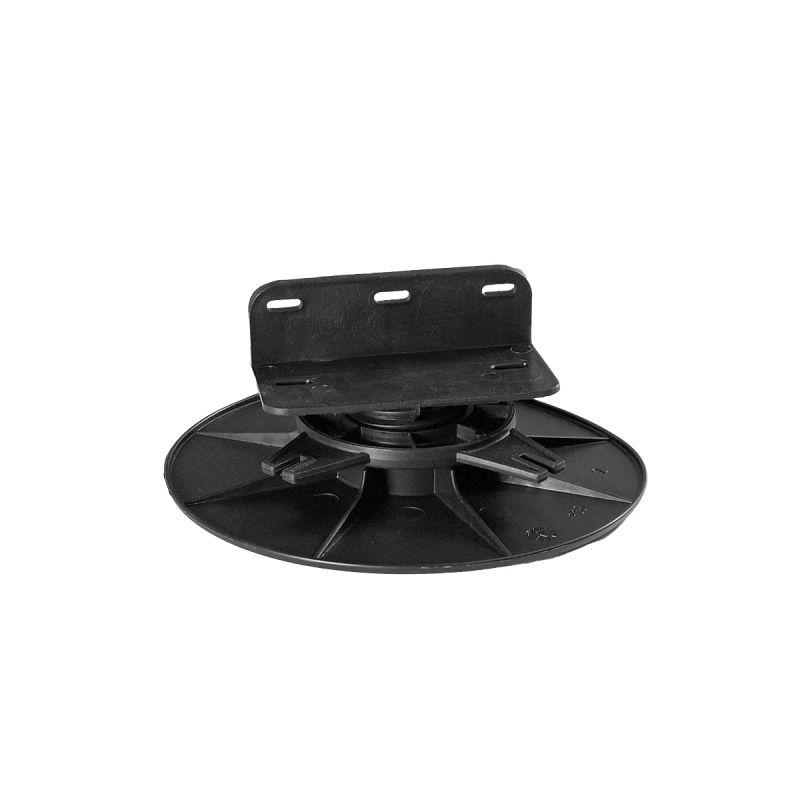

Adjustable wooden decking pedestal B40, Vérindal+

Adjustable height from 40 to 50 mm

The Vérindal+ B40 joist pedestal combines French quality and the lowest price. A pedestal for medium heights, it lets you build a wooden or composite deck laid directly on the ground, without glue or fixing.

Guaranteed value for money, made in France, compliant with DTU 43.1 and 51.4.

40 mm Minimum height with the pedestal at its lowest setting	50 mm Maximum standard height (up to 3 R20 extensions possible)	120 mm Length of the drilled head tab, with 3 fixing holes
1 tonne Load capacity per pedestal, at the centre	194 g Total weight of the assembled pedestal (base + nut + screw)	DTU 43.1 Compliant with DTU 43.1 and 51.4, made in France

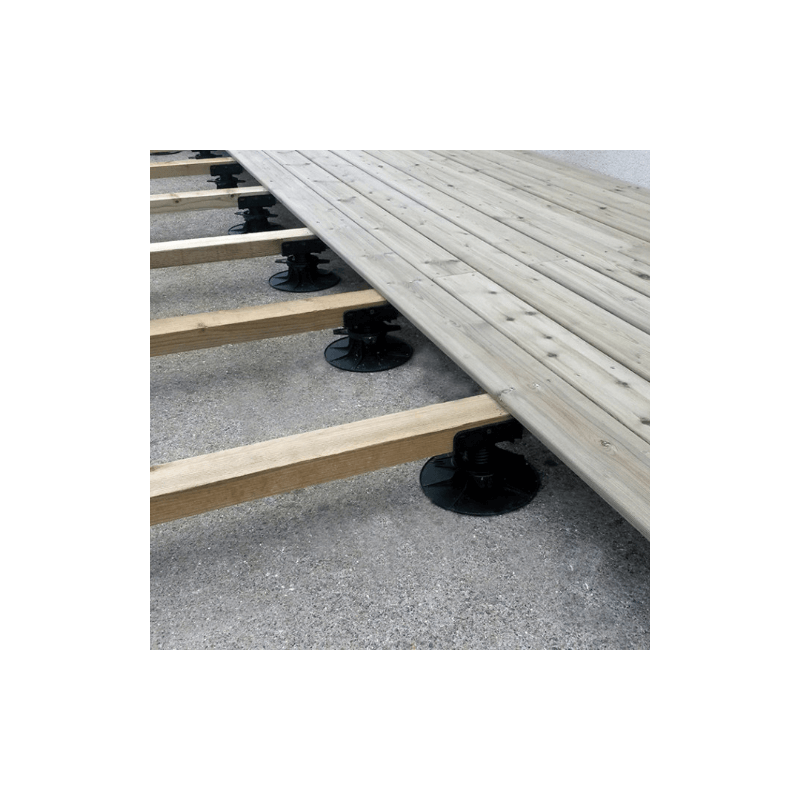

A joist pedestal for medium heights

The Vérindal B40 pedestal is designed to support a deck in natural wood or composite that needs levelling from 40 to 50 mm. Strong and durable, it supports a load of 1 tonne per pedestal at the centre and withstands both frost (-20°C) and UV (+80°C).

Like the other pedestals in the B range, its head is fitted with a 3-hole drilled tab, which lets you screw the joist directly onto it, with at least two fixing points.

The pedestal rests directly on the ground, without fixing, and is simply held in place by the weight of the joist on top of it. This loose-lay installation also ensures good ventilation of the structure.

Need a different height?

The Vérindal B range covers several heights, all with the same drilled-tab head. Each model has its own extension:

Pedestal	Adjustment height	Compatible extension
B20 pedestal	20 to 30 mm	RB10 extension (up to 40 mm)
B40 pedestal	40 to 50 mm	R20 extension (3 maximum)
B50 pedestal	55 to 75 mm	R20 extension (3 maximum)
B70 pedestal	75 to 115 mm	R20 and R60 extensions
B100 pedestal	105 to 170 mm	R20 and R60 extensions
B150 pedestal	160 to 230 mm	R20 and R60 extensions

B40 pedestal components

Technical drawing of the B40 wooden decking pedestal Vérindal

The B40 pedestal is delivered assembled and consists of three main parts, all in 20% talc-filled polypropylene (recycled):

1	BH40 base : base of the pedestal Ø200 × 19 mm, 104 g. Wide base for optimal stability on the ground.
2	EH40 nut : adjustment ring Height 24 mm, 40 g. Screws onto the base to adjust the height precisely.
3	TB40 screw : tab head L120 × W61 × H41 mm, 50 g. Tab drilled with 3 holes for screw-fixing the joist.

Total assembled weight: 194 g

Tip: draw up a layout plan

Before starting the job, draw a scale plan of your deck to calculate precisely the number of B40 pedestals, joists and wooden boards required.

Recommended spacing

Place the B40 pedestals every 50 cm along a first row, then step back 70 cm to lay a new row along the length of the joists.

Steps for building a wooden deck with B40 pedestals

1. Prepare the ground On a concrete slab or an existing deck, install directly. On bare soil: dig 15 cm, lay a geotextile felt, backfill with crushed gravel, compact and check the level.	2. Position the pedestals on the ground Lay a first row of pedestals every 50 cm, then a second row 70 cm further on, and so on up to the far end of the deck.
3. Fix the joists Lay the joists on the pedestal heads and screw them down at a minimum of two points through the drilled tab. Set the height allowing for a slight slope for water drainage.	4. Lay the decking Lay the boards perpendicular to the joists, starting against a wall with a 5 mm expansion gap. Screw 20 mm from the edge with special decking screws.

Adjusting the height with the R20 extension

The B40 pedestal adjusts natively from 40 to 50 mm. It is compatible with the R20 extension (the same one used on the H40 and H50 slab pedestals), with a maximum of 3 extensions per pedestal.

R20 20 mm extension

View product

An extension shared with the B50, H40 and H50 pedestals

The R20 extension fits on the head of the B40 pedestal and adds 20 mm of height each time, up to 3 stacked extensions. The B20 pedestal has its own dedicated extension, the RB10.

Compatible accessories for this pedestal

Slope correction

Slope regulator Vérindal+, corrects slopes up to 10%

Shim

8 mm shim, for fine height adjustment

Main applications

Medium-height wooden decks Height of 40 to 50 mm, ideal for a more marked levelling on a concrete slab or stabilised ground.	Natural wood and composite Suitable for natural wood and composite boards, laid on joists.
Renovating an existing deck Laid directly on an existing deck or a concrete slab, without major works.	Drainage and ventilation The open structure of the pedestal prevents moisture rising under the wooden deck.

Frequently asked questions

Can the B40 pedestal be laid without glue or ground fixing?

Yes. The pedestal rests directly on the ground and is simply held in place by the weight of the joist and the decking on top, with no glue or mechanical fixing into the ground.

How are the joists fixed to the pedestal?

The head of the B40 pedestal has a tab drilled with 3 holes. The joist rests on it and is screwed down at a minimum of two fixing points.

How can I go above 50 mm in height?

By adding the R20 extension (20 mm), up to 3 stacked extensions per pedestal.

Which extension should I use with the B40 pedestal?

The B40 pedestal uses the R20 extension, common to the B40, B50, H40 and H50 pedestals, with a maximum of 3 extensions per pedestal. The RB10 extension is dedicated to the B20 pedestal.

Which decking can be laid on the B40 pedestal?

The B40 pedestal is suitable for natural wood and composite boards, laid on joists.

What spacing should be used between pedestals?

Space the pedestals 50 cm apart along a first row, then place a new row 70 cm further on along the length of the joists.
