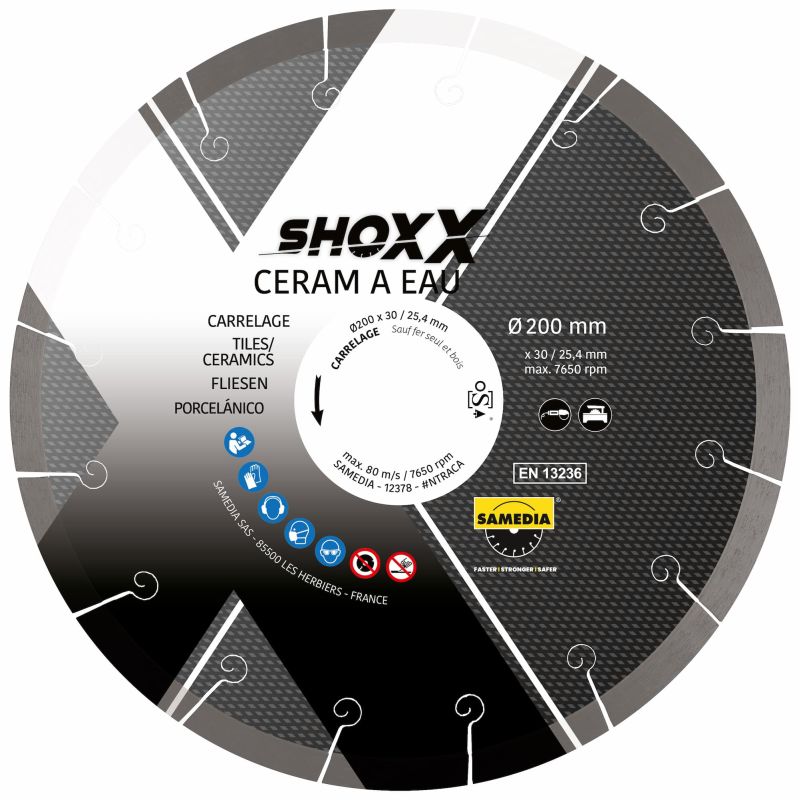

SAMEDIA Shoxx Ceram Water-Cooling Diamond Blade – 200 mm

Technological excellence for professional tiling

The Shoxx Ceram water-cooling disc represents the pinnacle of diamond tool engineering for precision cutting. Specifically designed for wet-cutting bridge saws and tile cutters, it utilizes cutting-edge aligned-diamond technology. This innovation ensures that diamonds are positioned to maintain a constant and fluid penetration into the material, significantly increasing the tool's lifespan while delivering unmatched cutting speed.

Guaranteed high-quality finishing

This blade is meticulously engineered to eliminate edge chipping, even on the most delicate surface coatings:

• Ultra-clean cutting: Guaranteed chip-free performance for perfect finishes from the very first pass, eliminating the need for secondary grinding or polishing.

• Joined segment geometry: The specialized segment design provides maximum stability during the cut, ensuring perfectly straight lines and a superior aesthetic result for narrow grout joints.

• Professional grade: An "expert-level" tool optimized for intensive, daily use on high-end residential and commercial construction sites.

Versatility across ceramics

While specialized for high-density porcelain, this disc is highly effective across a range of high-quality materials:

• Optimal applications: Porcelain stoneware, stoneware, ceramic wall tiles (faïence), and standard floor tiles.

• Possible applications: Marble, hard limestone, and fiber cement.

Technical characteristics

• Diameter: 200 mm

• Bore size: 30 / 25.4 mm

• Segment height: 8.5 mm

• Segment thickness: 2 mm

• Number of segments: 16

• Cutting method: Wet use exclusively

• Technology: Shoxx aligned diamonds (Patented)

• Safety certification: Compliant with oSa and EN 13236 standards

• Brand: Samedia (Shoxx high-end range)

Professional tips

• Wet-cutting protocol: For maximum segment longevity and edge quality, maintain a steady flow of water to the cutting edge to facilitate cooling and debris removal.

• Precision alignment: Thanks to its rigid steel core and stable segment design, this 200 mm blade is perfect for long, straight cuts in large-format porcelain slabs.

• Speed vs. pressure: Let the aligned diamonds do the work. Applying moderate, consistent pressure will yield a better finish and prevent premature wear compared to forcing the blade.

• Maintenance: Periodically check the bore and flange for cleanliness to ensure the blade remains perfectly centered, preventing vibrations that could cause chipping.
