The galvanized steel connector, serves to adjust the height of foundation screws
Once the foundation screw is installed, it's time to move on to the installation of the wooden structure. The flat connector for horizontal wooden structures, Wood Basic, is designed to support terraces, garden sheds, and other small wooden constructions.

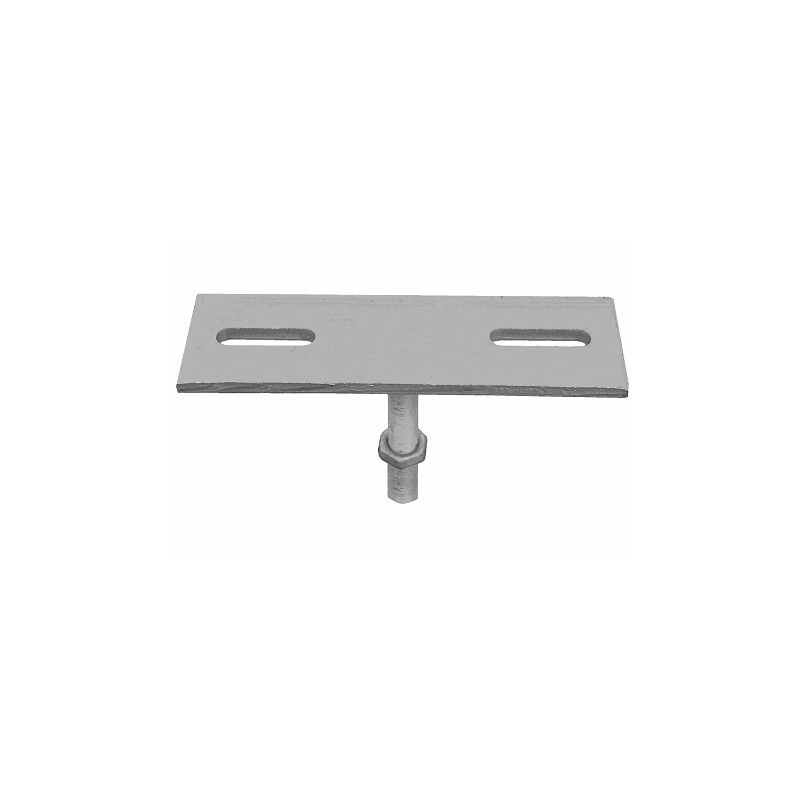

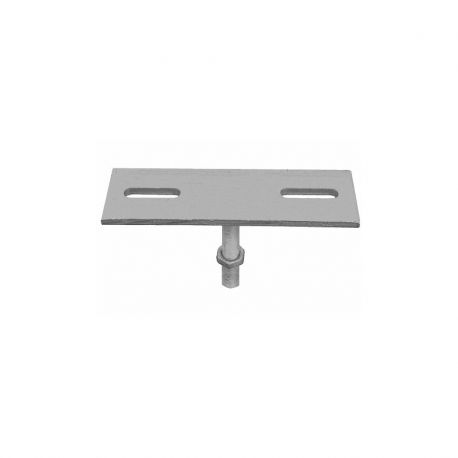

The galvanized steel connector, serves to adjust the height of foundation screws. It measures 160 mm long, 60 mm width, and 80 mm height, and it can be adjusted in height up to a maximum of 105 mm. This height adjustment is useful to correct any possible misalignment of the wooden terrace foundation screw through lateral adjustment. This last-minute modification helps maintain and provides lasting stability to the small outdoor construction while leveling it out.
This patented model connector made of hot-dip galvanized steel has undergone a DACROMET treatment. It is very easy to use. The connector should be installed in the Weasyfix foundation screw by using the M16 thread and is placed underneath the wood. This 0.89 kg connector is resistant to up to 2000 kg, it reinforces the entire structure and ensures your safety.

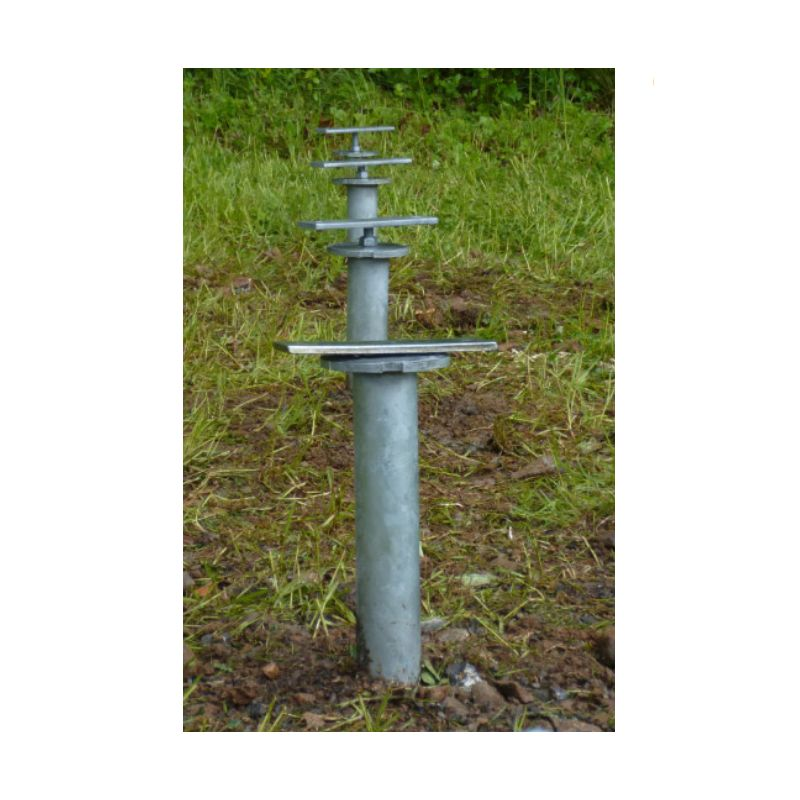

This steel connector is compatible with the FS550 wood terrace foundation screw, as well as with the following foundation screws: FS750, FS1000, FS1120, FS1250, FS1500, FS1750, EMB250, and Vertikit.
Model : WOODBASIC
Galvanized steel foundation screw connector WOOD BASIC - Weasyfix
|Use||Fondations et strucutres pour terrasses|
|Contenu||Connecteur en acier galvanisé réglable en hauteur pour structure en bois WEASYWOOD. Peut être combiné avec wsfxl-58/33 ou wsfxl-85/38|
Find all the documents that will be useful to you for the realization of your projects
C2 - WOOD BASIC
C2 - WOOD BASIC_enTélécharger
