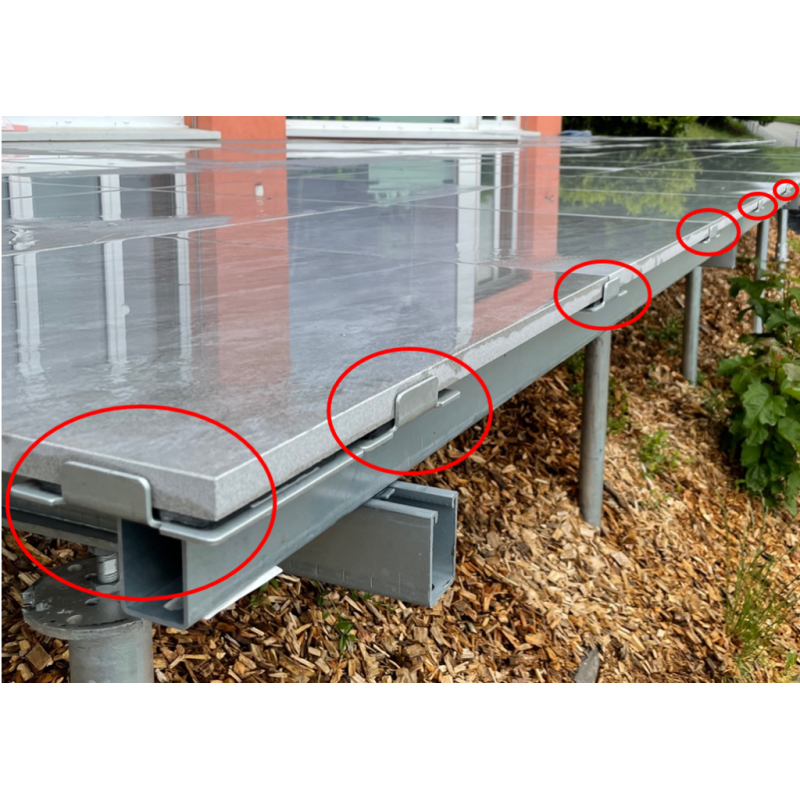

This 120mm side connector should be attached to the C-profile. It allows you to wide adjust the positioning of the tile in several ways, ensuring an easy installation. The ConnectStone C+ is equipped with a lateral stopper that is placed on the periphery of the terrace, preventing the tile from sliding laterally after installation. It also serves as a support for the vertical finishing with sheet metal.
Expédition des commandes en 24/48h
Livraison offerte dès 500€
Paiement en 3 ou 4x avec Oney
Service client du lundi au vendredi

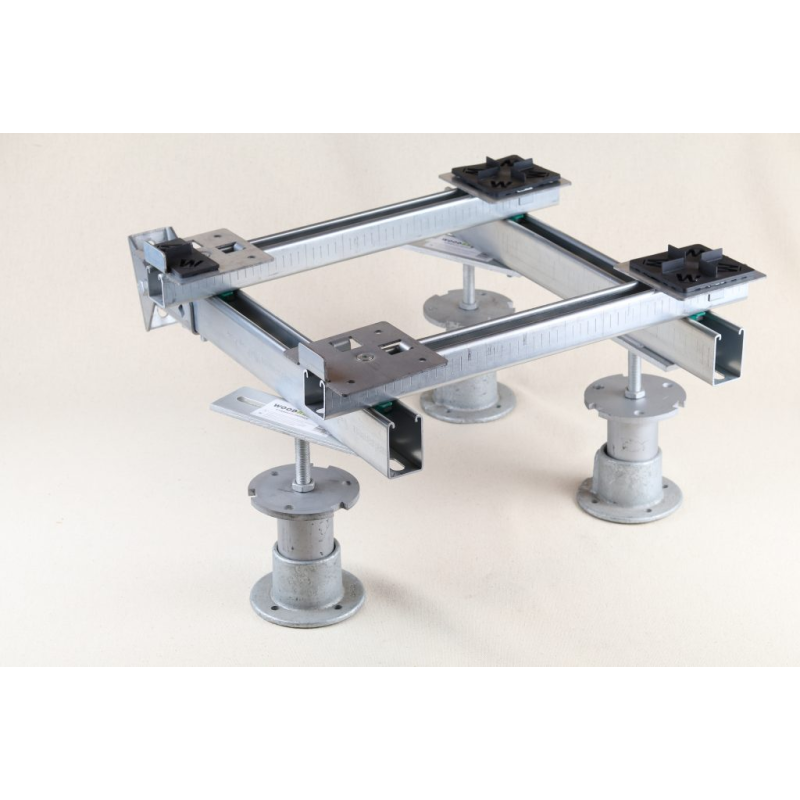

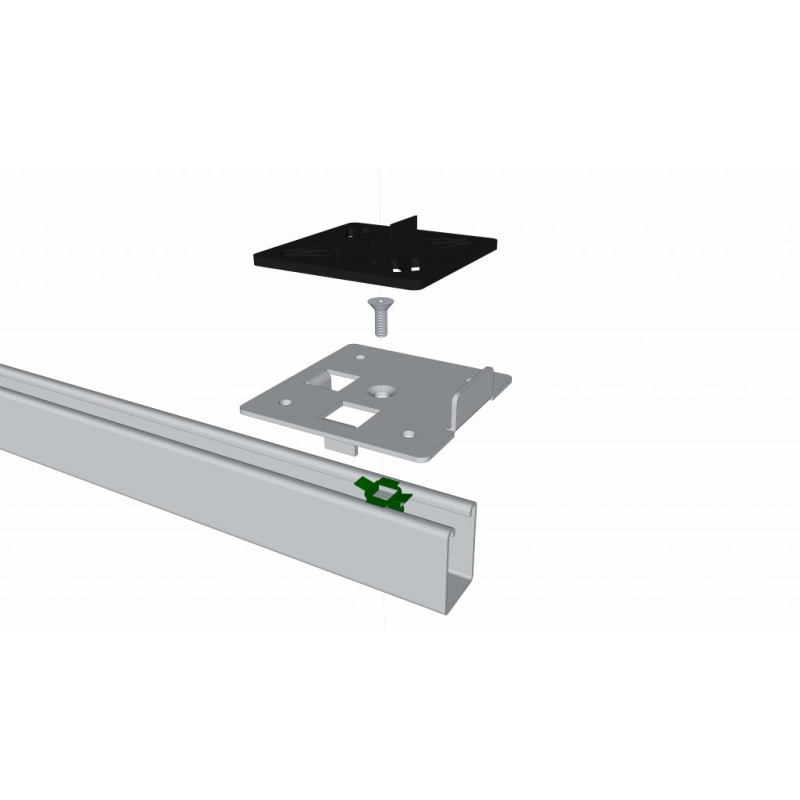

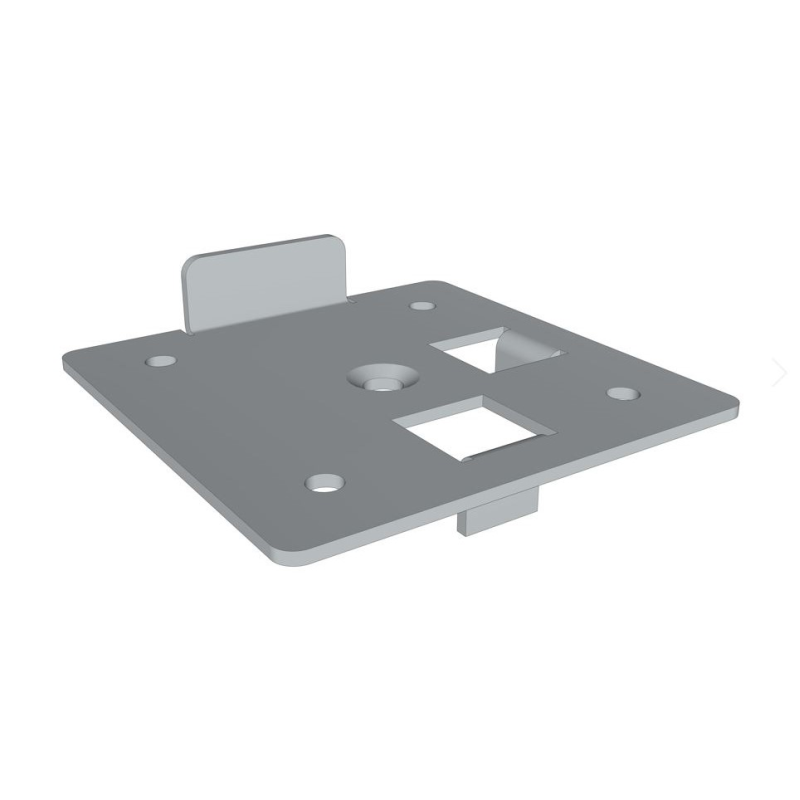

The ConnectStone C+ connector is a support for tiles, to be fixed on C-profiles. This magnelis steel plate with a central hole allows fyou to make a lot of different adjustments to the position of the tile for ease of installation. Equipped with a lateral stopper, the ConnectStone C+ is designed to be used on the periphery of the terrace, allowing for lateral support of the tiles. The ConnectStone C+ also serves as a support for lateral cladding. The connector comes with a M16 fixing system and all the accessories (except for 4 fixing screws for the post). This connector is suitable for the installation of grating and porcelain stoneware tiles.
Compatible with:
Advantages of the ConnectStone C+ connector:
Data sheet
Reference: WOODPRO
This 120mm side connector should be attached to the C-profile. It allows you to wide adjust the positioning of the tile in several ways, ensuring an easy installation. The ConnectStone C+ is equipped with a lateral stopper that is placed on the periphery of the terrace, preventing the tile from sliding laterally after installation. It also serves as a support for the vertical finishing with sheet metal.
