Stainless steel connector for horizontal wooden structure Wood Pro

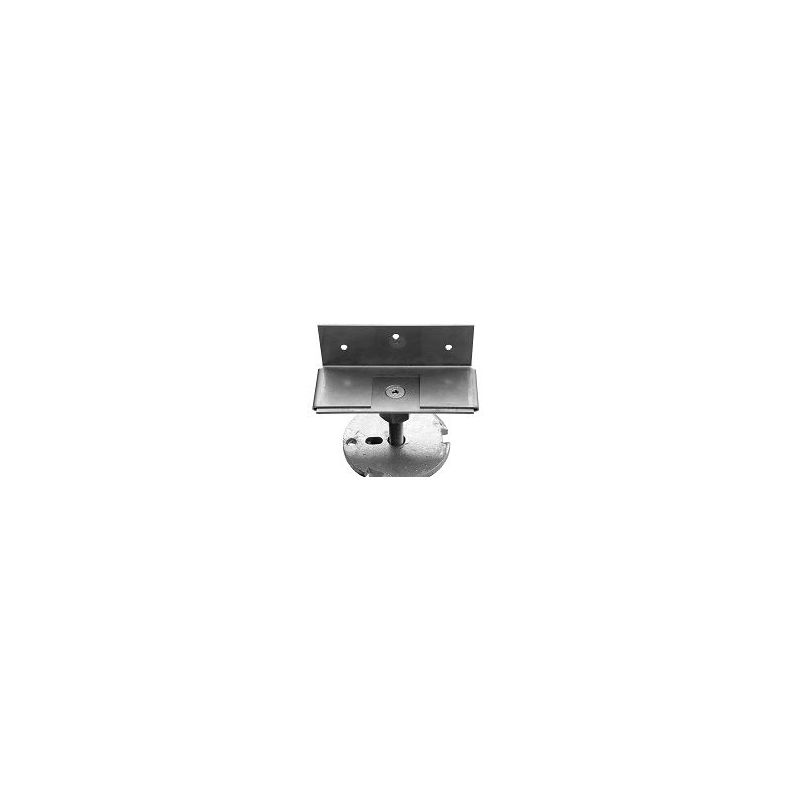

The A2 stainless steel connector is designed to support a horizontal wooden structure. This accessory from the brand Weasyfix can be used for terraces, garden sheds, or other small wooden constructions.
The 0.82 kg connector must be added to the Weasyfix foundation screw and base, using steel screws for a stable, secure, and high-quality installation. The connector is compatible with the FS550, FS750, FS1000, FS1120, FS1250, FS1500, and FS1750 terrace foundation screws.

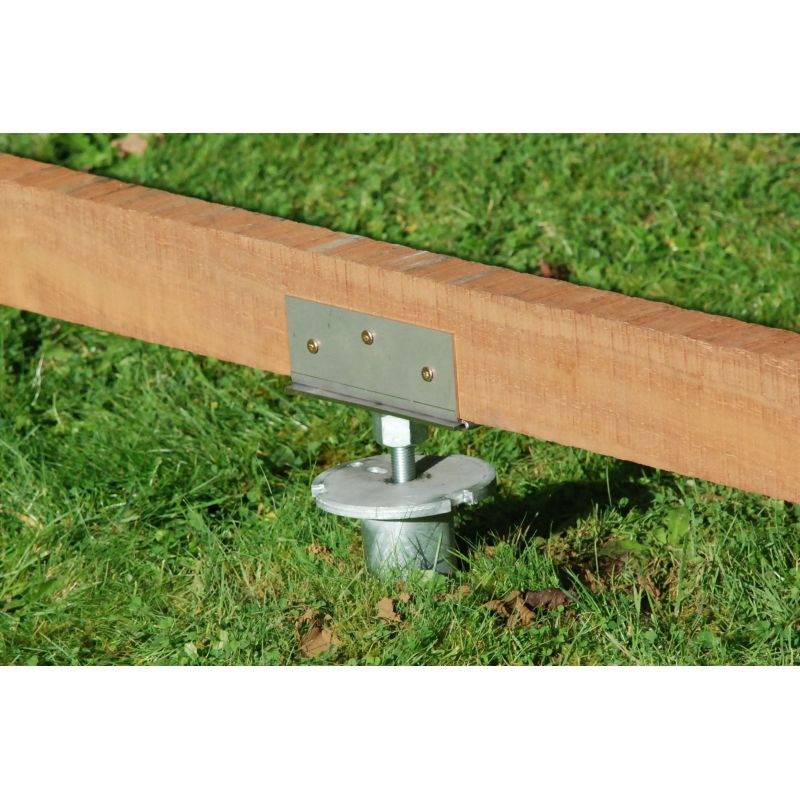

To firmly hold the wooden structure, the connector also acts as support for the wooden planks. Placed directly at the base under the wooden profile, the connector has a sliding bracket of 2 mm to fix the profile on the side as needed. This patented model is 160 mm long, 60 mm wide, and 3 mm high, and it can support up to 1200 kg of load.
The connector allows you to adjust the height of the wooden terrace foundation screw by -5 cm or +5 cm, before or after the terrace installation. The verticality of the foundation screw can also be corrected up to 5 degrees for easy leveling. This adjustment capacity is useful for correcting any possible misalignment of the screws through lateral adjustment.
- Length: 160 mm
- Width: 60 mm
- Height: 3 mm
- Sliding bracket: 2 mm
Model : WOODPRO
Stainless steel foundation screw connector for wooden structure WOOD PRO - Weasyfix
|Use||Fondations et strucutres pour terrasses|
|Contenu||Connecteur inox pour structure en bois weasywood. Réglage suivant les trois axes avant et après la pose|
Find all the documents that will be useful to you for the realization of your projects
C1 - WOOD PRO
C1 - WOOD PRO_enTélécharger
