Self-leveling pedestal 85/115 mm for wooden deck - YEED

YEED (Ex Rinno)

Reference : RIN060090LAUT

Available stock

Best price guaranteed

shipment in 24/48h
Your orders are shipped
Customer service
Our teams are at your disposal from Monday to Friday from 9am to 6pm
D.T.U. Standards
All our products comply with current standards
secure payment
Our site is protected by an SSL certificate
the guarantees plots-discount.com
Dessin technique du plot terrasse bois autonivelant 85/115 mm de Yeed

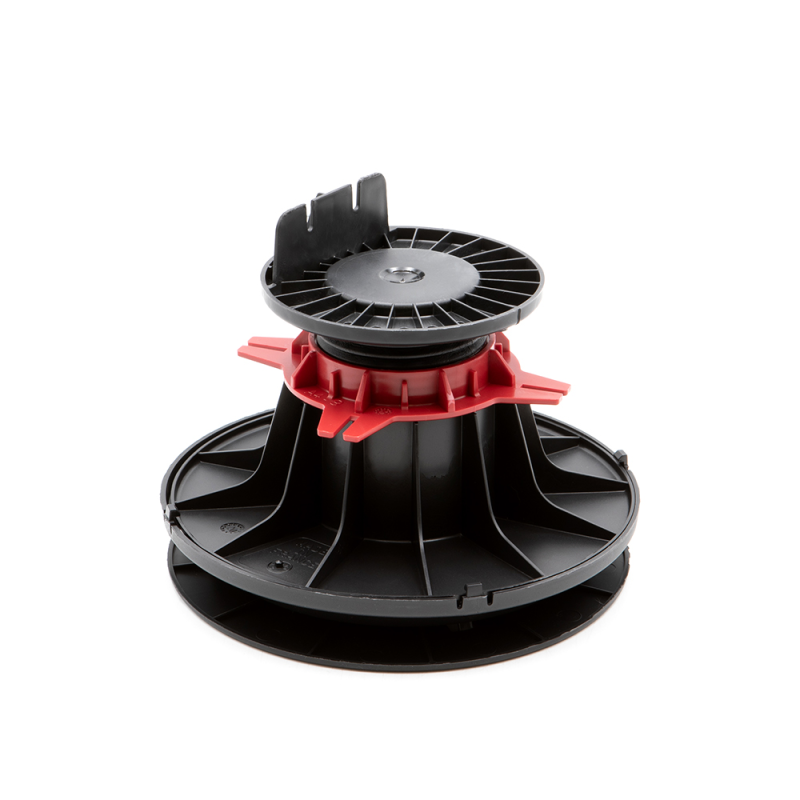

Adjustable self-leveling pedestal from 85 to 115 mm for wooden decks - YEED (formerly Rinno)

YEED self-leveling joist pedestal. This support for wooden terrace foundations has a base that adapts to the irregularities of the ground. It can be uneven, uneven or irregular, this clever pedestal will support your wooden deck by leveling it. Compatible with wooden boards and composite boards.

The advantages of the self-leveling wooden terrace pedestal 85/115 mm from YEED (formerly Rinno)

  • Quick and easy installation, without major works or fixing
  • Manual height adjustment thanks to the red adjustment ring
  • Strip designed for screwing the joist onto the pedestal
  • Allows laying on sloping or uneven ground
  • Allows you to create or compensate for up to 5% slope over 1 meter
  • Allows good ventilation of the structure and the evacuation of rainwater
  • Base designed to ensure proper drainage of rainwater
  • Compatible with wood and composite boards

Prerequisites: draw up the layout plan

To get your wooden terrace project on pedestals off to a good start, start by planning your site by drawing up a layout plan. This sketch will contain the shape of your future terrace, its dimensions but also and above all the equipment necessary for the success of your construction. Thus, the joist blocks, joists and wooden boards will be represented in order to be counted. Planning ahead will allow you to more easily realize your wooden terrace on pedestal.

Ground preparation

In order to lay your self-leveling joist pedestals directly on the ground, it is necessary to prepare it with crushed gravel. Laying on gravel is ideal for self-leveling pedestals, as the ground is never perfectly flat. This preparation of the ground will ensure the necessary stability for the foundations of your wooden terrace. Yes, thanks to this, you will extend the longevity of your wooden construction for many years.

1/ Tools and materials needed for ground preparation

Some tools are necessary for this simplified land preparation, here they are:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Crushed gravel

2/ How to prepare the ground

Stabilizing your ground is simple and relatively quick! Here is the proof :

  • Define the shape of your terrace and dig 15 cm deep;
  • Lay a geotextile felt to prevent the growth of weeds between the wooden boards;
  • Backfill with crushed gravel: 0/60 mm over 10 cm and 0/4 mm over the top 5 cm;
  • Compact everything to obtain a stable surface.

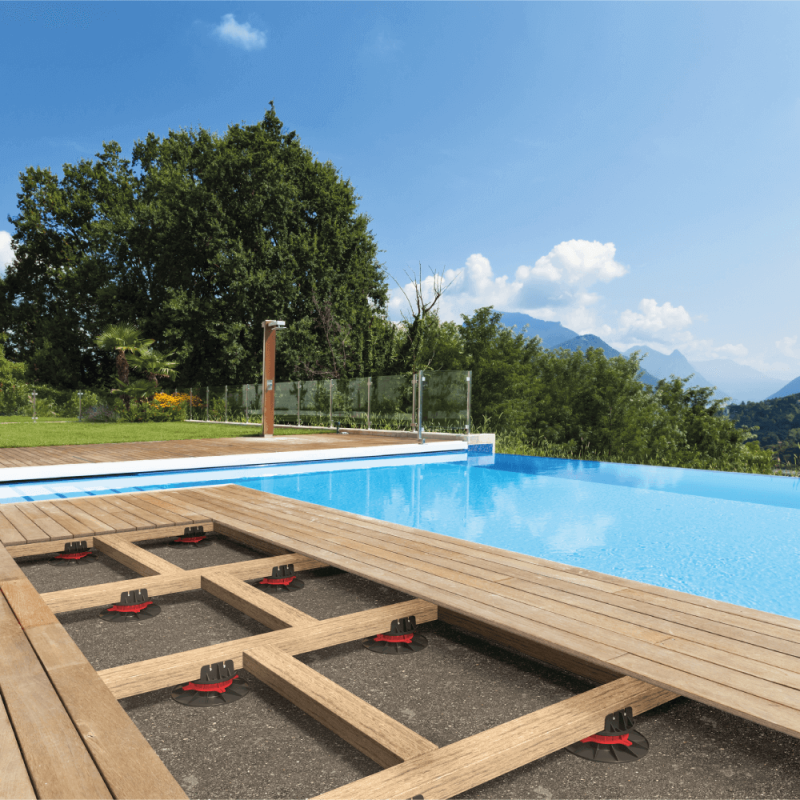

Steps for laying a wooden deck on YEED self-leveling pedestals (formerly Rinno)

Laying the foundations of your wooden deck with self-leveling pedestals is an excellent idea that will save you time, money and simplicity. It'll only take you a weekend to get your wooden terrace on pedestals out of the ground!

1/ Tools and materials needed to lay a wooden deck on YEED pedestals (ex Rinno)

  • A bracket
  • A tape measure
  • A spirit level
  • A drill driver
  • A jigsaw/radial saw
  • A hammer
  • A large ruler
  • A cord
  • Stakes
  • Your YEED wooden terrace pedestals
  • Wooden or aluminum joists
  • decking boards
  • Special wooden screws

2/ Accessories for laying a wooden deck on a Rinno pedestal

We offer a few installation accessories that will allow you to save installation time and the longevity of your construction.

  • The joist protection strip to protect your foundations from humidity;
  • Plank spacers for perfect spacing between your wooden planks;
  • The EDMA board straightener to make your wooden boards straight and thus facilitate their installation;
  • The invisible fixing kit to fix the board without visible screws.

3/ Arrange the self-leveling studs

To know the locations of your self-leveling wooden terrace pedestals, it's simple. Remember that your joists are placed under your terrace every 50 cm. So you will have a first row of joist pedestals spaced every 50 cm. Then these joists must be supported over their entire length every 70 cm.

Once your pvc pedestals have been placed on the ground, adjust their height by turning the red adjustment ring clockwise. This leveling is carried out to the millimeter. Note that it is necessary to leave a slope of 1.5% to promote the evacuation of rainwater.

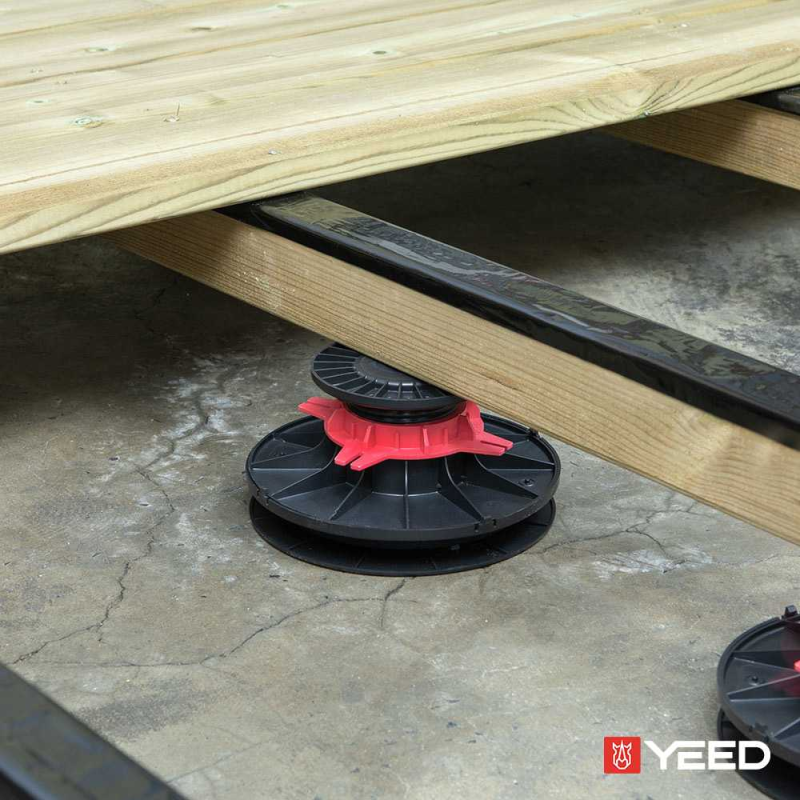

4/ Lay and fix the joists

The joists are fixed on the wooden terrace pedestals through the strip. Regarding the joists, do not forget that they must be of the same variety as your coating. So, if your boards are made of exotic wood, your joists will be too. Softwood siding? Softwood joists. Coating in composite board, then your joists will also be in composite. You can opt for aluminum joists if you wish.

  • Lay the joists against the strip located on the head of the pedestals;
  • Screw the joists onto the pedestals through the strip;
  • Apply the protective strip along the length of the joists;
  • Cover the edges of the joist with the protective strip.

5/ Lay the coating boards

  • Lay the wood slat coating while starting against a wall. Shift 5 mm to obtain the expansion joint;
  • Place the boards perpendicular to the joists;
  • Screw the boards with special decking screws. Note, screw 20 mm from the edge of the board.

Carry out the side finishes of the terrace

For a perfectly finished wooden terrace on pedestals, we think about making the side finishes. This operation is simple and fast and changes everything!

  1. Measure the height and make the necessary cutouts;
  2. Place the fascia board horizontally;
  3. Screw the plank into the joist.

Technical characteristics

  • Complies with DTU 43.1 and 51.4
  • Frost and UV resistant
  • Supports up to 1 ton of load
  • Height adjustable from 85 to 115 mm
  • Disc diameter: 200 mm
  • Head diameter: 120 mm
  • Strip height: 29 mm
  • Recycled and recyclable product
  • Made in France

The steps of installation a terrace on pedestals

The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!



step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.

step 2As soon as the installation is level, place the joists in front of the pin located on the head of the pedestals.

step 3Then screw the joists onto the pin of the stud provided for this purpose. This allows for good maintenance.

step 4Finally, attach the wooden slats to the joists using a screwdriver and wood screws.


Install the pedestals
Install the joists
screwing of the joists to the pedestals
Fixing the terrace boards
Data sheet

Model : RIN060090LAUT


Self-leveling pedestal 85/115 mm for wooden deck - YEED


YEED (Ex Rinno)
ColorBlack
MaterialPolypropylene
Warranty10 years warranty
OriginManufactured in France
ConformityIn compliance with the DTU 43.1 and 51.4
ResistanceResisting the acid and basic solutions, the atmospheric agents, the temperatures between -40°C and 60°C
LoadResisting the test of crushing with load superior in 1 ton
BrandYEED (Ex Rinno)
TypeSelf-levelling
UseWooden deck
Adjustable height3.35 to 4.53 in
Compatibility with extensionNo
SH Code39259010
Country of OriginUE
