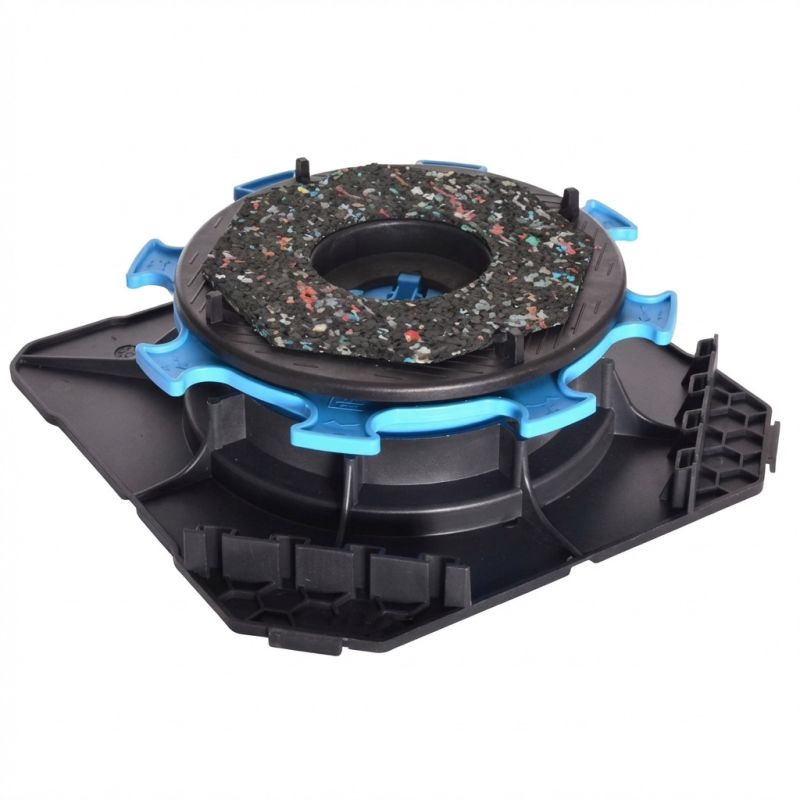

Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast
  • Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast
  • Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast
  • Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast
  • Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast
  • Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast

Adjustable paving terrace pedestal H40/55 mm - CLEMAN range - Jouplast

JOU-IH040055DNC0000
Jouplast

The Cleman adjustable paving pedestal makes terrace installation simple and fast. Designed for outdoor paving projects, it offers a height adjustment range of 40 to 55 mm to ensure a perfectly level surface. This pedestal is specifically engineered for use with accessories from the Cleman range.

More details


Orders shipped within 24/48 hours



Best prices



Pay in 3 or 4 installments with Oney

€4.35
€3.70 Save 15%
Tax included
In Stock
4401 Items
Packaging
Quantity

Calculate quantities
Promotion ends in:
0Days
0Hours
0Minutes
0Seconds
You might also like
Description
Dessin technique plot dalle réglable Cleman 40/55 mm

CLEMAN pedestal for adjustable paving terrace H40/55 mm - Jouplast

The Cleman pedestal is a paving terrace pedestal adjustable from 40 to 55 cm. It allows you to create the foundations of your terrace in porcelain stoneware, outdoor tiles, concrete pavings or wooden gratings. Thanks to this premium pedestal, laying your terrace is quick and easy! Adjustment from above, after installation, side trim and acoustic rubber included... this paving pedestal has many advantages!

The advantages of the Cleman 40/55 mm paving terrace pedestal from Jouplast

  • Optimized side covering: 2 supports integrated into the flange
  • Easy corner installation: square flange shape
  • Acoustic rubber included
  • 4 spacers 4 mm thick, breakable to facilitate installation
  • Optimized stability: all the elements are interdependent
  • A range of dedicated accessories: riser, paving plate, end cap and adjustment key.
  • Complies with DTU 43.1
  • Frost and UV resistant
  • Allows air to circulate under the structure
  • Allows the passage of cables and pipes
  • Resistance to crushing test with load greater than 1 ton

Tips for laying a tiled terrace on pedestals

  • The installation of a terrace on Cleman pedestals is exclusively intended for pedestrian and outdoor use;
  • The Cleman pedestal can only be used on stabilized ground or on an existing concrete paving;
  • Provide an inclination of 1 cm per linear meter to allow the evacuation of rainwater, whatever the support;
  • Use self-supporting pavings, class T7 or T11 according to standard NF EN 1339 or F+

The steps for laying a paving terrace on an adjustable pedestal Cleman

1/ Preparing the ground

The installation of Cleman pedestals is only carried out on stabilized ground. Thus, you can place your Cleman paving pedestals directly on a concrete screed or an old terrace. If laying on grass, earth or gravel, minor earthworks are required. Indeed, this is necessary because unprepared ground can change over time and cause your paving terrace to move depending on the weight and climatic conditions. Stabilizing your ground is the guarantee of enjoying your terrace for as long as possible.

Here is what you need for this preparation:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Crushed gravel


Installation is simple and inexpensive:

  1. Dig the ground for 15 cm;
  2. Place a geotextile felt there to eradicate the growth of weeds and save you additional maintenance;
  3. Fill the hole with a draining layer of 30/60 or 40/80 type crushed gravel. If your surface still has some defects, create a laying bed with quarry sand or type 0/4 crushed sand;
  4. Compact everything and make sure the surface is flat.

2/ Lay the Cleman pedestals and the tiling pavings

The installation of a terrace is simple and quick thanks to the use of the Cleman paving pedestal! Indeed, throughout the installation, the Cleman adjustable pedestal will make your job easier.

We explain how through the 4 installation steps:

  1. Take your previously drawn up layout plan to lay your Cleman pedestals so that your pavings do not overlap. It takes 4 pedestals per paving for dimensions up to 60 x 60 cm. Beyond that, provide one or two central pedestals;
  2. Once the ground has been prepared, it is time to lay the first tiled terrace pedestal on the ground. Adjust the height of the pedestals using the blue adjustment nut located under the head of the pedestals, you can adjust the height to the nearest millimeter with the Cleman adjustment key if necessary. This adjustment key is ideal for post-installation height adjustment;
  3. Check the flatness of the structure using a spirit level. This step is crucial to have a durable and secure paving on pedestal laying;
  4. Finally, lay the tiles on the pedestals. The 4 spacers of 4 mm (separable) make it easier to install while firmly wedging the terrace paving on the pedestal for optimal support. The weight of the paving on the pedestal keeps the pedestal in place without moving a single millimeter. You will notice it very quickly, the installation is greatly facilitated since the Cleman paving terrace pedestals have a square base, ideal for installation at an angle or against a wall. In addition, two trim supports and glue traps keep the skirting boards vertical for a perfect aesthetic finish.

Accessories for laying a tiled terrace on Cleman pedestal

The Cleman pedestal has many technical characteristics which make it possible to avoid the purchase of additional accessories. Indeed, these paving terrace pedestals are equipped with side trim and acoustic rubber included. Thus, as accessories, you will find:

  • The Cleman 60 mm extension allows you to increase the height of your Cleman pedestal without changing it. Up to 4 risers can be stacked per Cleman pedestal;
  • The Cleman pedestal paving plate adapting to the two Cleman cladding supports and facilitating installation against the facade;
  • The Cleman adjustment key slipping between the pavings of your terrace to adjust the height of the pedestals after installation without having to disassemble anything;
  • The Cleman pedestal adjustment ends fitting on the chuck of an electric screwdriver and allows the height adjustment of the Cleman pedestals.

Technical characteristics

  • Complies with DTU 43.1
  • Load resistance greater than 1 ton
  • Frost and UV resistant
  • Dimensions: 192 x 192mm
  • Head diameter: 138 mm
  • Adjustable height: 40 to 55 mm
  • Adjustment via the blue nut and adjustment from above with the Cleman wrench

Product Details
JOU-IH040055DNC0000
4401 Items

Data sheet

Adjustable height
40 to 55 mm
Material
Polypropylene
Guarantee
2 years warranty
Origin
Manufactured in France
Conformity
Compliance with the DTU 43.1
Resistance
Resistant to acidic and basic solutions, atmospheric agents, temperatures between -40°C and +60°C
Load
Resists the test of crushing with a load superior in 1 ton
Brand
Jouplast
Type
Adjustable
Use
Height adjustment from the top with adjustment key and/or manually with the adjustment nut
Standards
Compatible with waterproofing system (compliant with DTU 43.1) - CE certification
SH Code
39259010
Country of Origin
UE
Spacer thickness
4 mm
Acoustic damper included
Yes
Installation surface
Loose soil
Type of setting
From the top
Manual
Conditioning
Unit
Poids (en grammes)
360
Decking pedestal
Tile
Height
From 4 to 8 cm

Specific References

EAN13
9506238351170
