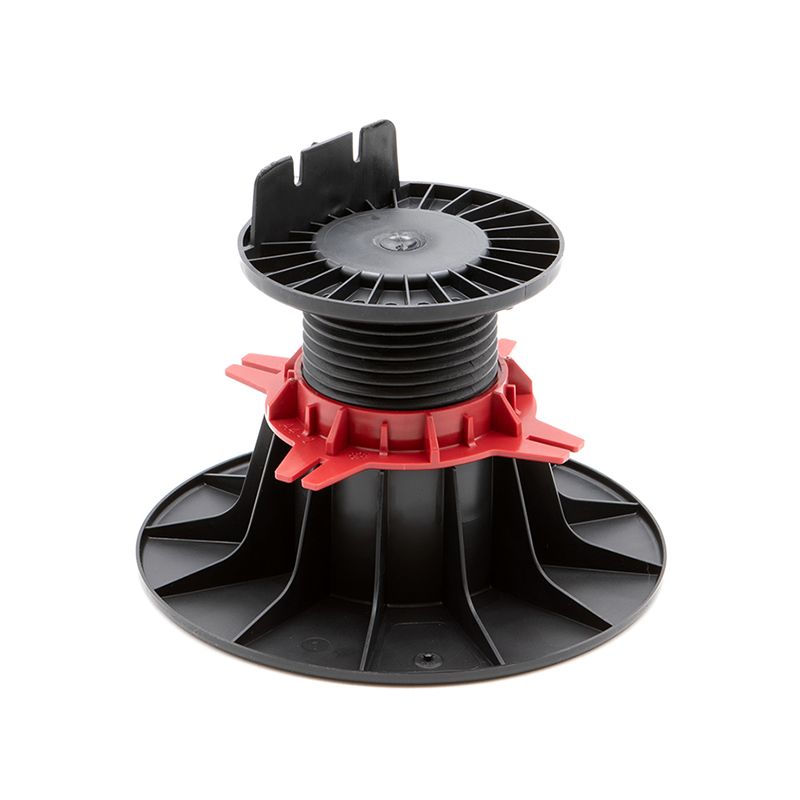

Adjustable pedestal 90/150 mm for wooden deck - YEED (ex Rinno)

YEED (Ex Rinno)

Reference :

Available stock

Best price guaranteed

shipment in 24/48h
Your orders are shipped
Customer service
Our teams are at your disposal from Monday to Friday from 9am to 6pm
D.T.U. Standards
All our products comply with current standards
secure payment
Our site is protected by an SSL certificate
the guarantees plots-discount.com
Dessin technique du plot terrasse bois 90/150 mm de Yeed

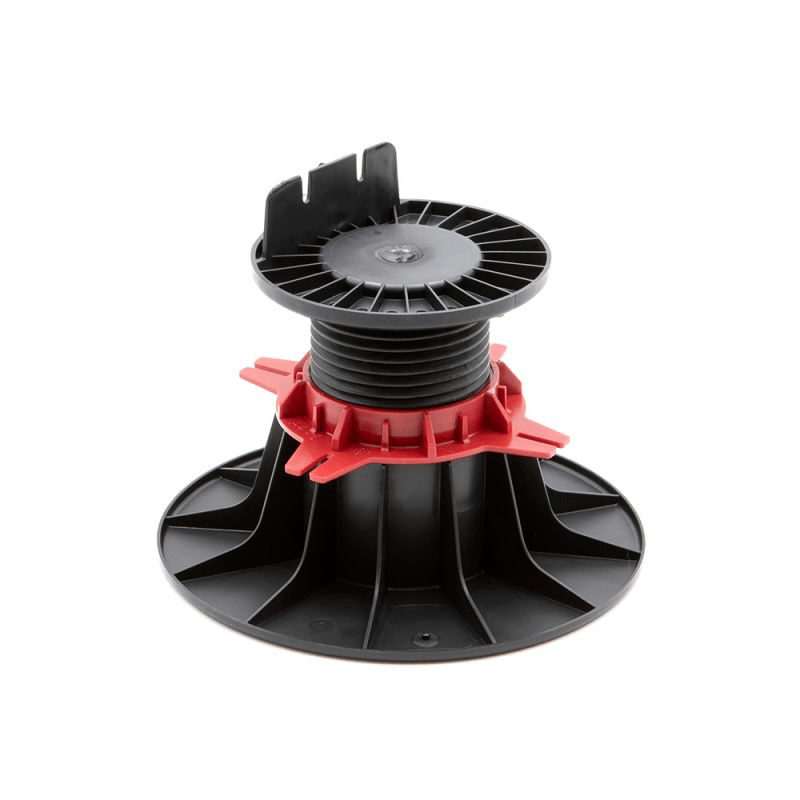

Pedestal for terrace in wood or composite board adjustable from 90 to 150 mm - YEED (ex Rinno)

Joist pedestal for the construction of wooden terraces. This pvc pedestal is adjustable from 90 to 150 mm to adapt to the constraints of your ground. It favors a solid and secure construction for many years, without major work or heavy equipment.

The advantages of the 90/150 mm wooden terrace pedestal from YEED (formerly Rinno)

  • Quick and easy installation, without major works or fixing
  • Manual height adjustment thanks to the adjustment ring
  • Strip designed for screwing the joist onto the pedestal
  • Allows good ventilation of the structure and the evacuation of rainwater
  • Base designed to ensure proper drainage of rainwater
  • Compatible with wood and composite boards

Prerequisites: draw up the layout plan

To get your project off to a good start, begin by drawing up a layout plan. This is a sketch of your deck. It will allow you to plan and most of all calculate the number of wooden terrace pedestals, joists, wooden boards and screws required.

Ground preparation

Before laying the pedestal, it is necessary to prepare the ground. Be careful, there are certainly small works which need to be carried out, but there won't be major works! Preparation is simplified, quick and inexpensive. No concrete slab needs to be poured, the ground just needs to be stable and level.

On a concrete paving or an existing terrace

If your surface is stable and level, such as a concrete paving or an old terrace, then skip this step of preparing the ground.

On a rough ground

1/ Tools and materials needed for ground preparation

A cord

Stakes

A spirit level

A shovel

Tape measure

A mason box screed

A geotextile film

Crushed gravel

Roller compactor

2/ How to prepare the ground

  1. Delimit the shape of your terrace using a line and stakes and dig 15 cm deep at this location;
  2. Lay a geotextile felt to prevent the growth of weeds between the wooden boards;
  3. Backfill with crushed gravel: 0/60 mm over 10 cm and 0/4 mm over the top 5 cm;
  4. Compact everything to obtain a flat and loose surface;
  5. Check the flatness of the surface using a spirit level.

Steps for laying a wooden terrace on YEED pedestals (ex Rinno)

1/ Tools and materials needed to lay a wooden deck on YEED pedestals (ex Rinno)

  • An angle bracket
  • A tape measure
  • A spirit level
  • A drill driver
  • A jigsaw/radial saw
  • A hammer
  • A large ruler
  • A cord
  • Stakes
  • Your YEED wooden terrace pedestals
  • Wooden or aluminum joists
  • Decking boards
  • Special wooden screws

2/ Accessories for laying a deck on a pedestal

Creating a pleasant wooden terrace is child's play with joist pedestals. To make this project even easier to achieve, equip yourself with these few accessories:

  • The joist protection strip to protect your foundations from humidity;
  • Plank spacers for an identical distance between your wooden planks;
  • The EDMA slat straightener to make your wooden slats straight and thus facilitate their installation;
  • The invisible fixing kit to fix the slats without visible screws.

3/ Arrange the pedestals on the ground

  1. Arrange the wooden terrace pedestals on the ground with a center distance of 50 cm (location of the joists) then lay pedestals every 70 cm to support the joists along the length;
  2. Adjust the height of the joist pedestals by turning the red adjustment ring clockwise. Create a 1.5% slope for rainwater drainage. This slope is easily achievable thanks to the precise adjustment of the wooden terrace pedestals.

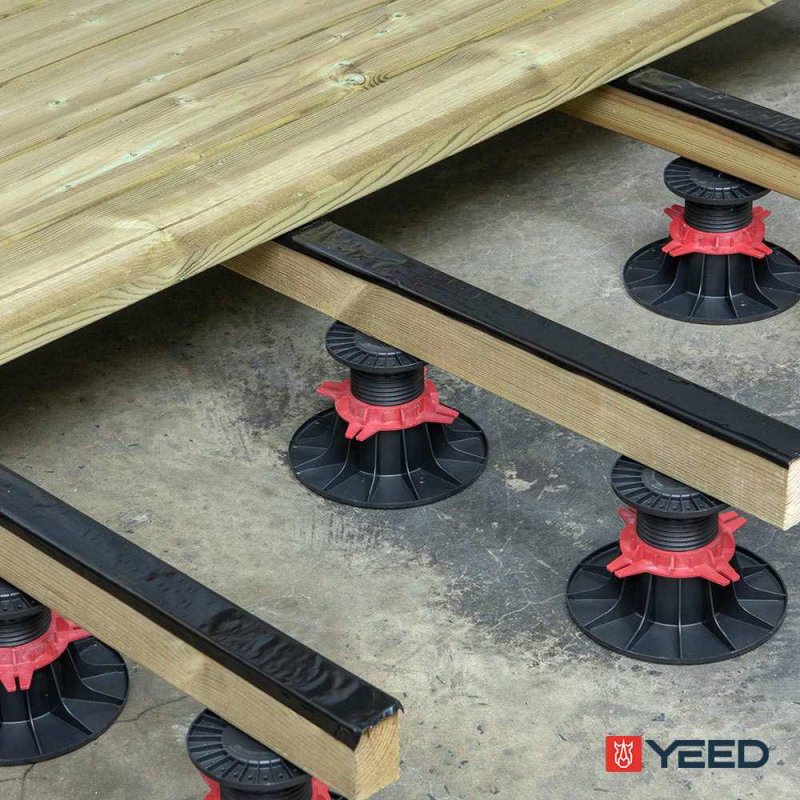

4/ Lay and fix the joists

The joists are fixed to the strips of the wooden terrace pedestals and are of the same essence as your covering. For even more resistance, you can opt for aluminum joists. For the installation:

  1. Lay the joists against the tongue located on the head of the pedestals;
  2. Screw the joists onto the pedestals through the tongue;
  3. Apply the protective strip along the length of the joists;
  4. Cover the edges of the joist with the protective strip.

5/ Lay the covering boards

  1. Lay the wood slat covering starting against a wall. Do not forget to offset 5 mm from the wall to obtain the expansion joint;
  2. Place the boards perpendicular to the joists;
  3. Screw the boards 20 mm from the edge with special decking screws.

Make the side closure of the terrace

To achieve a completely finished terrace that everyone will envy, think about the side finishes of the latter. This last step is very simple and quick.

Measure the height and make the necessary cutouts;

Place the fascia board horizontally;

Screw the plank into the joist.

Technical characteristics

  • Complies with DTU 43.1 and 51.4
  • Frost and UV resistant
  • Supports up to 1 ton of load
  • Height adjustable from 90 to 150 mm
  • Base diameter: 200 mm
  • Head diameter: 120 mm
  • Strip height: 29 mm
  • Recycled and recyclable product
  • Made in France

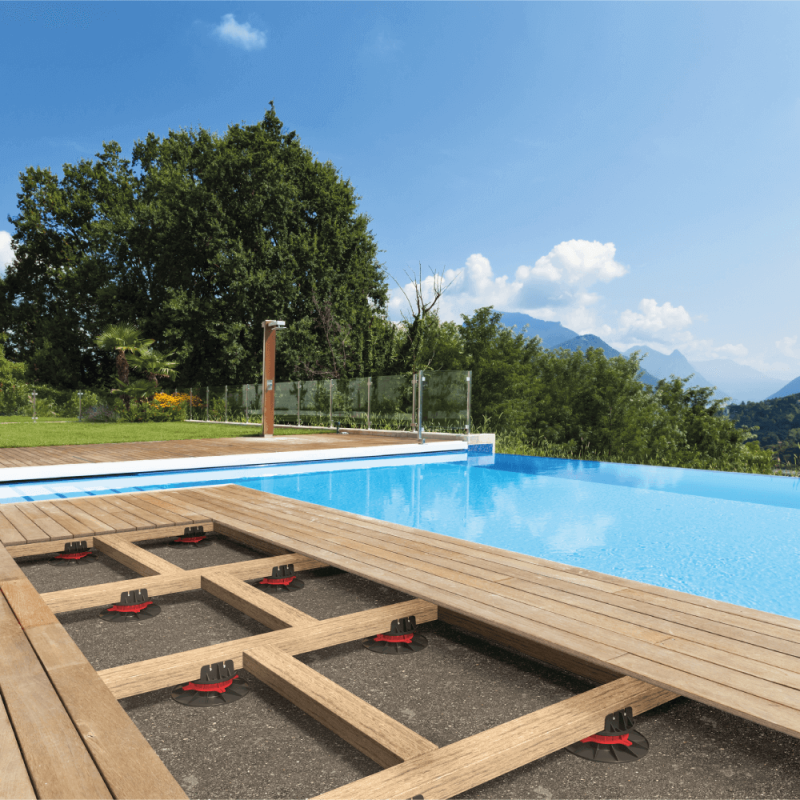

The steps of installation a terrace on pedestals

The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!



step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.

step 2As soon as the installation is level, place the joists in front of the pin located on the head of the pedestals.

step 3Then screw the joists onto the pin of the stud provided for this purpose. This allows for good maintenance.

step 4Finally, attach the wooden slats to the joists using a screwdriver and wood screws.


Install the pedestals
Install the joists
screwing of the joists to the pedestals
Fixing the terrace boards
Data sheet

Model :


Adjustable pedestal 90/150 mm for wooden deck - YEED (ex Rinno)


The...
YEED (Ex Rinno)
ColorBlack
MaterialPolypropylene
Warranty10 years warranty
OriginManufactured in France
ConformityIn compliance with the DTU 43.1 and 51.4
ResistanceResisting the acid and basic solutions, the atmospheric agents, the temperatures between -40°C and 60°C
LoadResisting the test of crushing with load superior in 1 ton
BrandYEED (Ex Rinno)
TypeAdjustable
UseWooden deck, Composite decking
Adjustable height3.54 to 5.91 in
Compatibility with extensionNo
SH Code39259010
Country of OriginUE
