Plot de terrasse fixe 10 mm lambourde - Solidor

Solidor 10 mm fixed joist pedestal

Name: Solidor 10 mm fixed joist pedestal
Brand: Solidor
SKU: SOL-009916
Price: 0.84 EUR
Availability: InStock

Reference SOL-009916

Brand Solidor

Solidor 10 mm fixed pedestal on a polyurethane base with recycled rubber granulate, specially designed for joist terraces (wood or composite). The ideal ultra-low solution for renovations and restricted door thresholds. This non-adjustable and non-stackable pedestal perfectly isolates your structure from ground moisture and allows for water drainage. Made in Belgium.

More details

Best prices

Pay in 3 or 4 installments with Oney

Customer service from Monday to Friday

€0.84

Tax included

Last items in stock

In stock: 1 Item

Quantity

Description
Product Details

Description

🇧🇪 Made in Belgium – Solidor

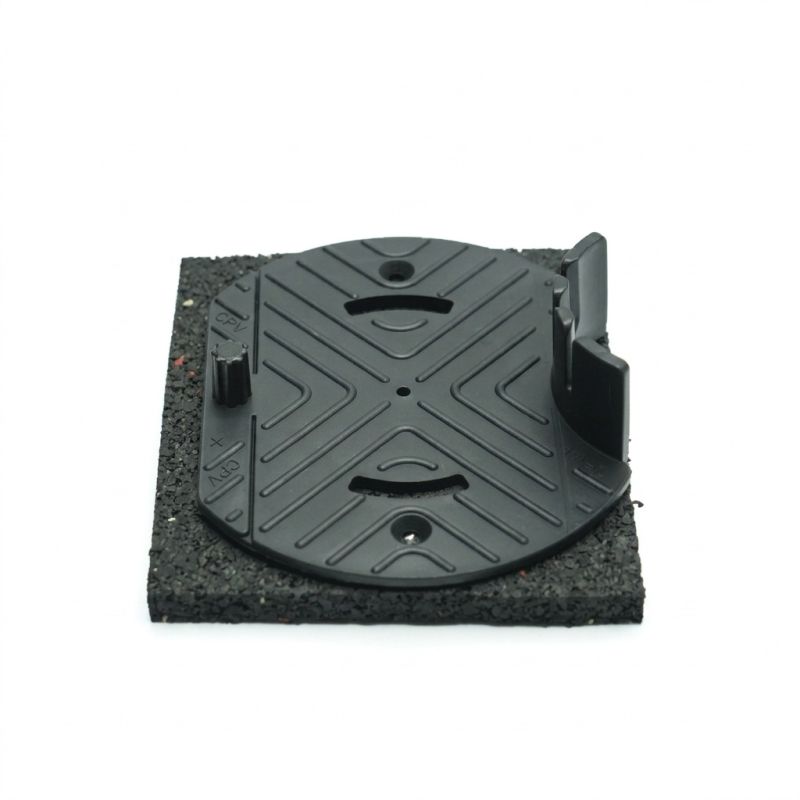

Fixed 10 mm Joist Pedestal – Solidor

The Solidor 10 mm fixed monoblock pedestal (Ref: 009916) is the essential ultra-low solution for installing wood or composite terraces with very low clearance height. It provides a stable base and isolates the joist from standing water, with no adjustment required.

📐 Strict 10 mm height Constant level, 100% incompressible

🪵 Wood protection Isolates the joist from ground moisture

🚫 Monoblock pedestal Not compatible with risers

🌡️ −25°C to +70°C Resistant to extreme climatic variations

♻️ 100% Recyclable Environmentally friendly polypropylene

🔧 Simplified installation Specially adapted to support joists

Solidor 10 mm fixed joist pedestal: essential protection for your structure

When it is impossible to significantly raise a wood terrace due to a door threshold being too low, it is tempting to lay the joists directly on the ground. This guarantees rapid rotting of the structure. The 10 mm fixed pedestal specially designed for joists is the essential technical answer to this problem.

With its minimum height of 1 cm, it creates a crucial crawl space that lifts your joist (exotic wood, treated pine, or aluminum) off the concrete slab. This prevents the wood from sitting in rainwater, promotes ventilation of the terrace's underside, and significantly extends the lifespan of your outdoor space.

Discover professional Solidor quality

Official Solidor video (global presentation of the brand's expertise).

Detailed technical specifications

Solidor reference	009916
Pedestal type	Fixed monoblock pedestal (non-adjustable) for structure
Total height	10 mm
Riser compatibility	Not compatible with risers
Pedestal head	Designed to accommodate joists (wood, composite, aluminum)
Material	Injected polypropylene (PP)
Thermal resistance	From −25°C to +70°C
Usage	Wood or composite terrace sub-structure
Manufacturing	Belgium (Solidor)

⚠️ Important reminder: Unlike the adjustable range for joists, this 10 mm fixed model does not accept any extensions (risers). It must be used on a concrete slab or a surface that already offers perfect flatness.

In what situations should you use this 10 mm fixed joist pedestal?

🏠 Very low door thresholds

Allows for creating a wood deck without blocking your patio doors.

🔄 Renovation over tile

Installation of a wood structure directly onto an old flat terrace without heavy work.

🏢 Apartment balconies

Ideal for cladding a small concrete balcony with wood while limiting the level difference with the interior.

🛡️ Wood isolation

Functions as an isolation wedge to preserve the joist from standing water.

Steps for installing a structure with the 10 mm pedestal

To ensure the longevity of your wood deck, respecting the spacing of your structure is paramount.

1. Surface preparation: Check that your ground is stable, regular, and has a natural slope for rainwater drainage.
2. Pedestal layout: Place the pedestals in a line along the future position of your joists. The spacing between two pedestals on the same joist is generally 40 to 50 cm maximum, depending on the section of your wood.
3. Joist fixing: Place the joist on the pedestal head. Screw it through the lateral fixing fin (if applicable) or fix the assembly according to the joist manufacturer's recommendations, then proceed to install your deck boards.

Frequently Asked Questions

Does this 10 mm joist pedestal accept Solidor risers?

Absolutely not. This model is monoblock. To raise your wood structure further or correct a steep slope, look toward the range of adjustable Solidor pedestals for joists.

Can I use these pedestals to lay slabs directly?

No, the head of this pedestal is specifically designed for supporting a joist. It does not have the spacers necessary to maintain joint spacing and properly lock down ceramic slabs.

How do I correct a small level defect under a joist?

If the ground has a slight dip, you can use leveling shims or EPDM resilient strips that you slide between the pedestal head and the joist to perfect its leveling.

How many joist pedestals should I calculate per square meter?

The quantity depends on the spacing of your joists (center-to-center distance) and the spacing of the pedestals beneath them. On average, count between 6 and 9 pedestals per square meter. Always check the recommendations from your board manufacturer to define the exact span.
