Self-leveling pedestal 65 95 mm for slabs, tiles or ceramics - Jouplast
  • Self-leveling pedestal 65 95 mm for slabs, tiles or ceramics - Jouplast
  • Self-leveling pedestal 65 95 mm for slabs, tiles or ceramics - Jouplast
  • Self-leveling paving terrace pedestal 65/95 mm - ESSENTIEL range - Jouplast

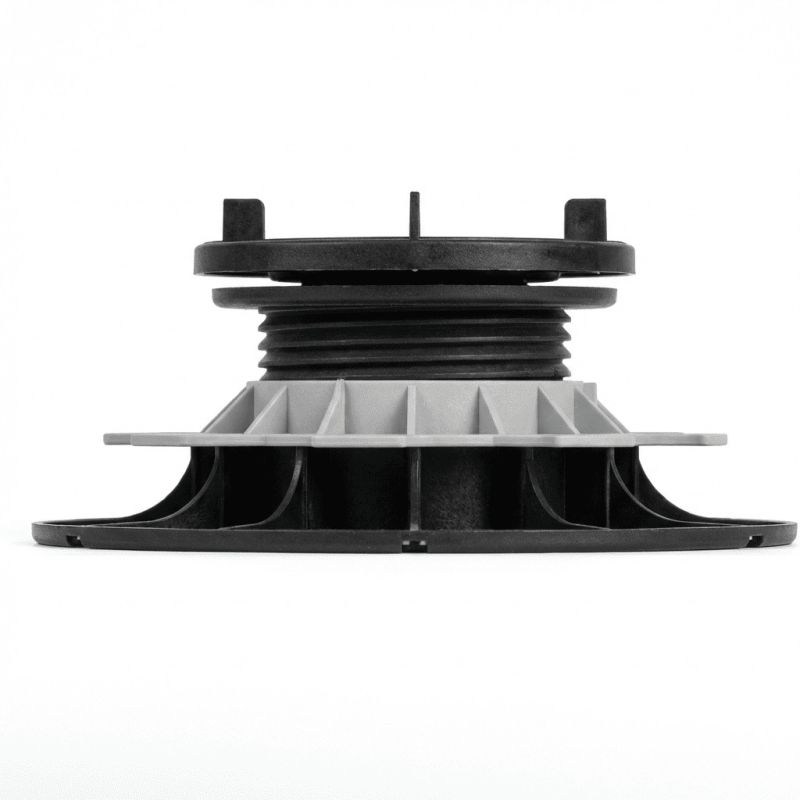

Self-leveling paving terrace pedestal 65/95 mm - ESSENTIEL range - Jouplast

JOU-IH065095DSN0000
JOUPLAST

Allows the laying of tiled terraces, concrete pavings or duckboards on sloping or uneven ground. Allows you to create or catch up to 5% slope over 1 meter. Self-leveling paving pedestal adjustable in height from 65 to 95 mm thanks to the ring located under the head of the pedestal. Max load: 1 ton. Pedestrian use only. Complies with DTU 43.1 and 51.4. Made in France, guaranteed for 10 years. Frost-resistant, resistant to UV, acid and basic solutions and atmospheric agents. For more comfort, consider the acoustic rubbers sold separately.

More details


Expédition des commandes en 24/48h



Livraison offerte dès 500€



Paiement en 3 ou 4x avec Oney



Service client du lundi au vendredi

Meilleur prix garanti
€3.95
Tax included
Available stock
3293 Items
Packaging
Quantity

Calculate quantities
You might also like
Description
Dessin technique plot dalle autonivelant Jouplast Essentiel 65/95 mm

Self-leveling pedestal for tiled terrace adjustable from 65 to 95 mm - Jouplast

Foundation support allowing the laying of outdoor tiled terraces, concrete pavings or wooden gratings on sloping or uneven ground. The 65/95 mm self-leveling pedestal is adjustable from 65 to 95 mm using the gray adjustment nut located under the head of the pedestal. The self-leveling slab terrace pedestal can create or compensate for up to 5% slope over 1 meter. Indeed, the unevenness of the surface of your land for the slab terrace is compensated automatically and without the addition of additional equipment thanks to the head mounted on the pivot of the adjustable pedestal.

The advantages of Jouplast's 65/95 mm self-leveling paving terrace pedestal

  • Speed and ease of installation
  • Laying on uneven or uneven ground
  • Allows you to compensate or create a slope of up to 5% thanks to its head mounted on a pivot
  • Installation without fixing or joint
  • Has 4 breakable 3 mm thick spacers to facilitate installation
  • Manual and precise height adjustment thanks to the nut

Tips for laying a paving terrace on pedestals

  • The self-leveling paving terrace pedestal is intended for outdoor and pedestrian use
  • This self-leveling pedestal can only be used on uneven, uneven ground such as crushed gravel.
  • Preparation of the ground is necessary to guarantee the longevity of your terrace on pedestals. Without this, the latter can move according to the weight and the climatic conditions.
  • Regardless of the support, it is necessary to provide an inclination of 1 cm per linear meter in order to promote the evacuation of rainwater;
  • Be sure to lay self-supporting slabs, class T7 or T11 according to standard NF EN 1339 or F+;
  • Bring a paving lifter to facilitate moving and laying the pavings.

Steps for laying a paving terrace on a self-leveling pedestal

1/ Ground preparation

Simplified site preparation is necessary for the use of self-leveling paving terrace pedestals.

Here is what you need for this preparation:

  • A cord
  • Stakes
  • A spirit level
  • A shovel
  • A tape measure
  • A mason's box screed
  • A geotextile film
  • Gravel


Installation is simple, the self-leveling pedestals being ideal for uneven ground, they are ideal for laying on crushed gravel:

  1. Dig the ground for 15 cm;
  2. Place a geotextile felt there to eradicate the growth of weeds and save you additional maintenance;
  3. Fill the hole with a layer of draining gravel type 30/60 or 40/80 over 15 cm;
  4. Compact everything.

2/ Lay the pedestals and the tiling pavings

Laying a paving terrace on pedestals is extremely easy!

Count 1 pedestal per corner, i.e. 4 pedestals for a tiled paving. For pavings from 60 x 60 cm, it is recommended to reinforce the installation by adding 1 or 2 additional pedestals in the center of the paving by breaking the spacers. This calculation of the number of pedestals will help you with your layout plan.


Time to implement:

  1. Position the pedestals directly on the ground, respecting the layout plan;
  2. Add an acoustic rubber on the head of each of the pedestals;
  3. Lay the tile pedestals against the spacers;
  4. Turn the gray nut to adjust the height of the pedestal to the desired level

Accessories for laying a tiled terrace on a pedestal Jouplast

Technical characteristics

  • Complies with DTU 43.1
  • Load resistance greater than 1 ton
  • Frost and UV resistant
  • Flange diameter: 208 mm
  • Head diameter: 120 mm
  • Adjustable height: 65 to 95 mm

Product Details
JOU-IH065095DSN0000
3441290000931
3293 Items

Data sheet

Height
From 4 to 8 cm
From 8 to 12 cm
Material
Polypropylene
Guarantee
2 years warranty
Origin
Manufactured in France
Conformity
Compliance with the DTU 43.1 and 51.4
Resistance
Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
Load
Resists the test of crushing with a load superior in 1 ton
Brand
Jouplast
Type
Self-levelling
Adjustable height
65 to 95 mm
Qté lot
60
trad_lot
A batch of
OPMM
10
SH Code
39259010
Country of Origin
UE
Spacer thickness
3 mm
Best-price
Yes
Installation surface
Uneven/Inclined ground
Type of setting
Manual
Attachments
Download
FT_PLOT AUTO_FR_2111

FT_PLOT AUTO_FR_2111_en

Download (448.42KB)
