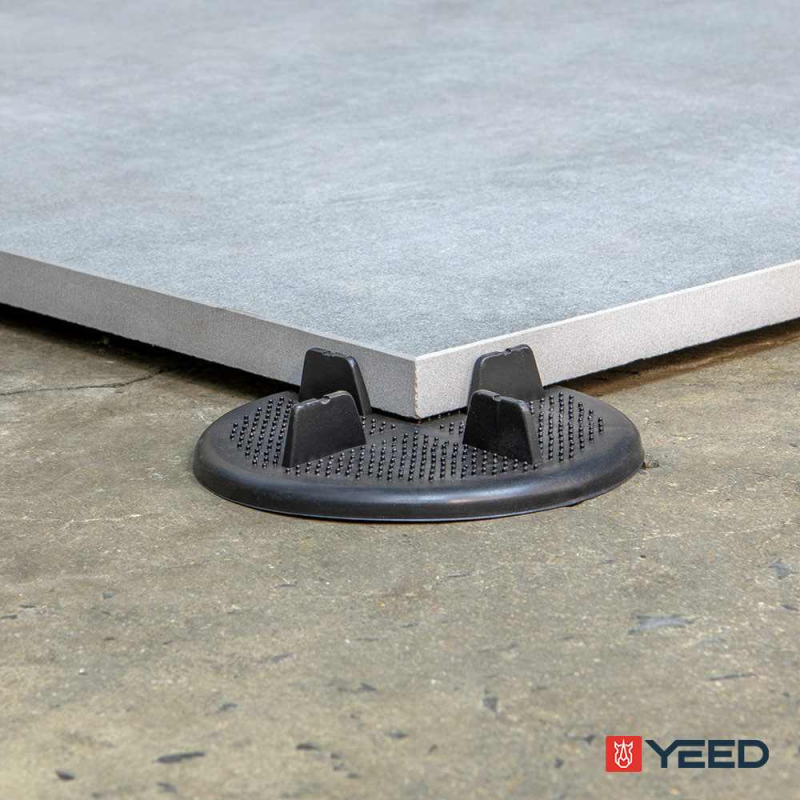

8 mm fixed pedestal for paving terrace - YEED (Ex Rinno)

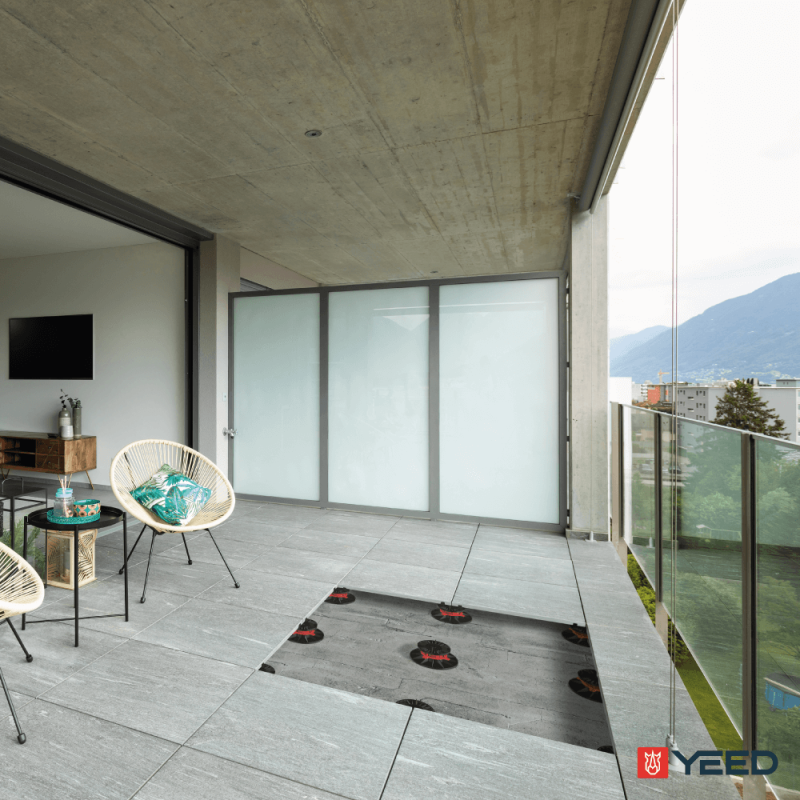

The 8 mm YEED (Ex Rinno) paving terrace pedestal is a fixed-height pvc pedestal. It allows you to build the foundations of a pedestal terrace with no height to catch up, to fit out a roof terrace or to renovate an existing terrace. Compatible coverings are concrete pavings, porcelain stoneware and other exterior tiles, natural stones and wooden gratings.
The advantages of the YEED 8 mm paving terrace pedestal (Ex Rinno)
- Quick and easy installation, without structural work, fixing or joints
- Allows good ventilation of the structure and the evacuation of rainwater
- Has 4 spacers to define a regular spacing of 4 mm between the tile pavings.
- Ideal for the renovation of a pre-existing terrace
Prerequisites: define the type of installation then draw up the layout plan
Before starting your construction site, think about your future terrace and the type of installation you are planning: straight installation, staggered installation or diagonal installation... The type of installation will depend on your layout plan.
The layout plan is a sketch of your terrace. It must contain this with its dimensions, its type of installation but also and above all the paving terrace pedestals, the tiles. This scale plan will allow you to precisely calculate the number of pvc plots and the number of pavings.
To calculate the number of paving pedestals, it's simple: count 4 pedestals per tile. It is possible to add a central pedestal in addition to reinforce the structure. This fifth pedestal is necessary for large slabs, from 60 x 60 cm. Sometimes, a sixth pedestal, also central, may be necessary, this is particularly the case for 60 x 120 cm tiles. To place the central slab pedestals, break the fins located on the head of the pvc pedestals.
Ground preparation
In order to lay your terrace paving pedestals, it is necessary to have a stable and level surface. Two possible scenarios: either you have a concrete paving or your ground is rough.
On a concrete paving or an existing terrace
Your surface is stable and level. You therefore do not need to prepare the ground, go directly to the step of laying the paving pedestals.
On a rough ground
1/ Tools and materials needed for ground preparation
- A chalk line
- A spirit level
- A shovel
- A tape measure
- A mason's ground rule
- A geotextile film
- Crushed gravel
- Roller compactor
2/ How to prepare the ground
This preparation is simple and doesn't cost much:
- Delimit the surface of your terrace and dig the ground 15 cm deep
- Add a geotextile felt to prevent the growth of weeds between your slabs;
- Cover with crushed gravel 0/60 mm over 10 cm then 0/4 mm over the top 5 cm;
- Compact everything to obtain a flat and loose surface. Be sure to maintain a slight slope of 1.5% to promote the evacuation of rainwater.
Steps for laying a paving terrace on YEED pedestals (Ex Rinno)
1/ Tools and materials needed to lay your paving terrace on pedestals
- A tape measure
- A spirit level
- A mason's box screed
- A water saw
- YEED slab pedestals (Ex Rinno)
- Your paving covering
2/ Accessories for laying a paving terrace on a YEED pedestal (Ex Rinno)
Few accessories are required for laying a tiled terrace on a fixed 8 mm pedestal. These are mainly accessories that make it easier to install or use your paving terrace.
- A paving carrier to lift and move tiling tiles without hurting your back;
- Anti-noise shims to limit vibrations and offer you optimal acoustic comfort;
- Insulation pads.
3/ Arrange the pedestals on the ground
Start along a wall (or at the edge of the surface to be covered). Space the tiled terrace pedestals the width of your slabs. Repeat this operation until you have a complete grid of your terrace.
4/ Lay the pavings
Now that your floor is squared with 8 mm fixed paving pedestals, all you have to do is lay your porcelain stoneware tiling, your natural stone, concrete paving or wooden grating. To do this, start with a corner and gently place your paving on the head of the pedestal.
Continue by laying the tiles on all the paving pedestals located against the wall.
Stop before the last row of studs.
Continue on the second row and so on.
It may be necessary to cut the last tiles across the width. In this case, use a wet saw with a diamond blade suitable for tiling.
Technical characteristics
- Complies with DTU 43.1
- Frost and UV resistant
- Supports up to 1 ton of load
- 8mm fixed height
- Base diameter: 120 mm
- Spacers: 18 mm / Thickness: 4 mm
- Recycled and recyclable product
- Made in France
The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!
step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.
step Once the installation is level, place the tiles on the head of the pedestals.
step 3Then adjust the height of the pedestals and check everything one last time with a spirit level.
step 4Finally, make the cuts to close the terrace laterally.
Model :

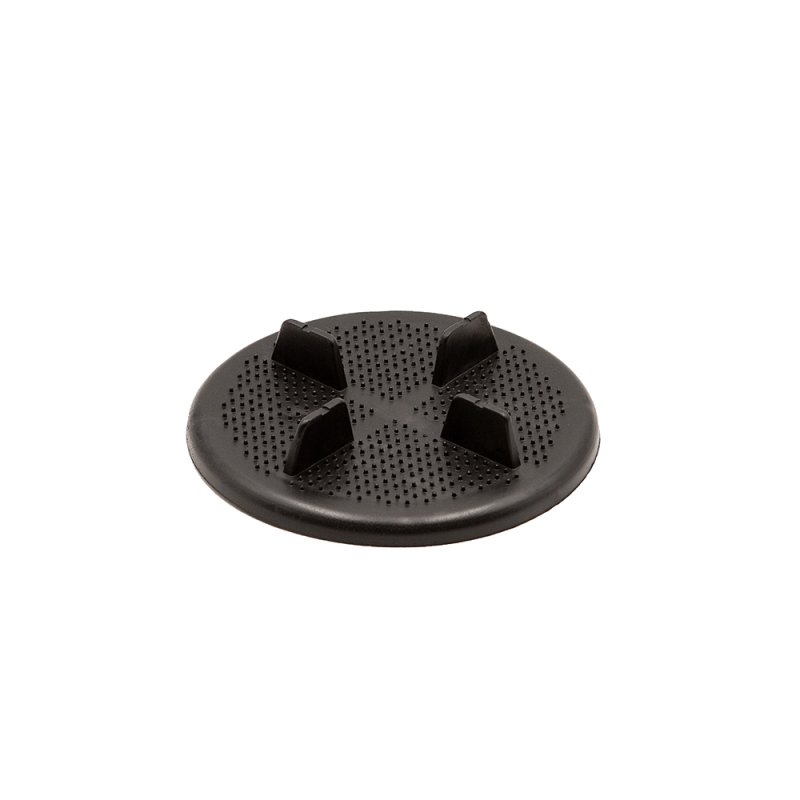

Fixed slab terrace pedestal 8 mm - special EPDM - YEED (ex Rinno)
| Color | Black |
|---|---|
| Material | Rubber |
| Warranty | 10 years warranty |
| Origin | Manufactured in France |
| Conformity | In compliance with the DTU 43.1 and 51.4 |
| Resistance | Resisting the acid and basic solutions, the atmospheric agents, the temperatures between -40°C and 60°C |
| Load | Resisting the test of crushing with load superior in 1 ton |
| Brand | YEED (Ex Rinno) |
| Type | Fixed |
| Adjustable height | Fix 0.31 in |
| Compatibility with extension | No |
| SH Code | 39259010 |
| Country of Origin | UE |
